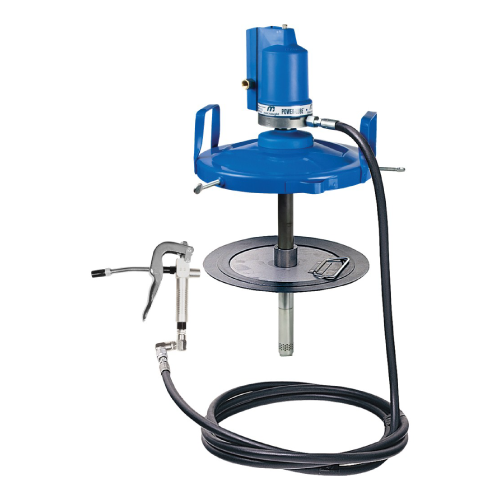

P3 Powerlube 20kg Grease Kit – Macnaught

P3 Powerlube 20kg Grease Kit - Macnaught

The POWERLUBE™ is a premium quality, reliable, 50:1 air-operated pneumatic greasing system that is excellent for high volume grease users that have many applications and require continuous high pressure greasing. This portable grease dispensing system is suitable for 20kg pails and is equipped with a low air consumption motor that doesn’t need to be lubricated due to the use of modern polymer materials. Users will save on power and the oily mist and mess associated with air operated equipment is gone. Suitable for underground coal mine applications.

Features

  • 50:1 Ratio Grease Pump
  • Low Air Consumption – Only requires small air compressor
  • B2 Booster Gun – Boosts pressure up to 10000 psi to clear blocked grease nipples
  • 360° ZSB Swivel – Improves manoeuvrability and offer easier one-handed operation
  • Adjustable Collar System – To accommodate different height grease containers (15 – 20 kg) grease pails
  • Rubber-Edged Follower Plate – Wipes container clean & prevents air pockets & contamination
  • Grease Strainer – Delivers clean contamination free grease

Technical Specifications

  • Model: P3-01C
  • Pump Ratio 50:1
  • Flow Rates up to 460g/min
  • Maximum air pressure: 150 psi
  • Minimum air pressure: 60 psi
  • Maximum pump output pressure: 51700 kPa (7500 psi)
  • Maximum gun output pressure: 68900 kPa (10000 psi)
  • Compatible with 20kg (or similar size) pails
  • 4m x 6mm ID delivery hose
  • Suitable for greases up to and including NLGI no2
  • B2 Booster gun boosts line pressure up to 10000 psi
  • Air inlet: 1/4″ NPT (F)
  • Pump outlet: 1/4″ NPT (F)
  • Minimum compressor size: 0.08m³/min (3cfm)
