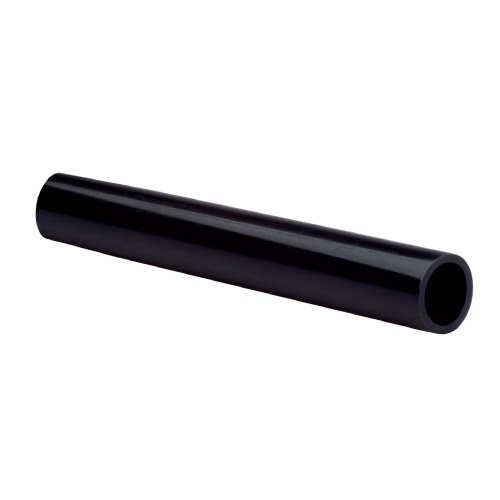

Nylon Tubing – Flexible / Semi-Rigid – Barfell
Nylon pressure tubing is made from premium quality raw materials and precision engineered to ensure simplicity of connections with fittings and adaptors.
Wall: Available in Black and Natural (Translucent)
Application: Pneumatic and hydraulic control systems, fuel tubing, air and gas tubing. Also ideal for handling weed killing solutions, refrigerants, fresh and sea water, fumigants, paints and lacquers and many other products.
Flexible Metric
| Nominal OD | Nominal Wall Thickness | Working Press. (at 20°C) | Weight | |
| mm | mm | Mpa | P.S.I | grams/m |
| 4mm | 0.70 | 2.0 | 290 | 7.6 |
| 5mm | 0.85 | 2.0 | 290 | 11.8 |
| 6mm | 1.0 | 2.0 | 290 | 16.6 |
| 8mm | 1.4 | 2.0 | 290 | 30.9 |
| 10mm | 1.7 | 2.0 | 290 | 47.2 |
| 12mm | 2.0 | 2.0 | 290 | 66.8 |
Flexible Imperial
| Nominal OD | Nominal Wall Thickness | Working Press. (at 20°C) | Weight | |
| in | in | Mpa | P.S.I | grams/m |
| 1/8″ | 0.019″ | 1.7 | 250 | 4.4 |
| 3/16″ | 0.031″ | 1.7 | 250 | 10 |
| 1/4″ | 0.040″ | 1.7 | 250 | 17.7 |
| 5/16″ | 0.049″ | 1.7 | 250 | 26.9 |
| 3/8″ | 0.058″ | 1.7 | 250 | 39.7 |
| 1/2″ | 0.076″ | 1.7 | 250 | 68.6 |
| 5/8″ | 0.065″ | 0.9 | 125 | 80.4 |
| 3/4″ | 0.080″ | 0.9 | 125 | 117.1 |
Semi Rigid Imperial – Black Only
| Nominal OD | Nominal Wall Thickness | Working Press. (at 20°C) | Weight | |
| in | in | Mpa | P.S.I | grams/m |
| 3/16″ | 0.039″ | 4.3 | 625 | 12.5 |
| 1/4″ | 0.050″ | 4.3 | 625 | 21.6 |
| 5/16″ | 0.062″ | 4.3 | 625 | 33.8 |
| 3/8″ | 0.074″ | 4.3 | 625 | 48.5 |
| 1/2″ | 0.097″ | 4.3 | 625 | 87.1 |
