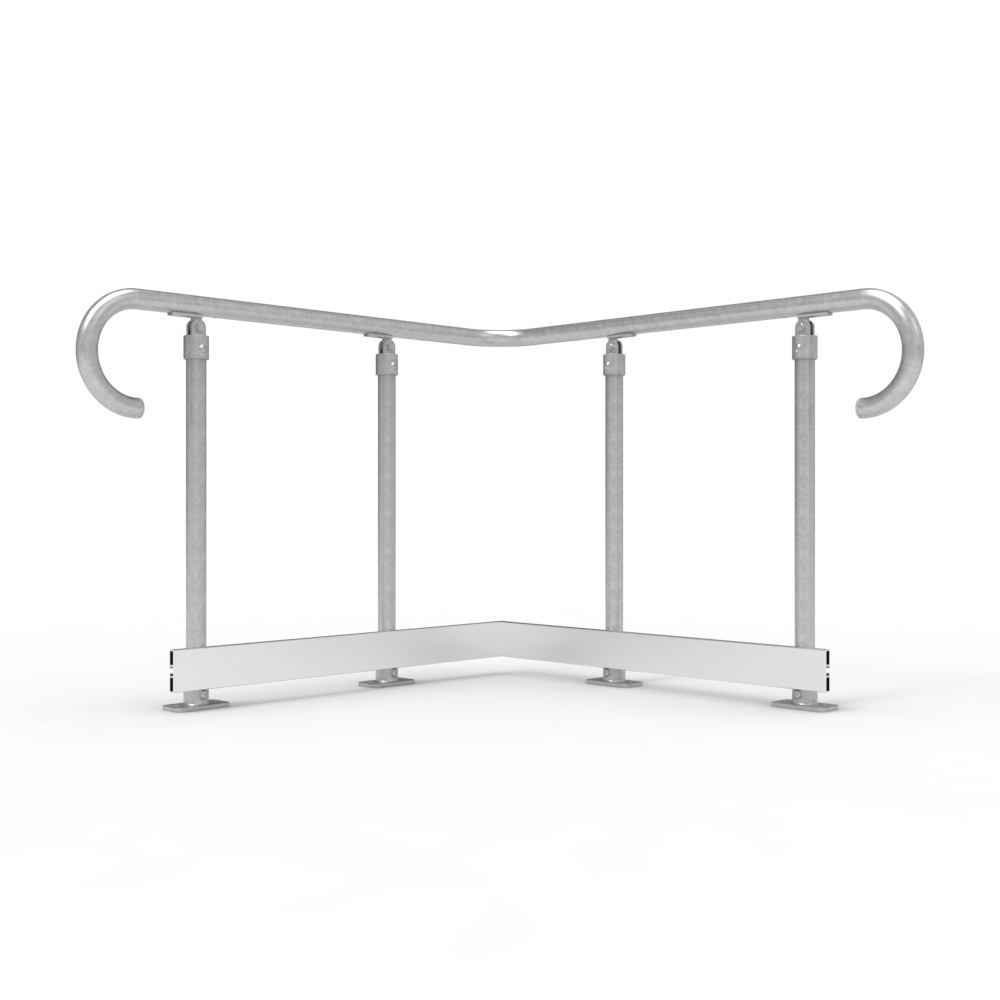

NoWeld Modular DDA Handrail
- Modular DDA handrail system that can be configured into multiple applications
- Components, railing, and fixings are easily assembled on-site with an impact drill or hex key
- Suitable to comply with Australian Standards AS 1428.1:2021
- Suitable for indoor and outdoor use
- Galvanised or Galvanised & Powder Coated Yellow
- Toe board is available in two sizes

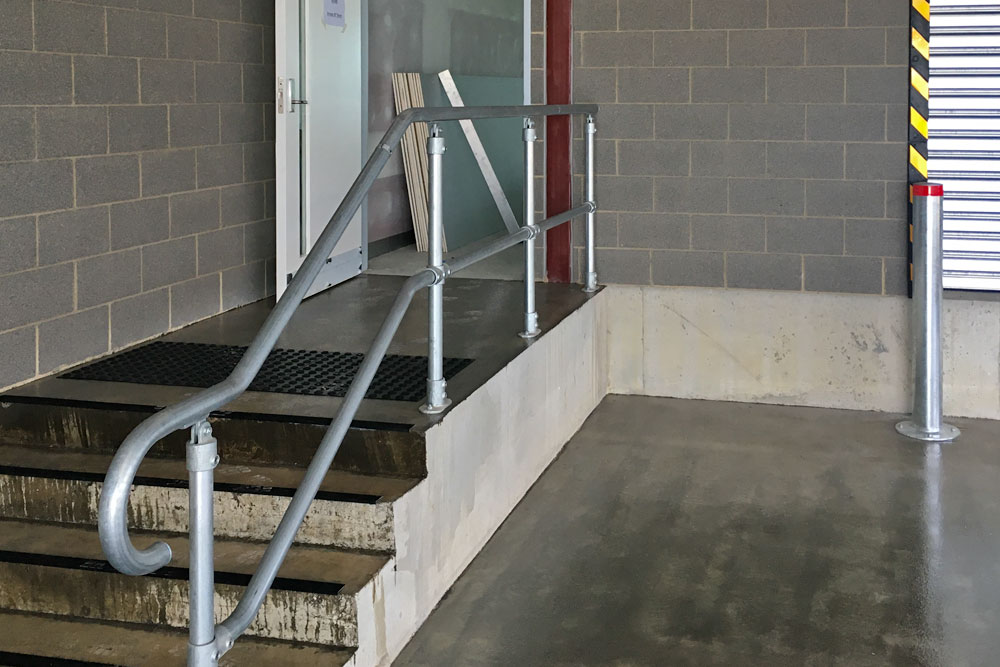

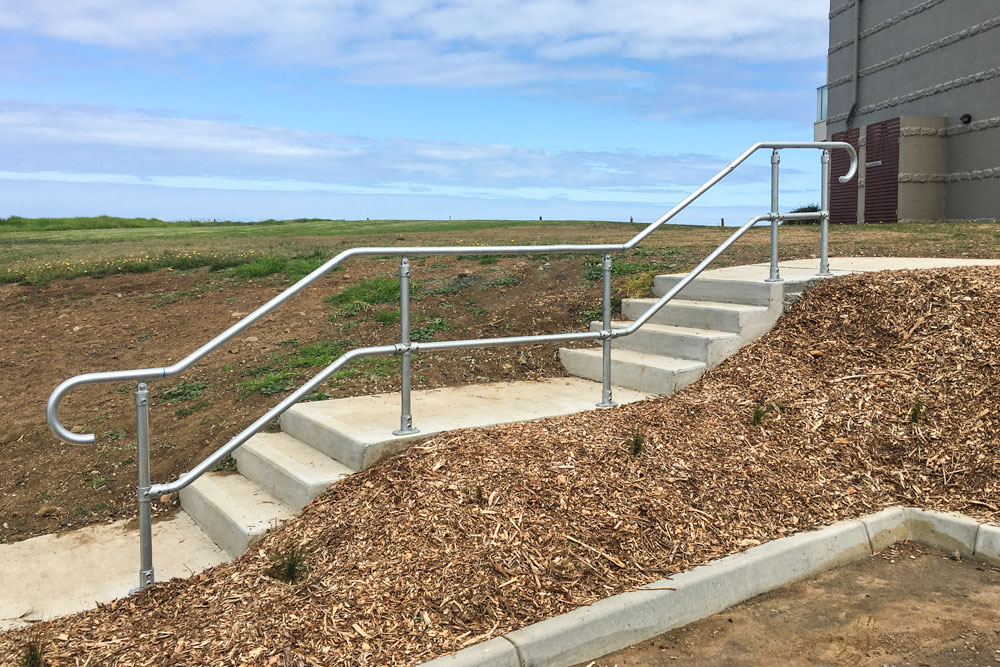

NoWeld modular DDA handrail system supports accessibility
NoWeld is a strong, versatile, and easy-to-install modular handrail system. With a wide variety of attachable components, NoWeld offers multi-directional runs, straight runs, 90° corners, end posts, and removable posts. NoWeld also has a variety of angled fixture components designed for use on ramps and staircases.
NoWeld 48mm O.D. (40NB) handrail is sold in various lengths. When smaller sections of railing are required, simply cut down to size.
No welding means no ‘hot permits’ or excessive equipment is required at the time of installation. No threading or bolting means no special tools or skills are required to install.
The NoWeld modular handrail system is solid and reliable, with sturdy mounting options. It complies with Australian Standards for Access and Mobility Handrail (AS 1428.1:2021) and helps meet DDA and NCC compliance.
| Description | Material | Finish (Railing) | Finish (Components) | Height |
| Modular DDA Handrail System | Post and Rail 48mm OD (40NB) | Galvanised or Galvanised & Powder Coated Yellow | Hot Dipped Galvanised Cast Iron | Adjustable (refer to current Australian Standard guidelines) |

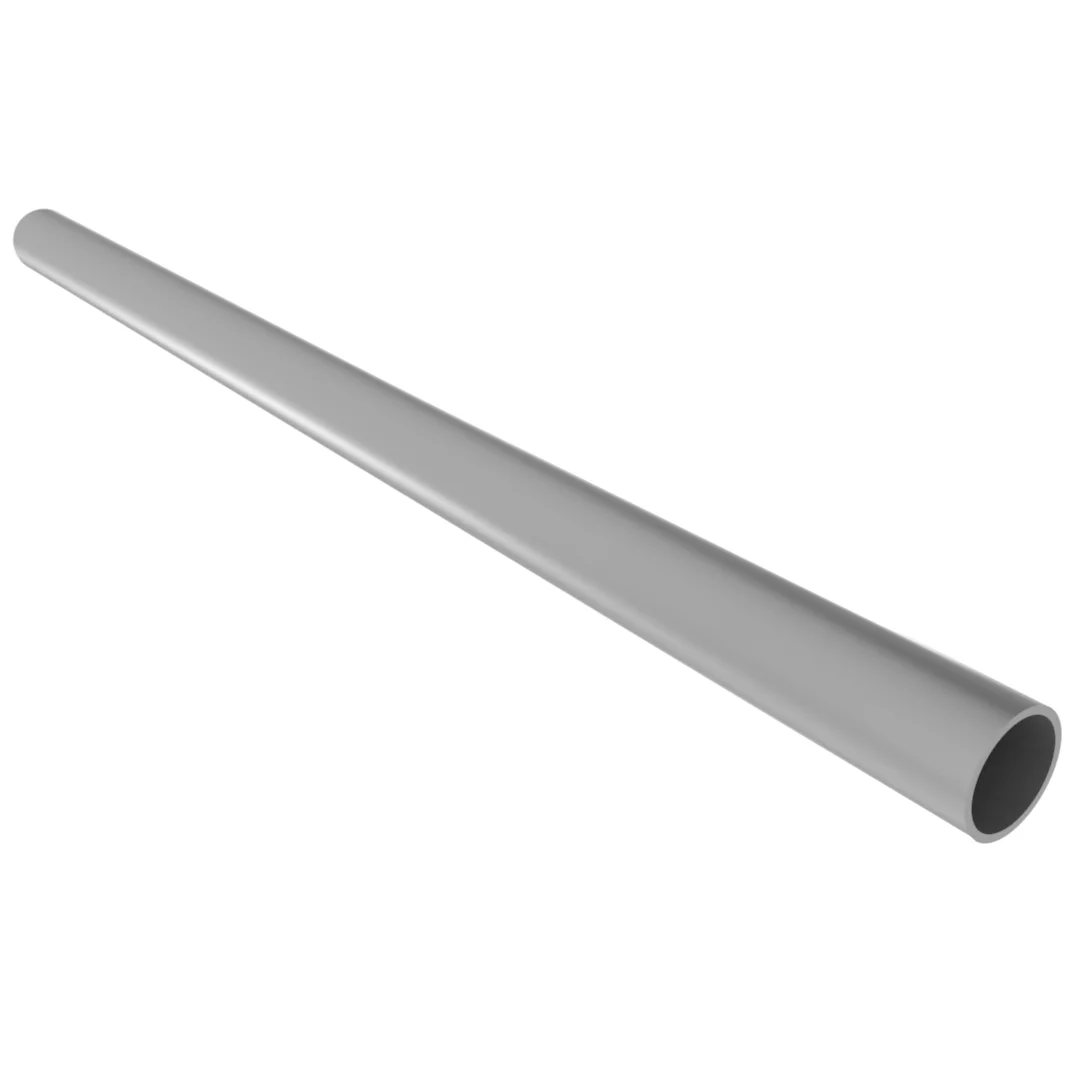

Post & Rail
| Code | Image | Description |
| NW48G-880 |  |
40NB (48.3 OD) x 2.75mm x 880mm Rail – Galvanised |

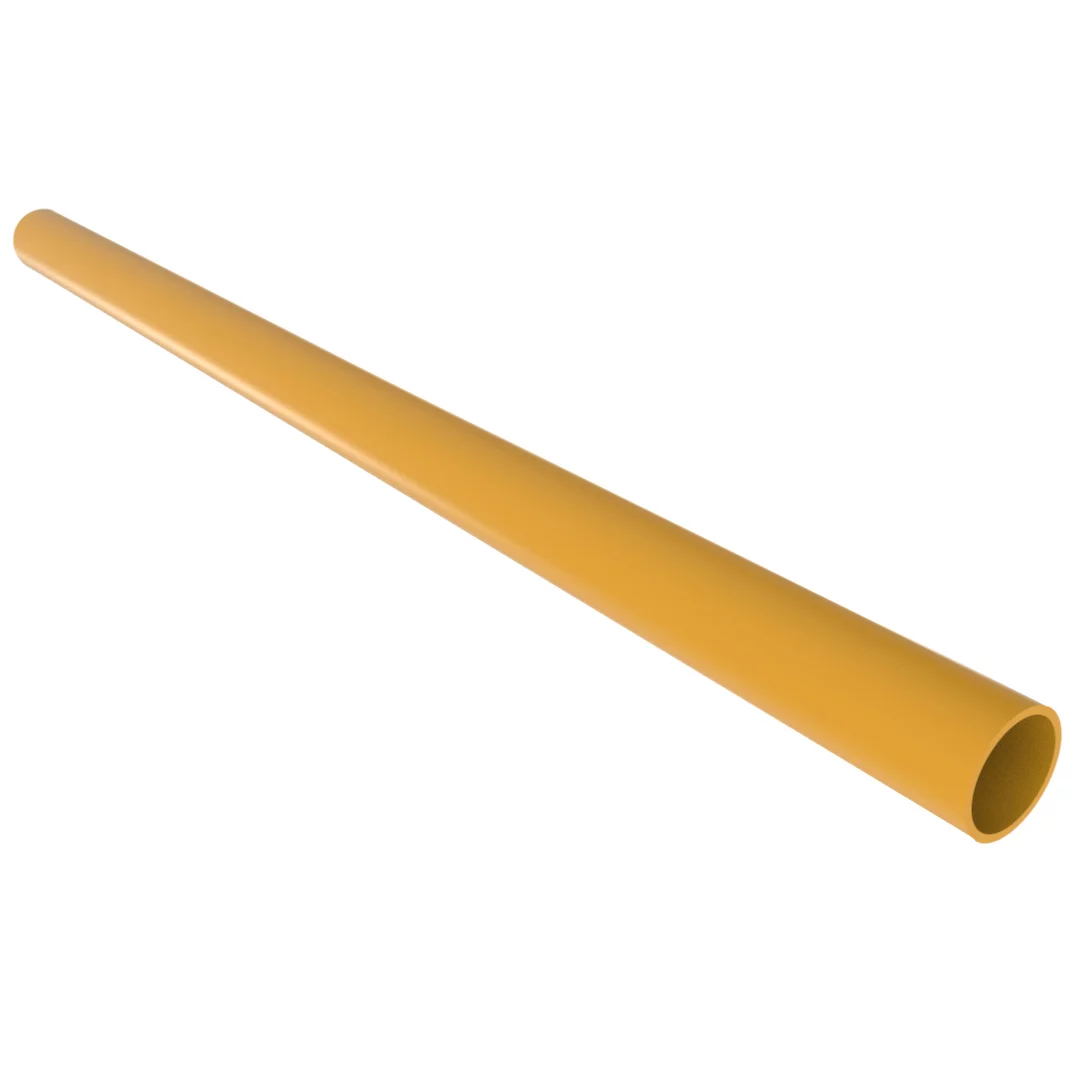

| NW48Y-1000 |  |
40NB (48.3mm OD) x 2.75mm x 1m Rail – Galvanised & Powder Coated |
| NW48G-1000 | |
40NB (48.3mm OD) x 2.75mm x 1m Rail – Galvanised |
| NW48Y-2000 | |
40NB (48.3mm OD) x 2.75mm x 2m Rail – Galvanised & Powder Coated |
| NW48G-2000 | |
40NB (48.3mm OD) x 2.75mm x 2m Rail – Galvanised |
| NW48Y-880 | |
40NB (48.3 OD) x 2.75mm x 880mm Rail – Galvanised & Powder Coated |
Post Length Suitability Chart
| Length | Surface Mount | Side Mount | Ground Socket | Below Ground | Railing |
| 880mm | Yes | – | – | – | Yes |
| 1000mm | – | Yes | Yes | – | Yes |
| 1275mm | – | – | – | Yes | Yes |
| 2000mm | – | – | – | – | Yes |
DDA Fitting / Connector
| Code | Image | Description |
| NW48G-167 |  |
NoWeld – 167 Post to Rail Adjustable 48.3mm Connector – Galvanised |

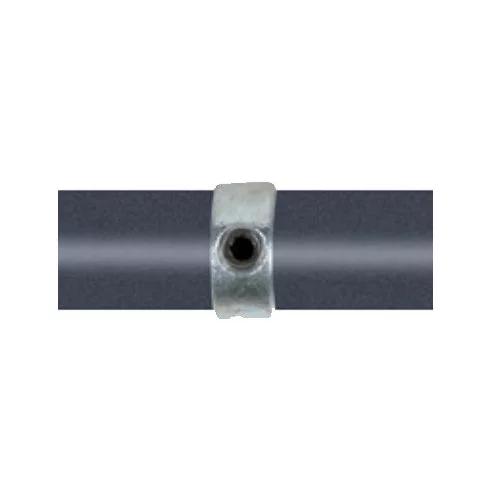

| NW48G-150 |  |
NoWeld 150 – Internal Expanding Joint to suit 48.3mm Connector – Galvanised |

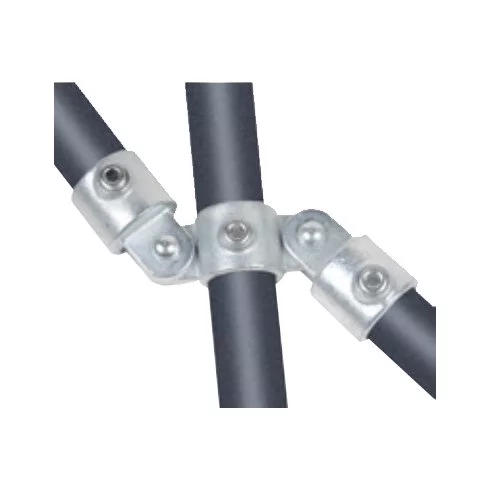

| NW48G-173 |  |

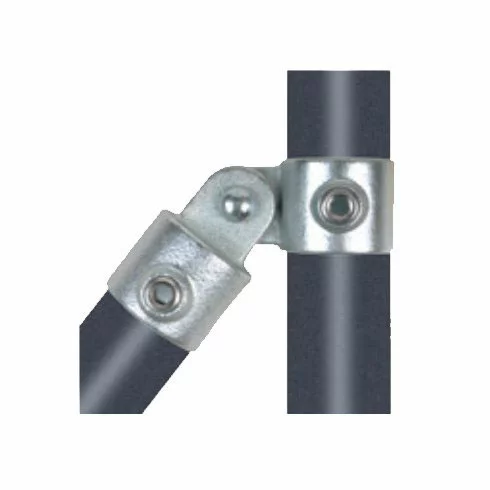

NoWeld 173 – 48.3mm Angle Connector – Galvanised |

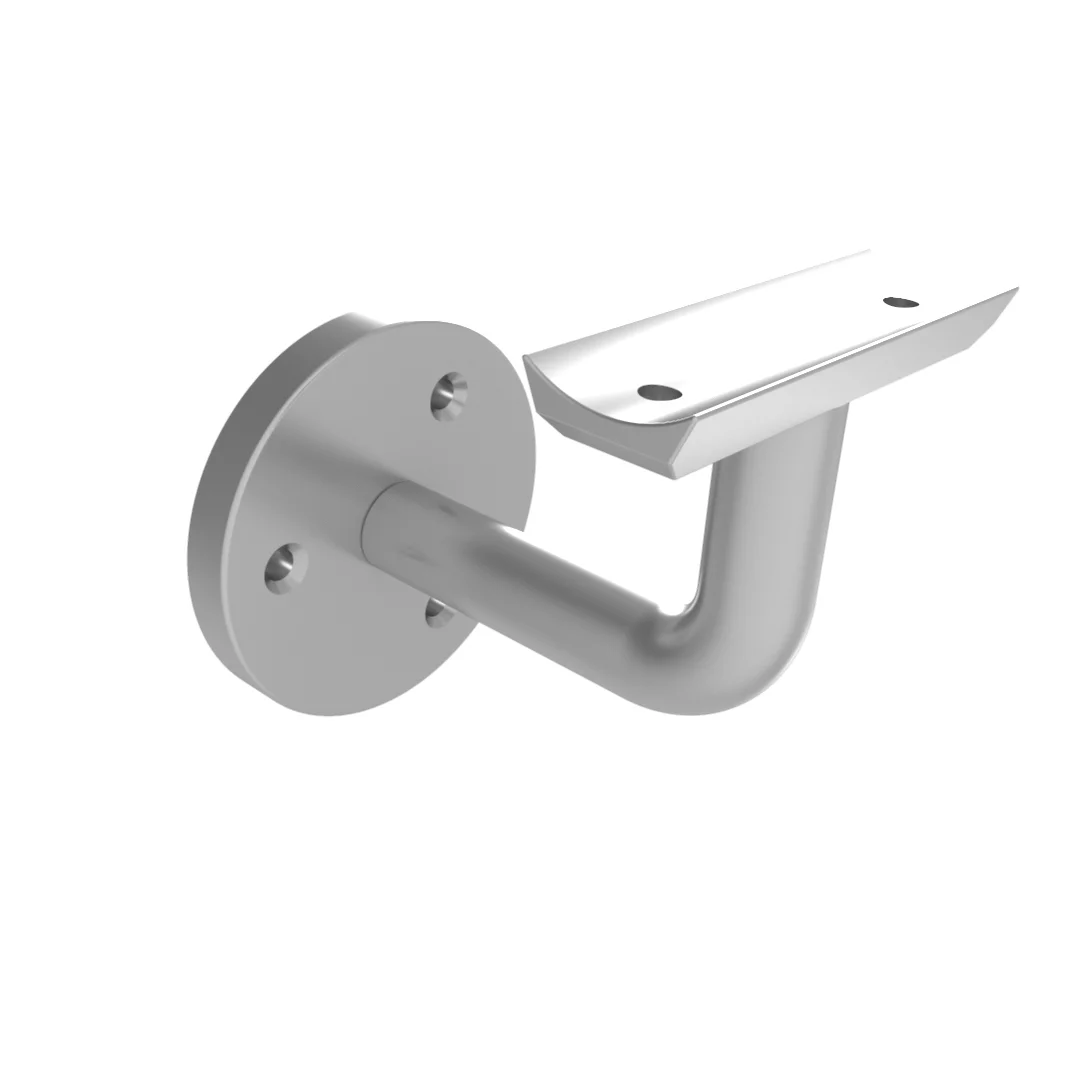

| NW48G-746 |  |
NoWeld 746 – Assist Saddle Wall Bracket 48.3mm – Galvanised |

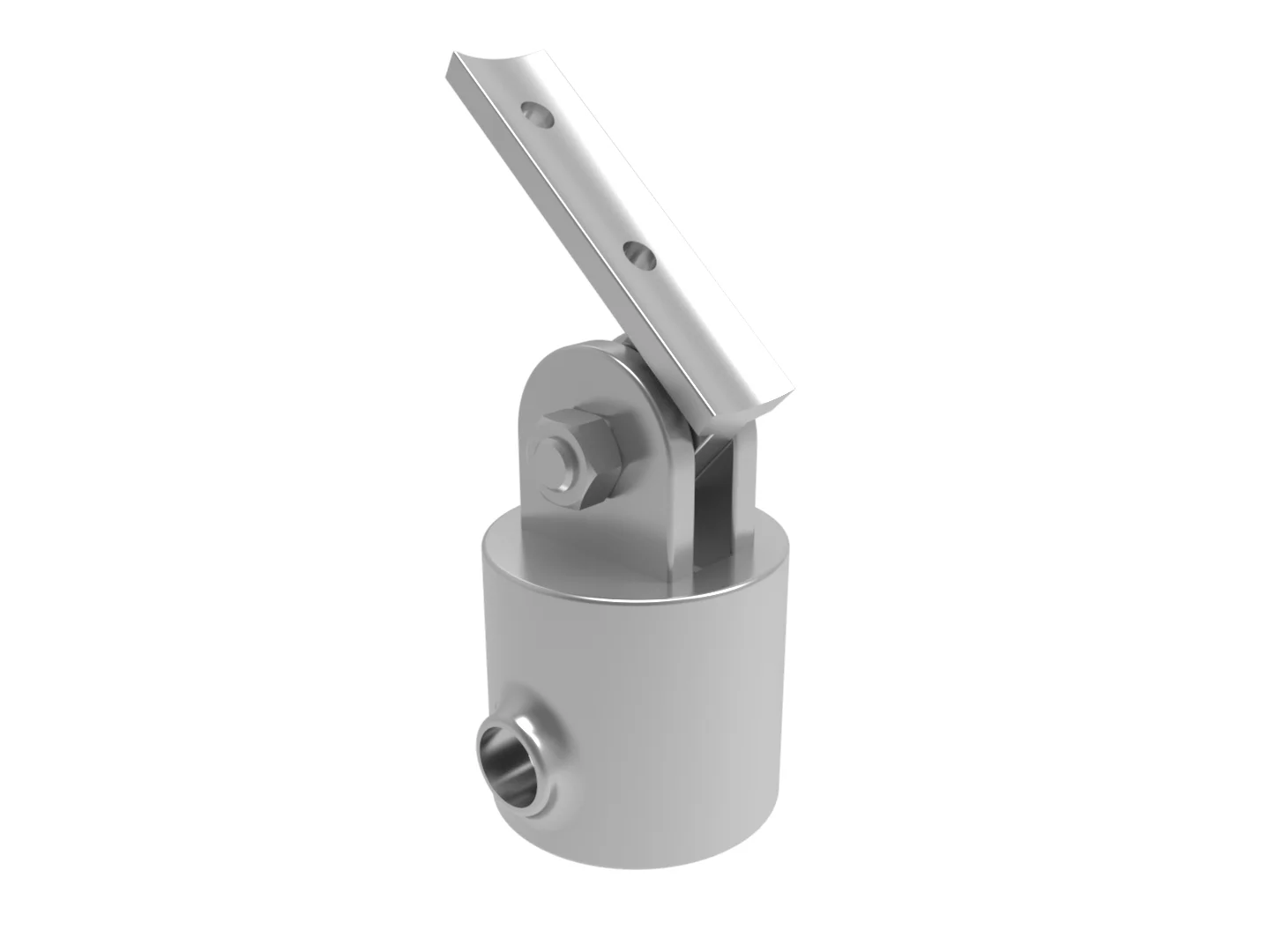

| NW48G-751 |  |
NoWeld 751 – Assist adjustable angle post saddle 48.3mm Connector – Galvanised |
DDA Post
| Code | Image | Description |

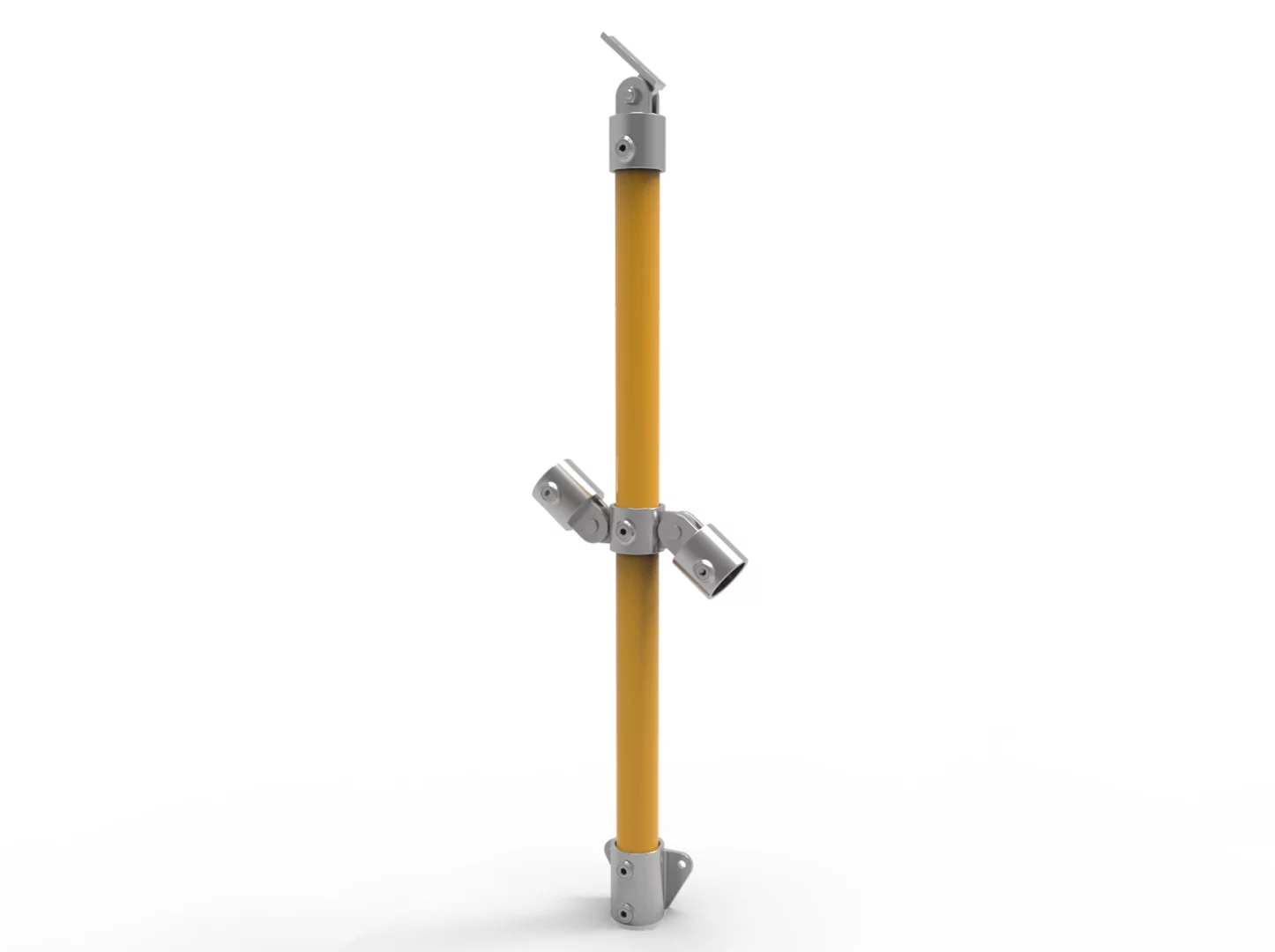

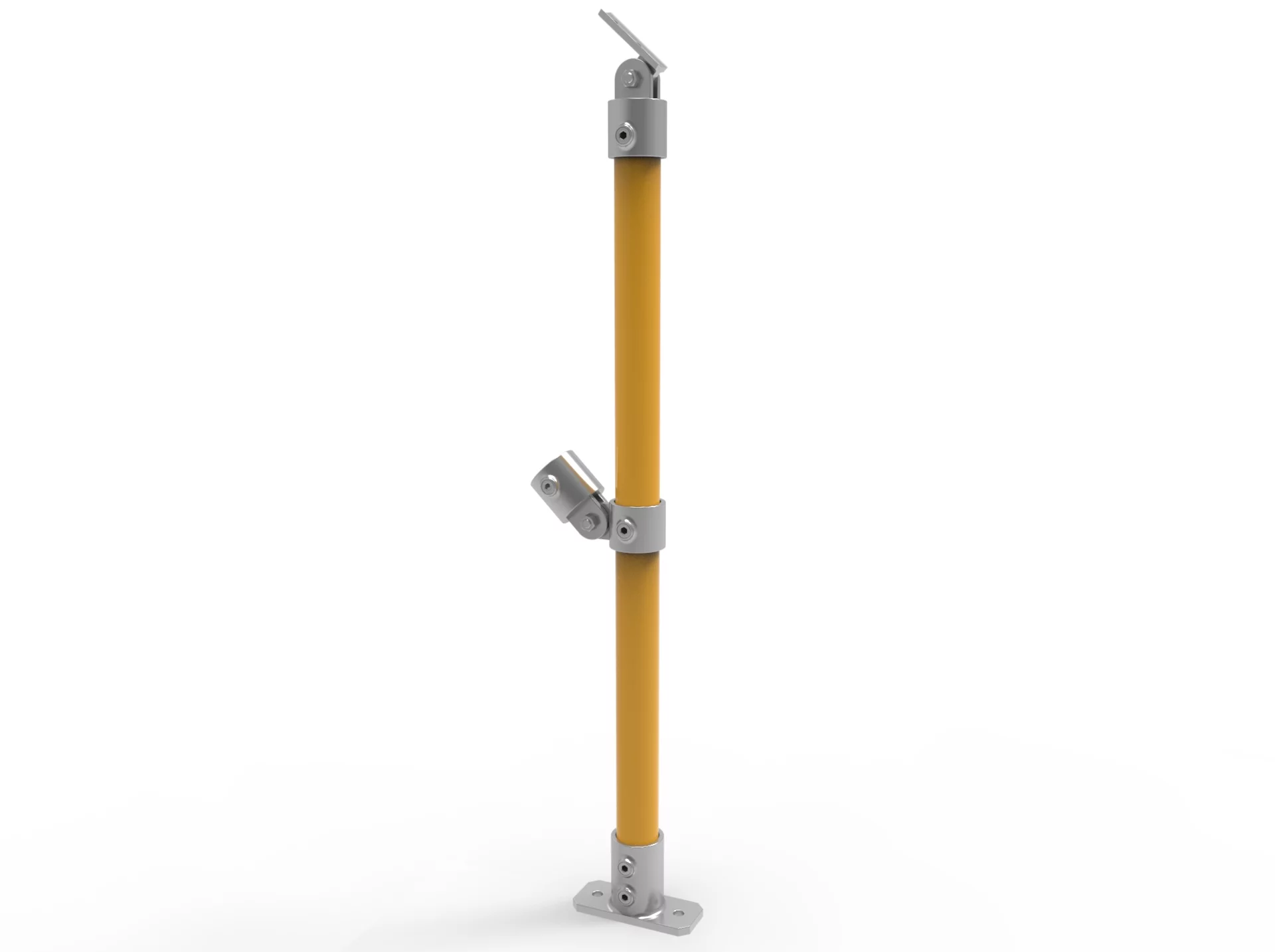

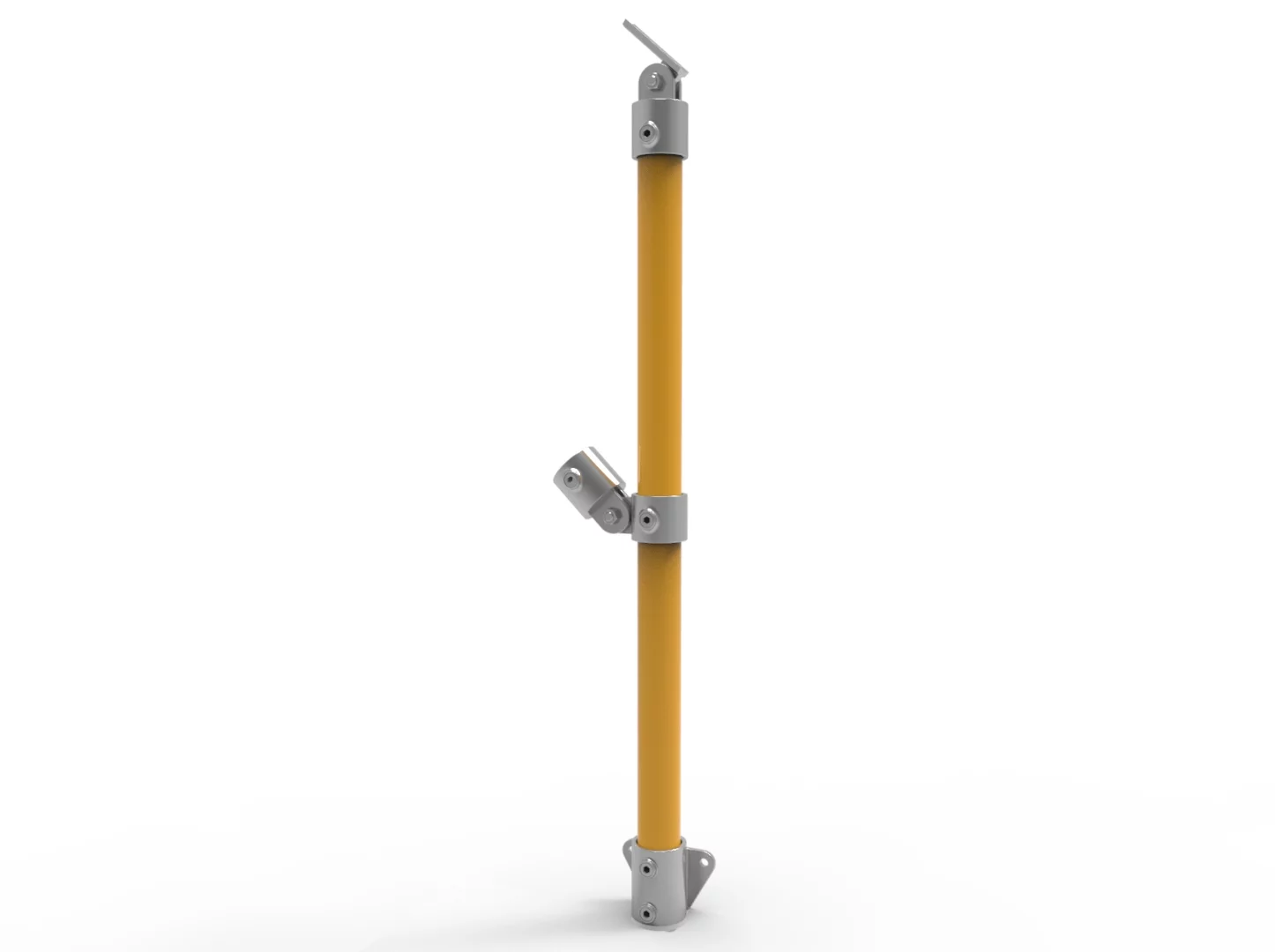

| NWAEP-SMG |  |

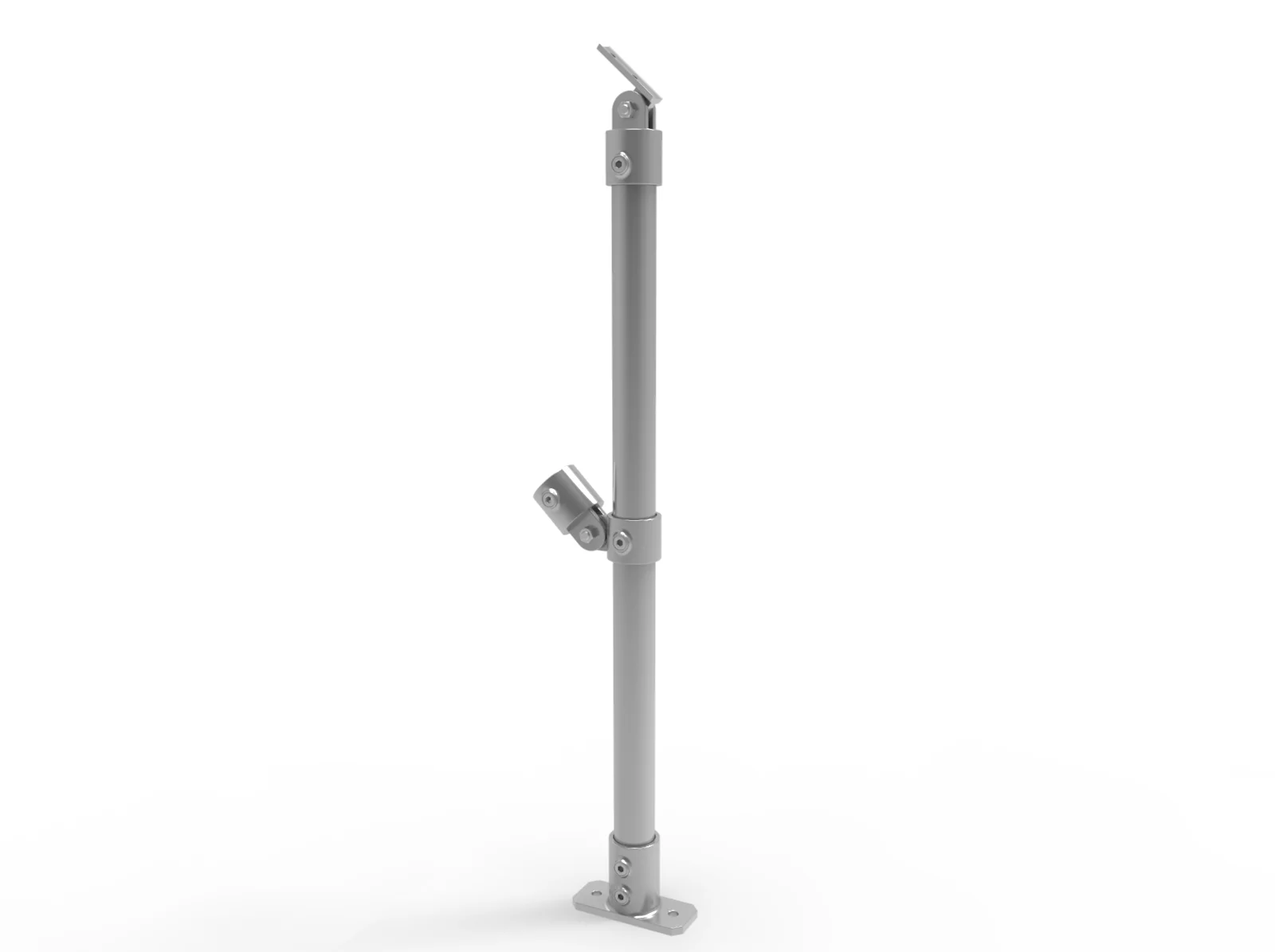

NoWeld Angled End Post Surface Mount – Galvanised |
| NWAEP-SMY |  |
NoWeld Angled End Post Surface Mount – Galvanised & Powder Coated |
| NWAEP-VMG |  |

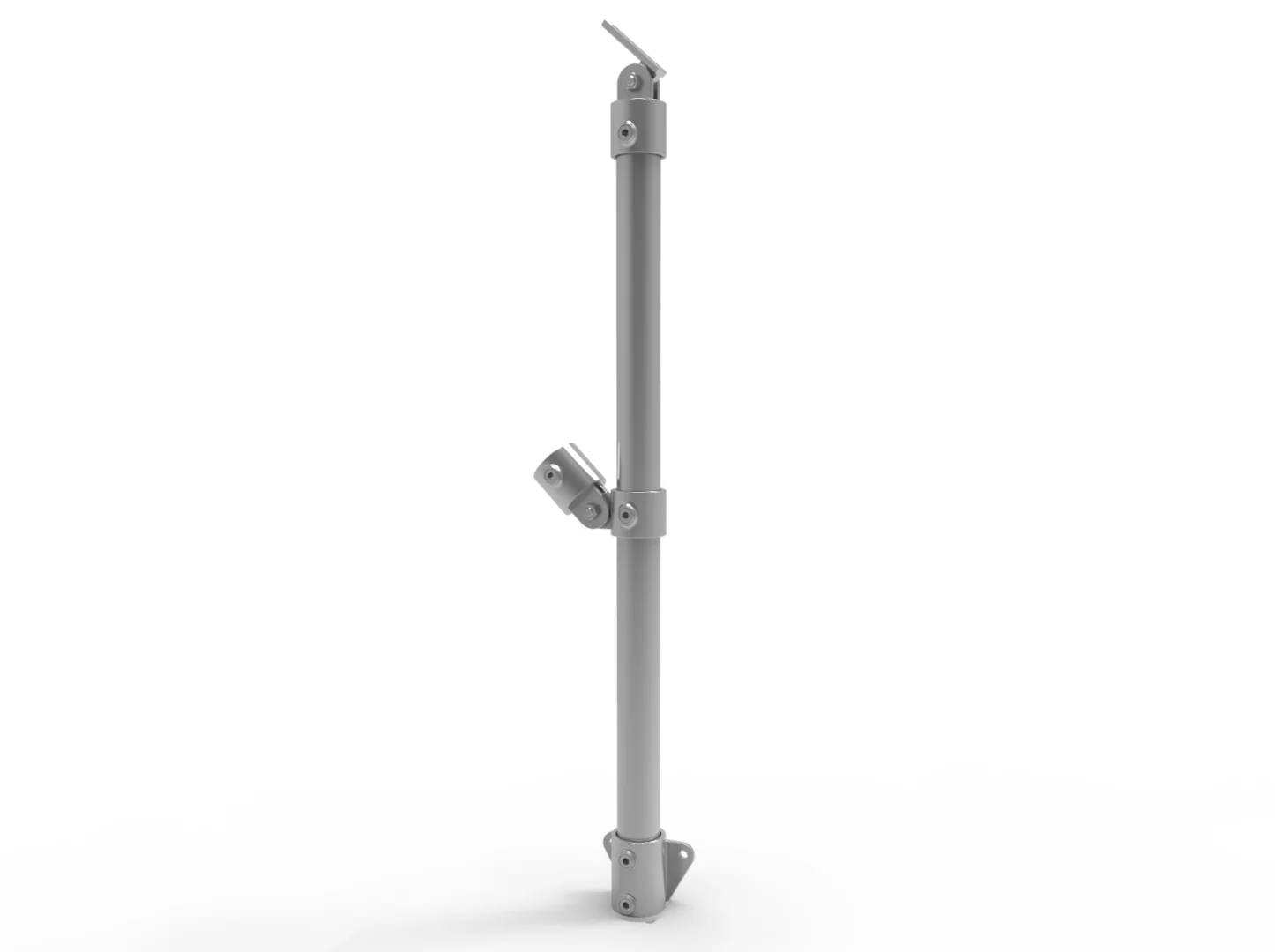

NoWeld Angled End Post Vertical Mount – Galvanised |
| NWAEP-VMY |  |
NoWeld Angled End Post Vertical Mount – Galvanised & Powder Coated |

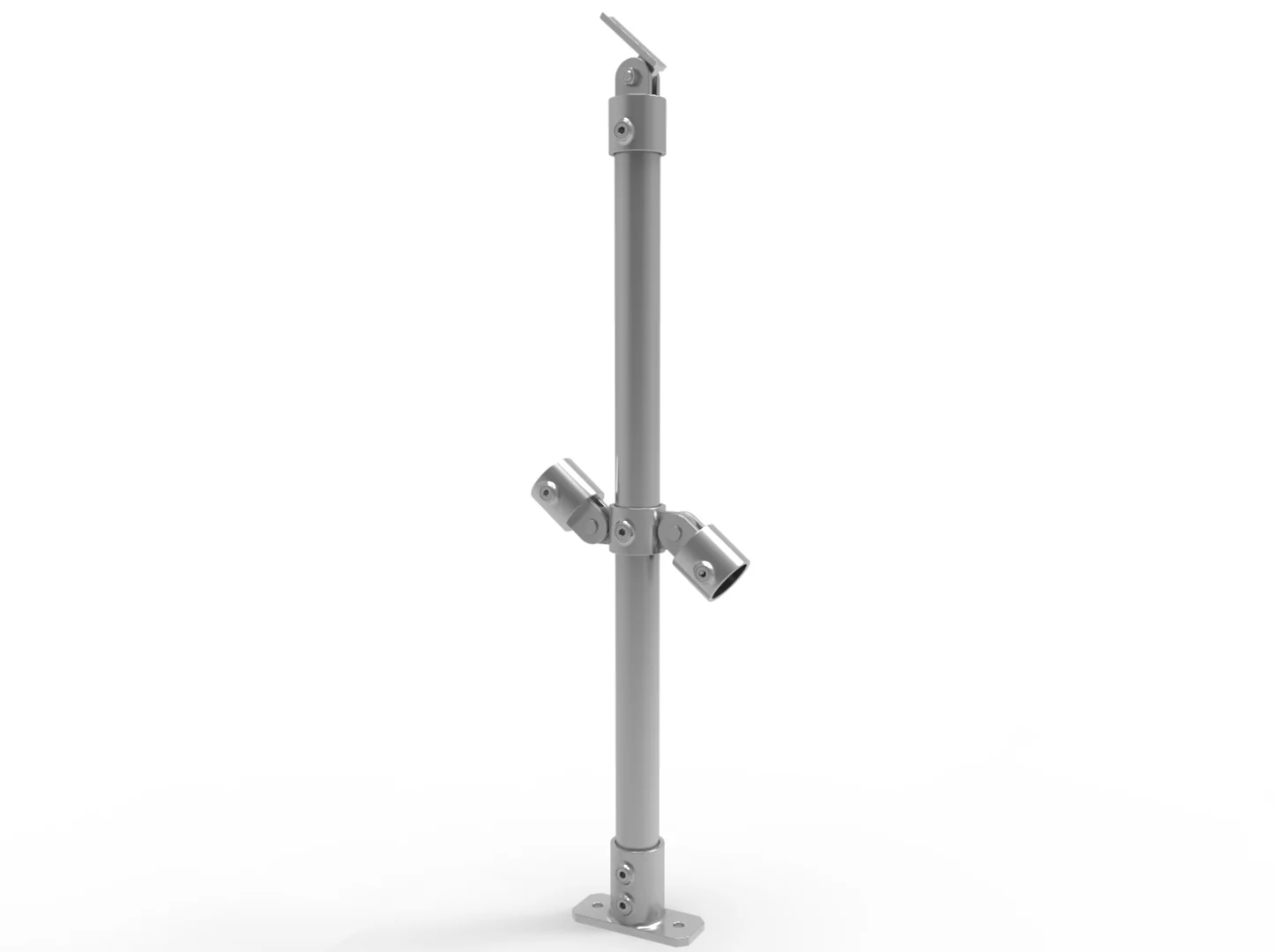

| NWATP-SMG |  |
NoWeld Angled Through Post Surface Mount – Galvanised |
| NWATP-SMY |  |

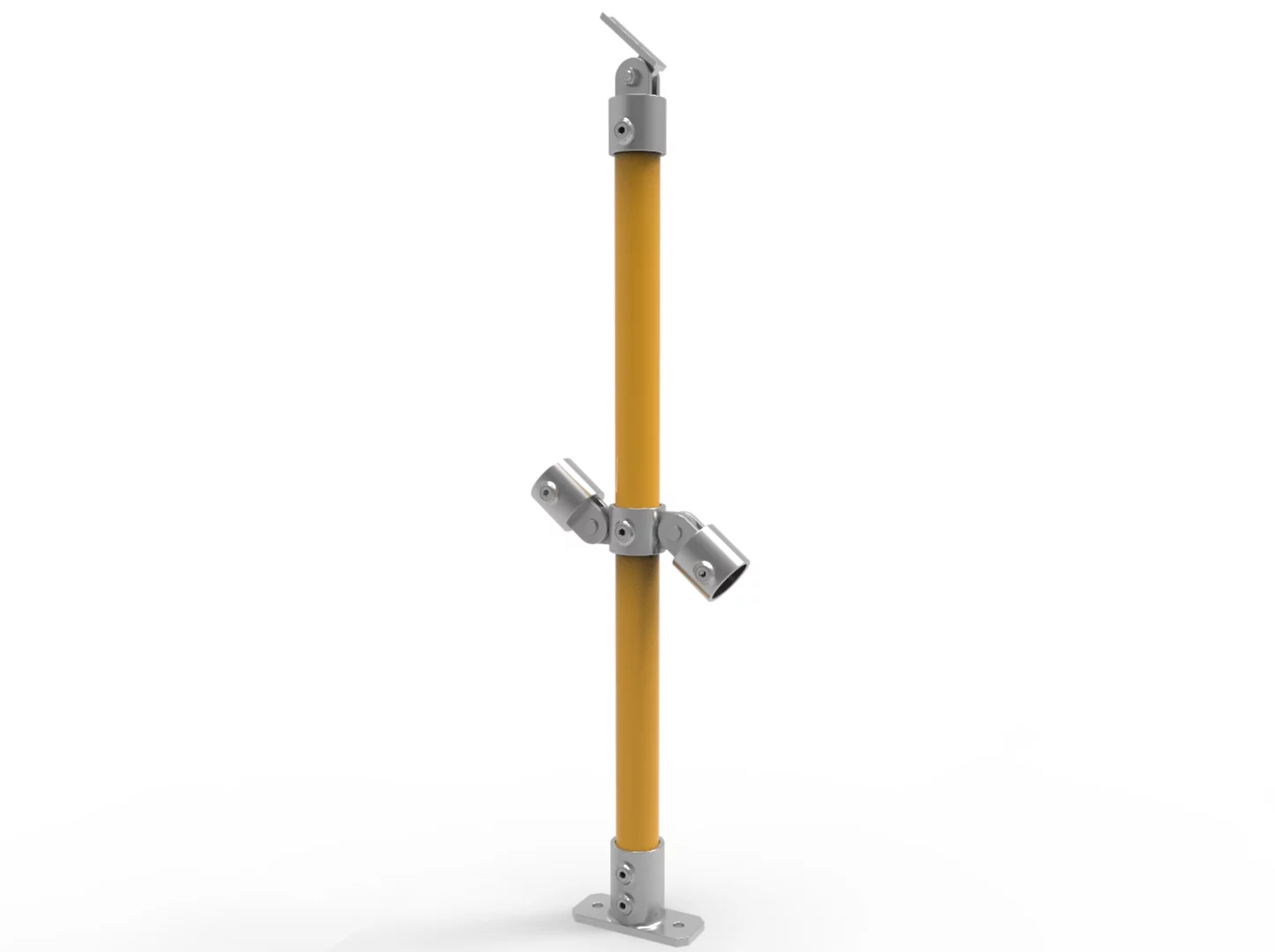

NoWeld Angled Through Post Surface Mount – Galvanised & Powder Coated |

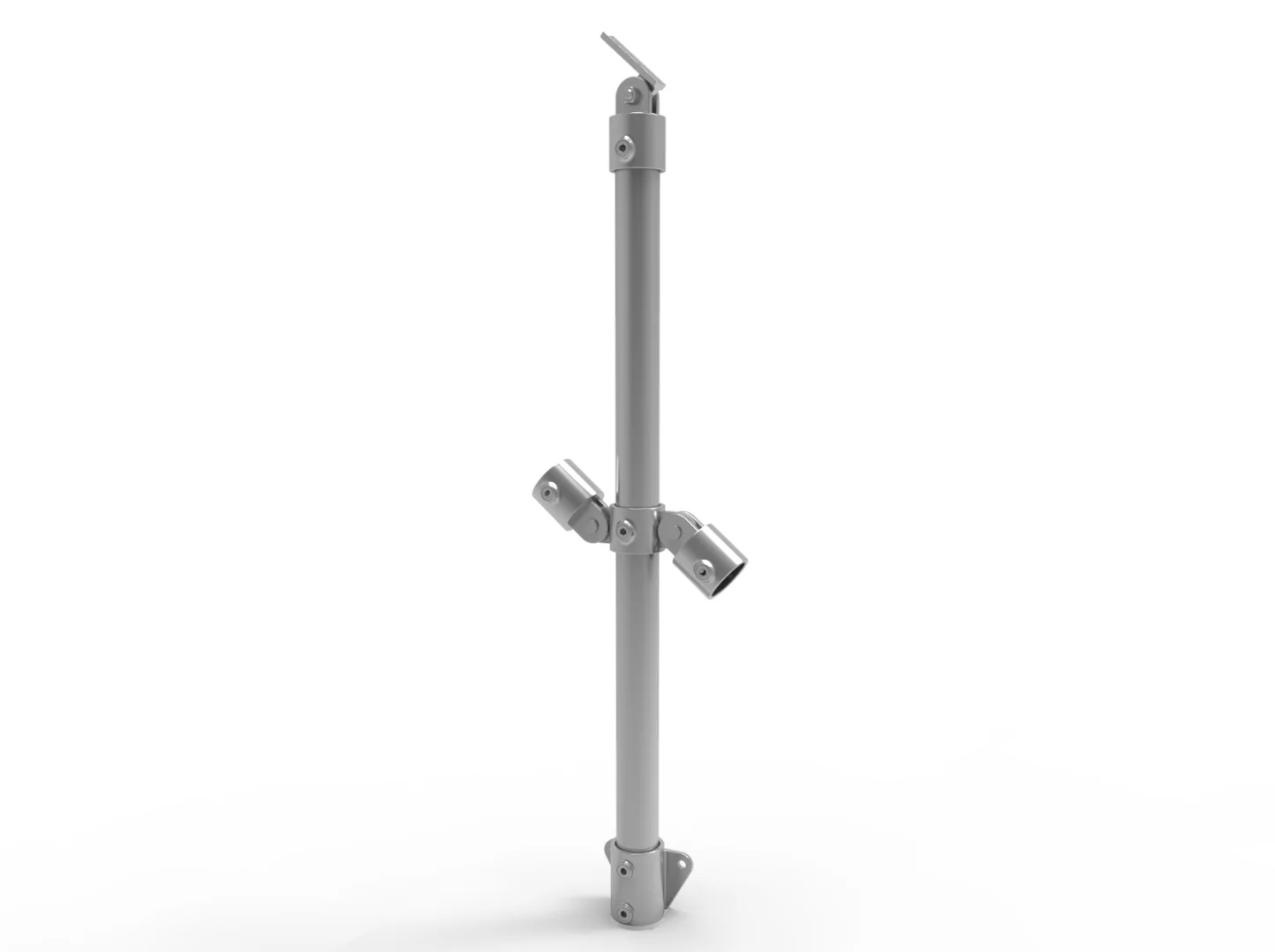

| NWATP-VMG |  |
NoWeld Angled Through Post Vertical Mount – Galvanised |
| NWATP-VMY |  |
NoWeld Angled Through Post Vertical Mount – Galvanised & Powder Coated |
Mounting Options
| Code | Image | Description |

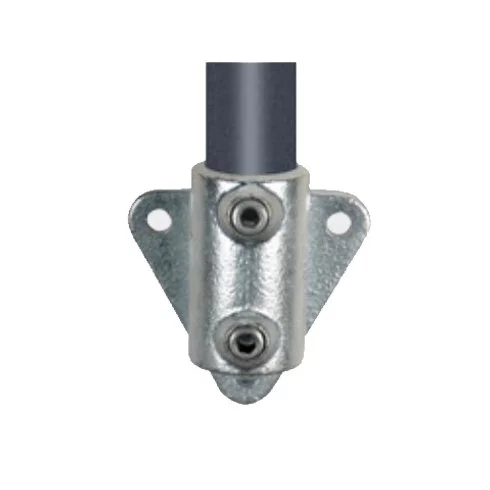

| NW48G-146 |  |

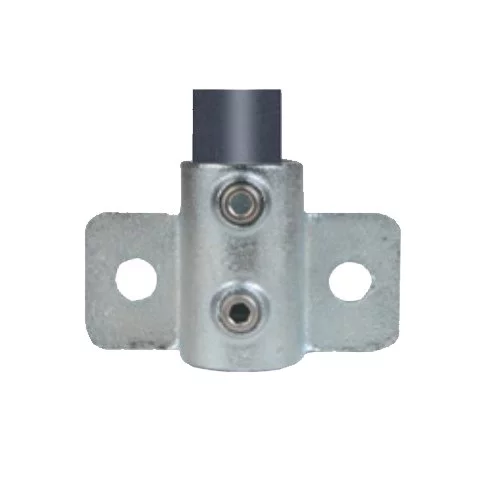

NoWeld – 146 Side Mount Flange 48.3mm Connector – Galvanised |

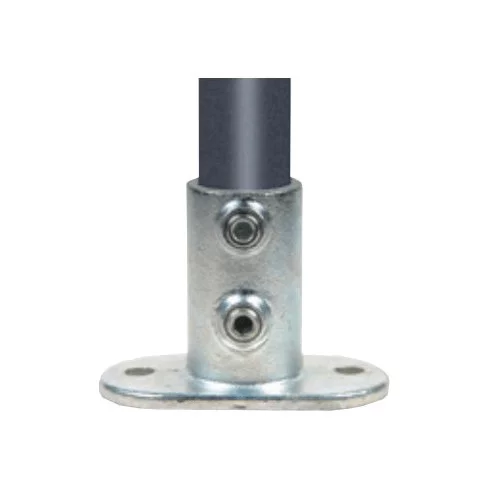

| NW48G-132 |  |
NoWeld 132 – Surface Mount Flange 48.3mm Connector – Galvanised |

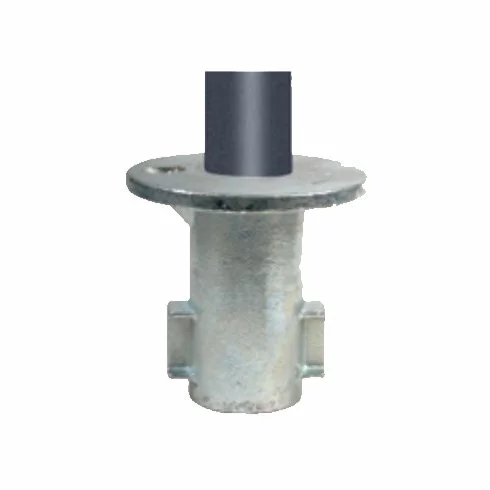

| NW48G-134 |  |
NoWeld 134 – Ground Socket – Galvanised |

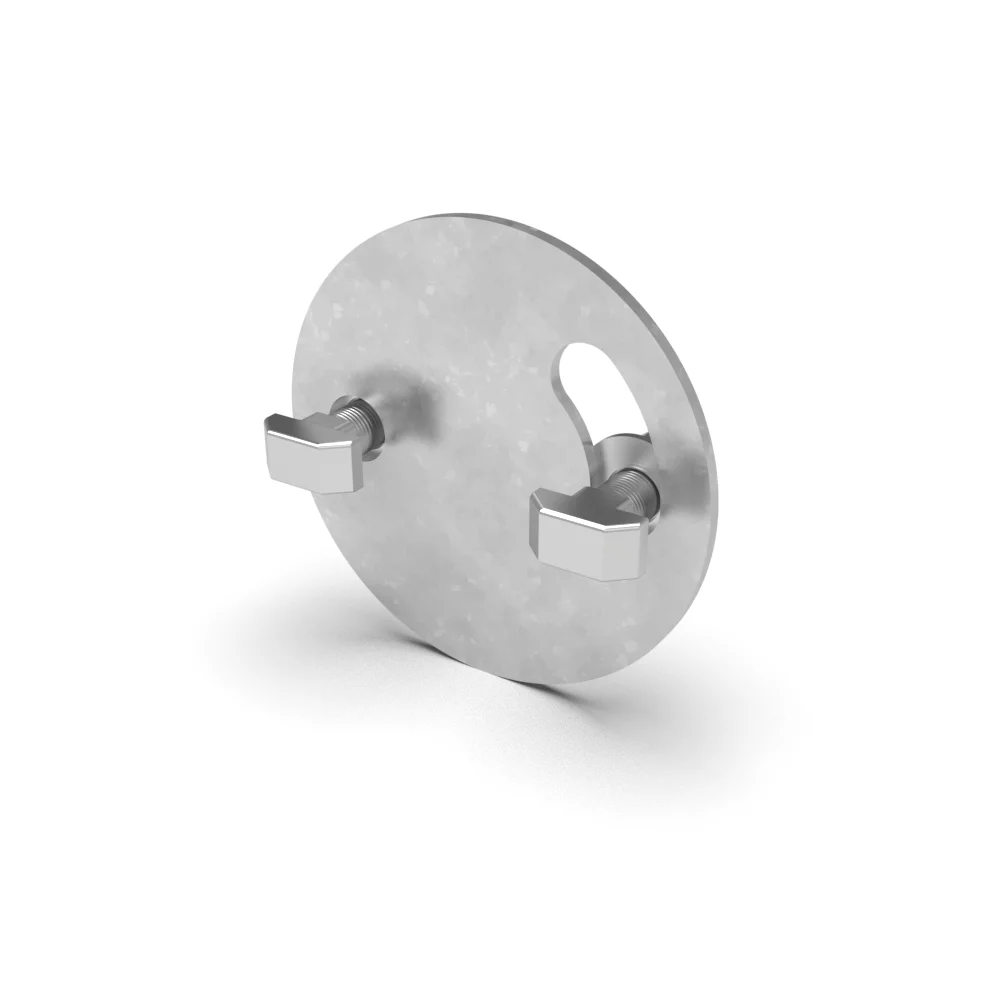

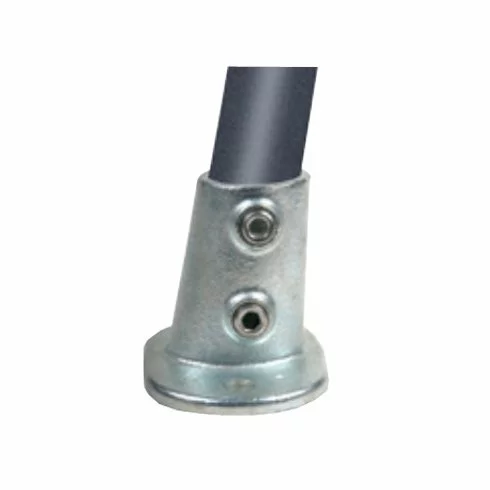

| NW48G-152 |  |
NoWeld 152 – Slope Base Flange (0° – 11°) – Galvanised |
| NW48G-246 |  |
NoWeld 246 – Side Railing Base – Galvanised |
End Treatment / Bend
| Code | Image | Description |

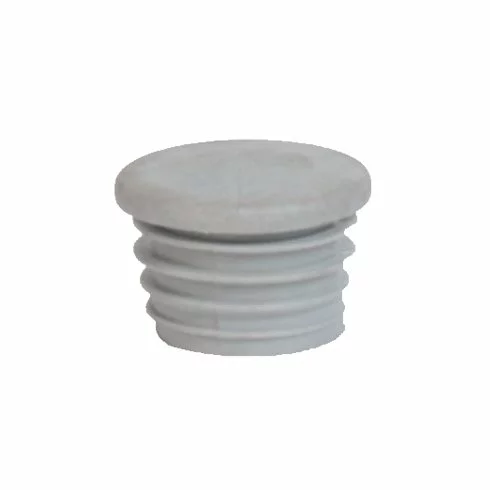

| NW48G-133 |  |
NoWeld 133 – Plastic End Cap |

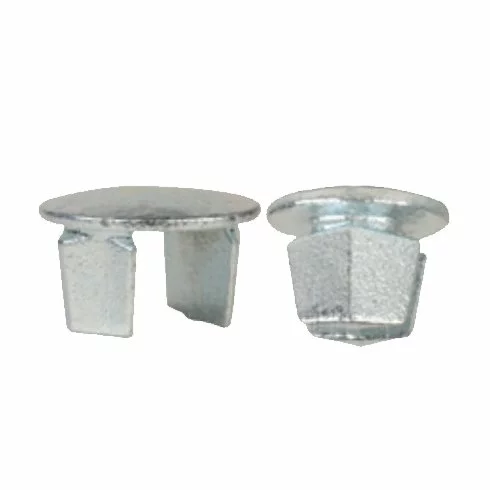

| NW48G-184 |  |
NoWeld 184 – Plug for 48.3mm – Galvanised |

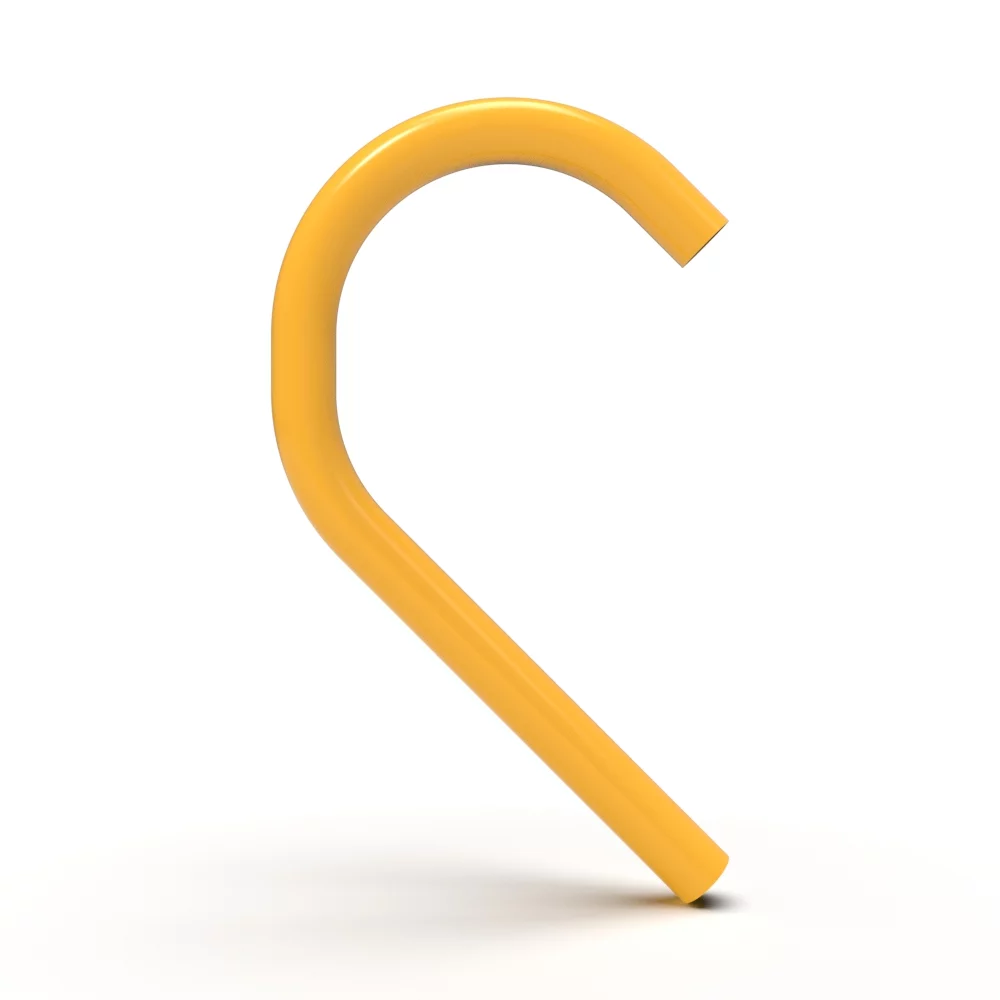

| NWCB |  |
NoWeld Closure Bend – Galvanised |
| NWCB-Y |  |
NoWeld Closure Bend – Galvanised & Powder Coated |
| NWCB-30 |  |
NoWeld Closure Bend 30 degree – Galvanised |
| NWCB-30-Y |  |
NoWeld Closure Bend 30 degree – Galvanised & Powder Coated |

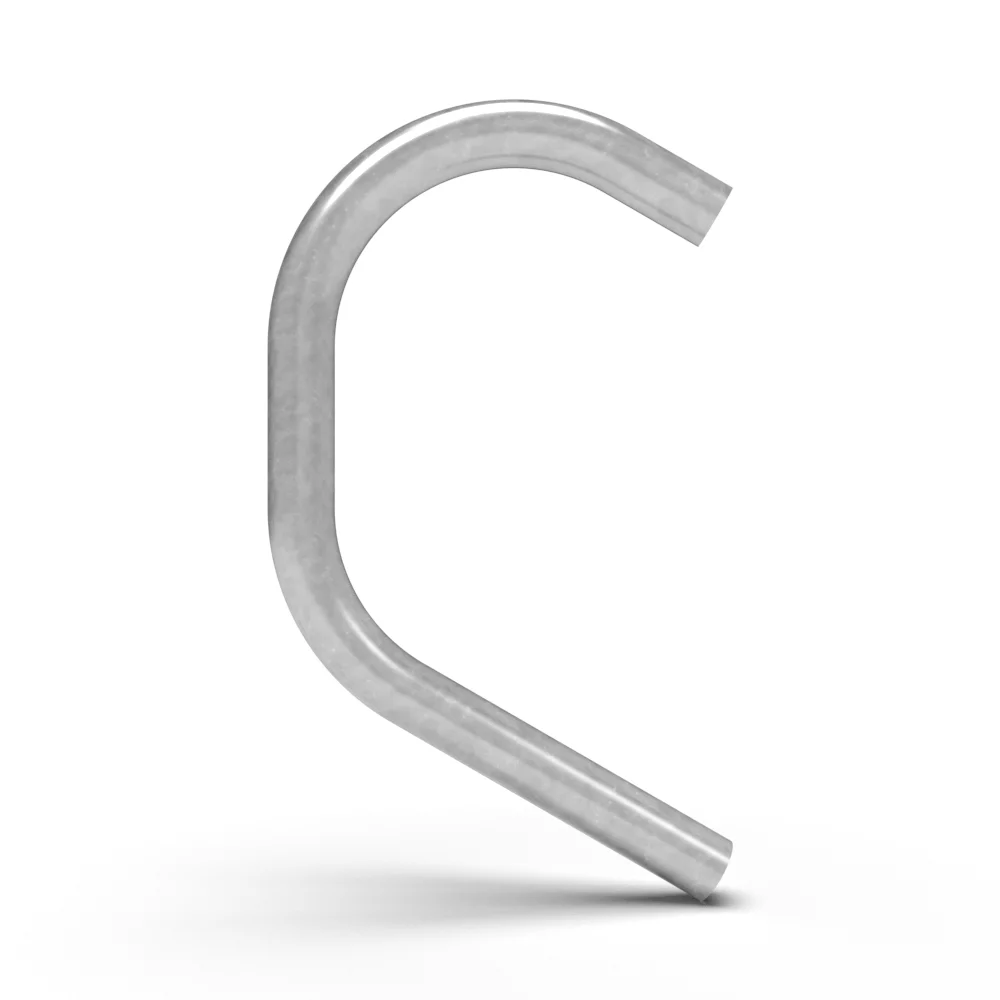

| NWCB-45 |  |
NoWeld Closure Bend 45 degree – Galvanised |
| NWCB-45-Y |  |
NoWeld Closure Bend 45 degree – Galvanised & Powder Coated |

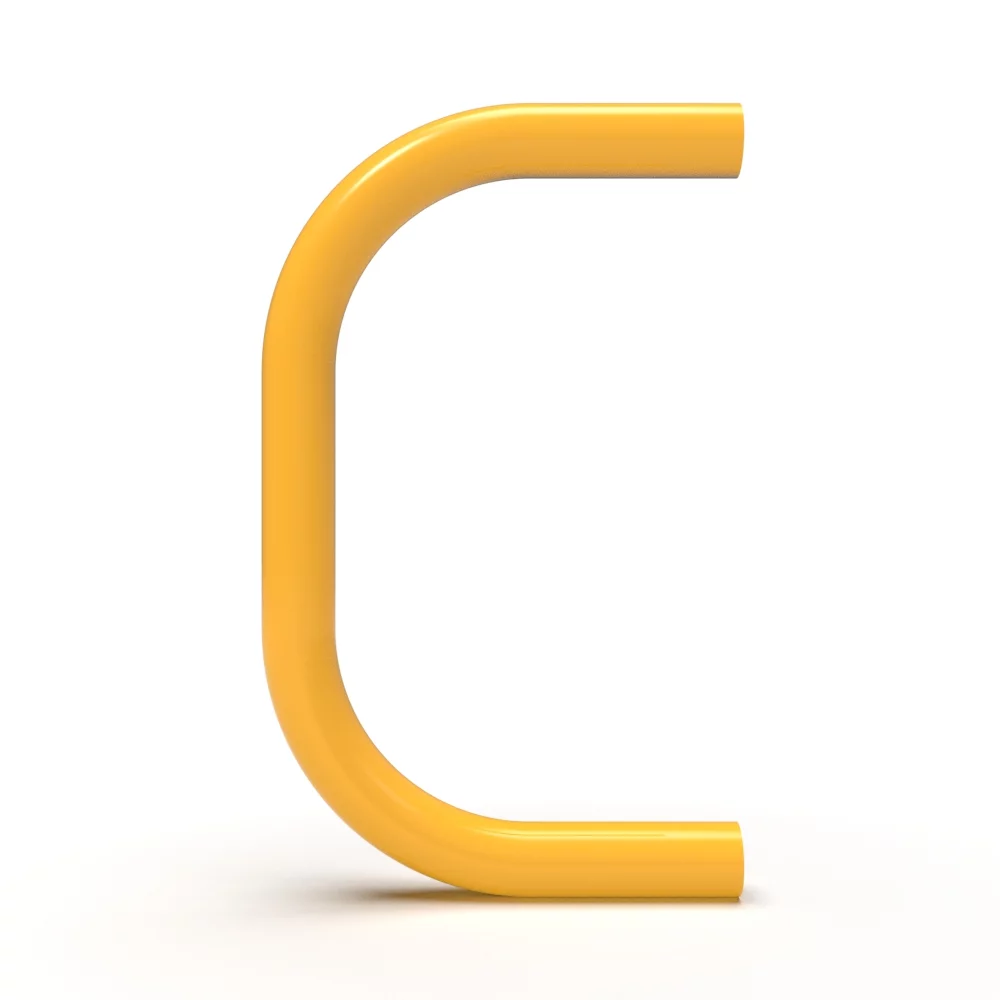

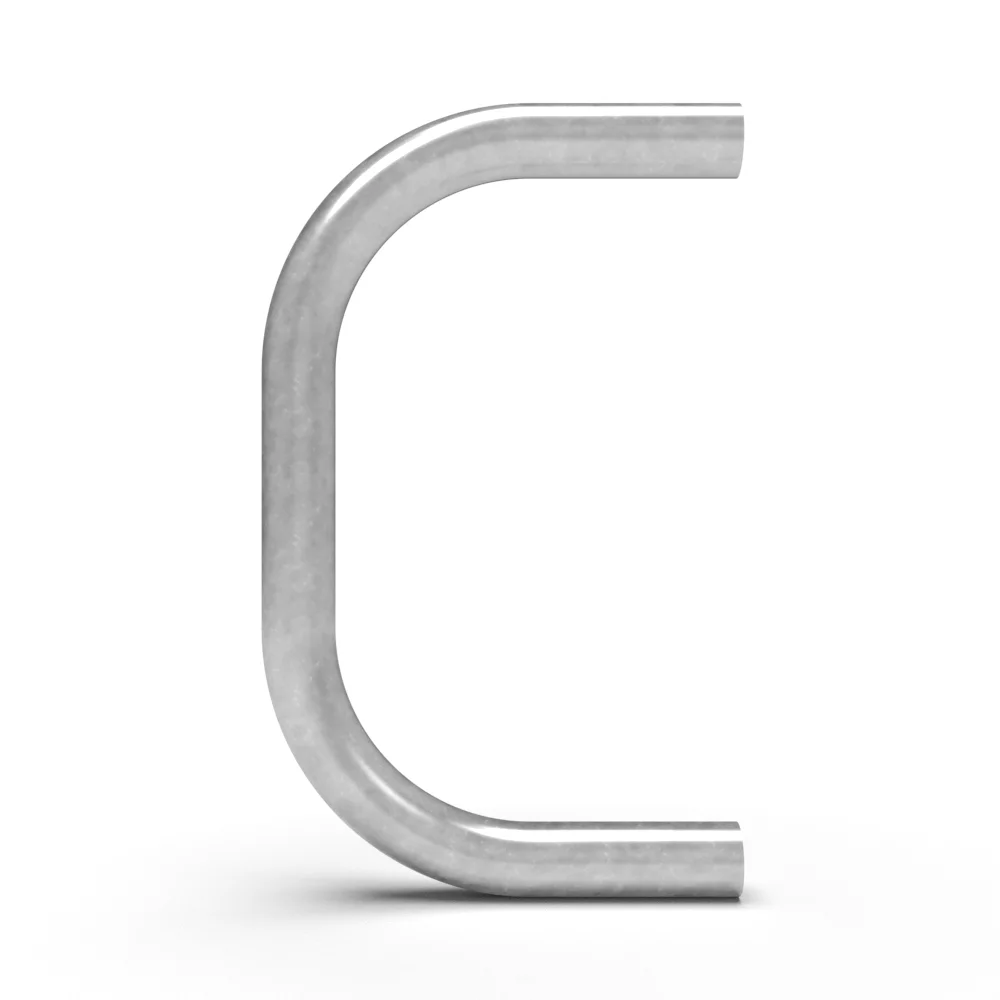

| NWB40-180 |  |

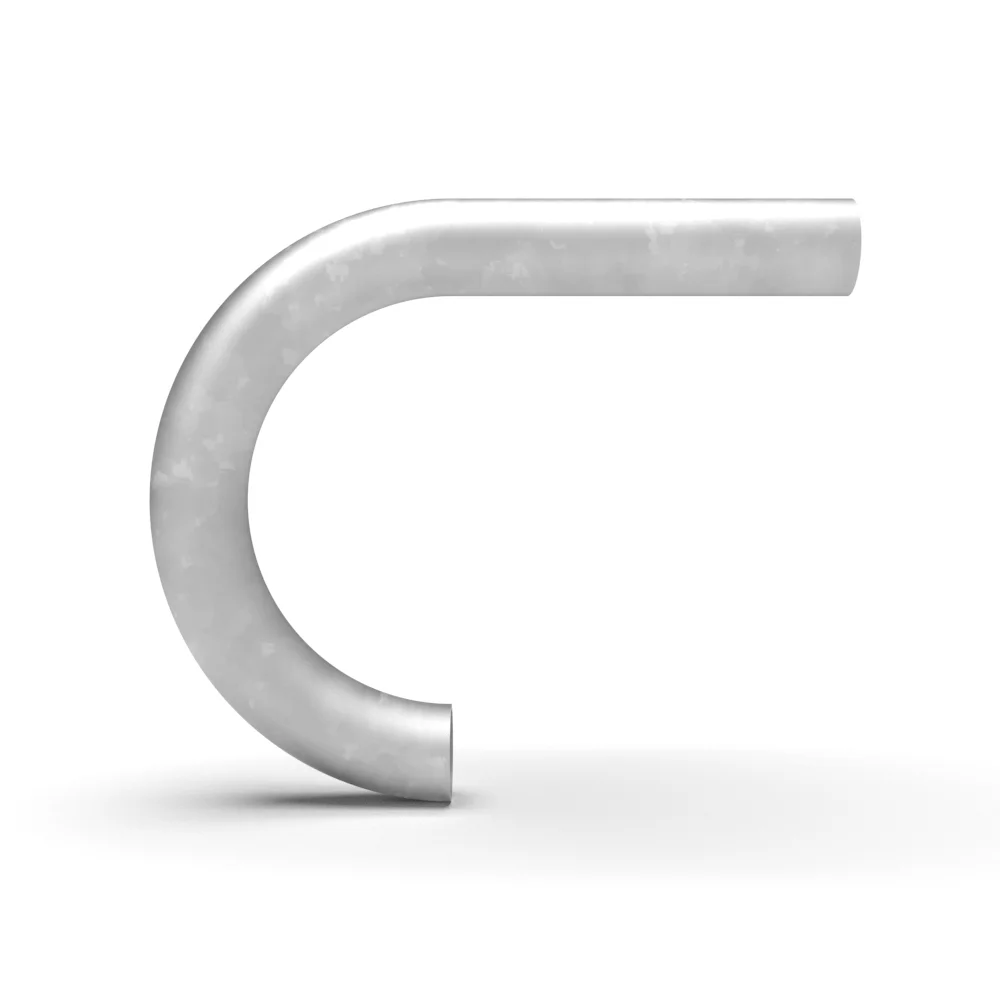

NoWeld Handrail Bend 40NB 180 degree – Galvanised |
| NWB40-45 |  |
NoWeld Handrail Bend 40NB 45 degree – Galvanised |

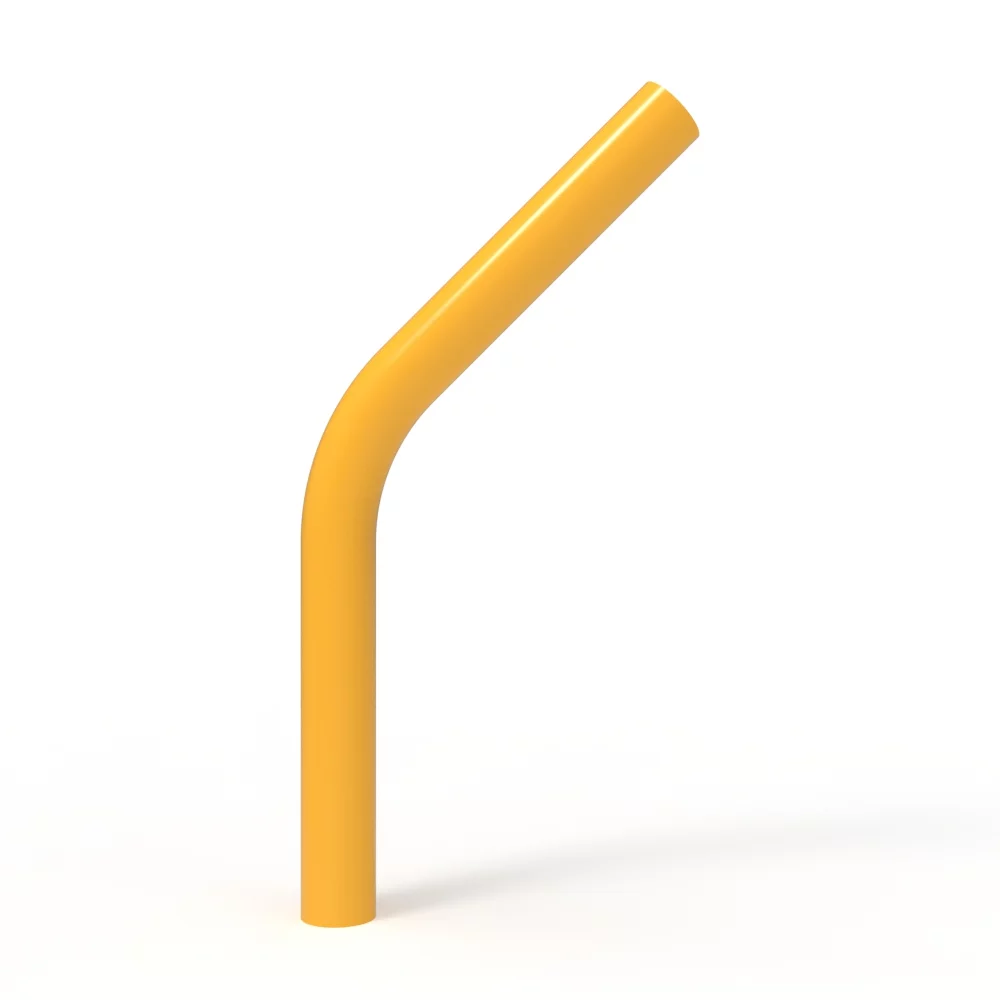

| NWB40-45-Y |  |
NoWeld Handrail Bend 40NB 45 degree – Galvanised & Powder Coated |

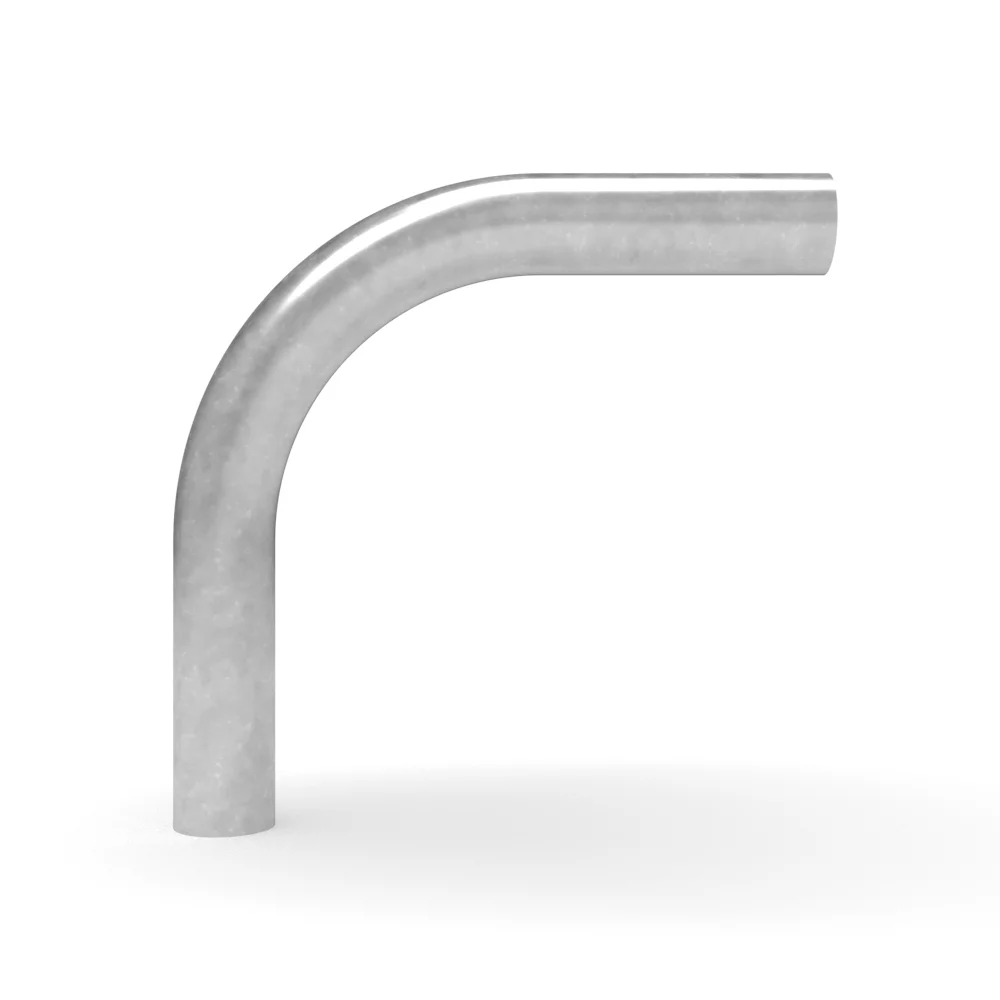

| NWB40-90 |  |
NoWeld Handrail Bend 40NB 90 degree – Galvanised |

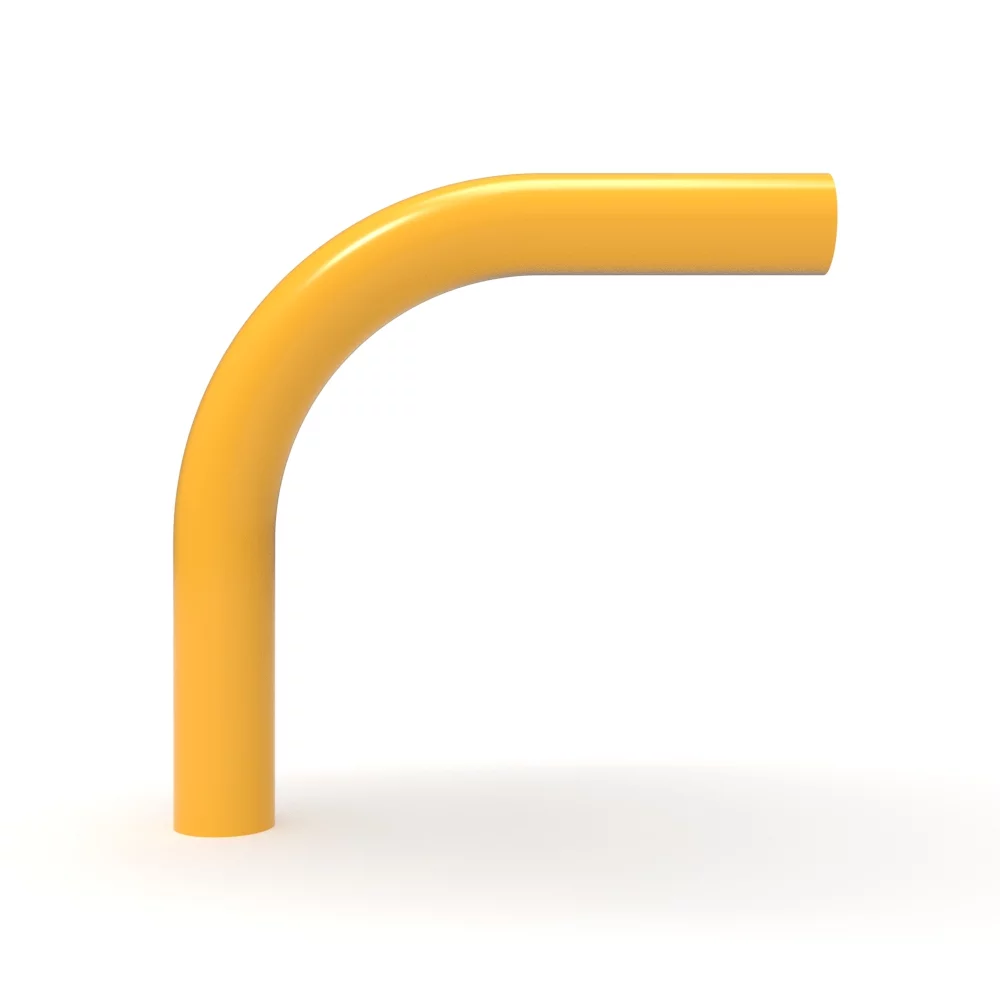

| NWB40-90-Y |  |
NoWeld Handrail Bend 40NB 90 degree – Galvanised & Powder Coated |
Toe Board
| Code | Image | Description |

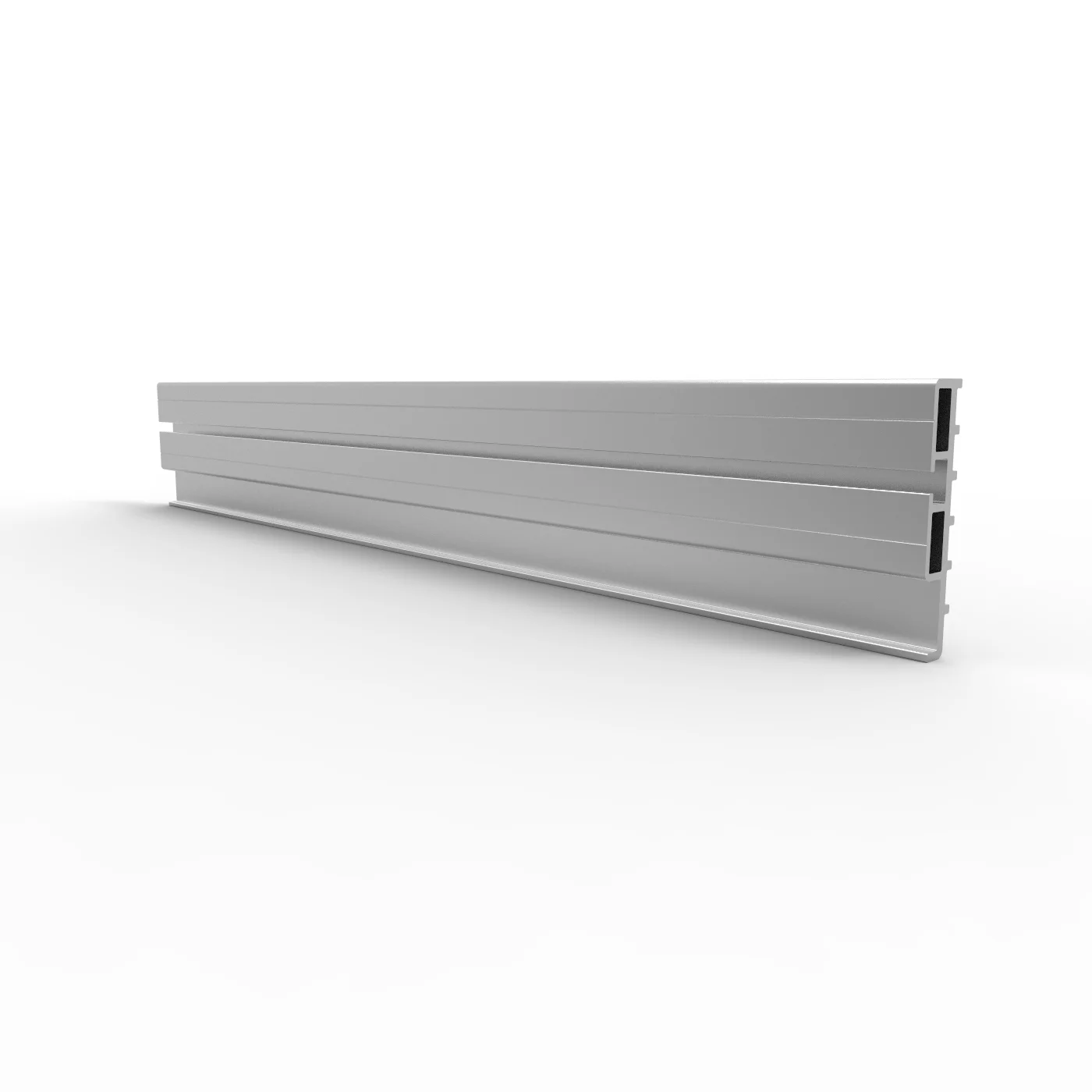

| TB100-A |  |

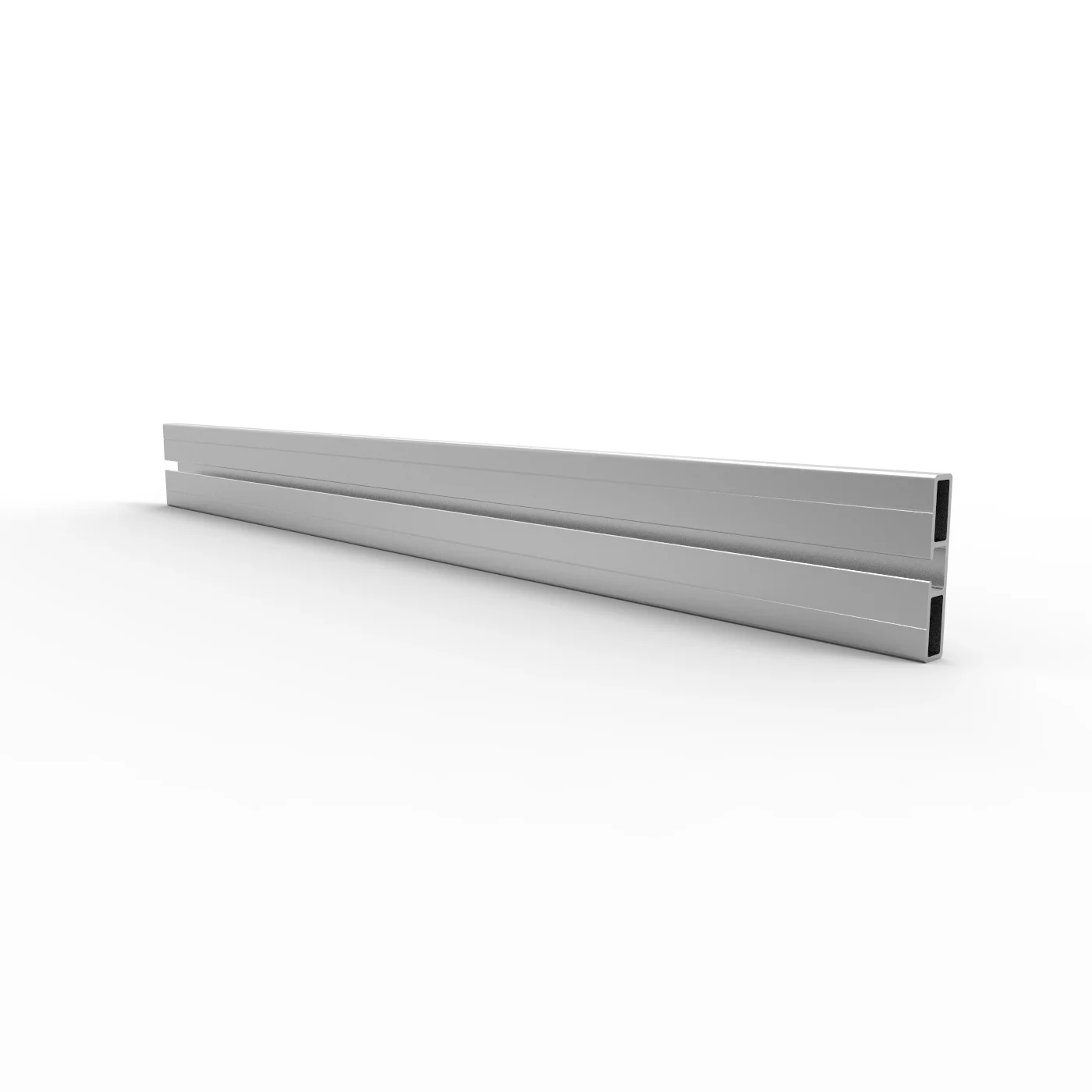

Toe Board 100mm 6 metres – Aluminium |
| TB150-A |  |
Toe Board 150mm Heavy 6 metres – Aluminium |

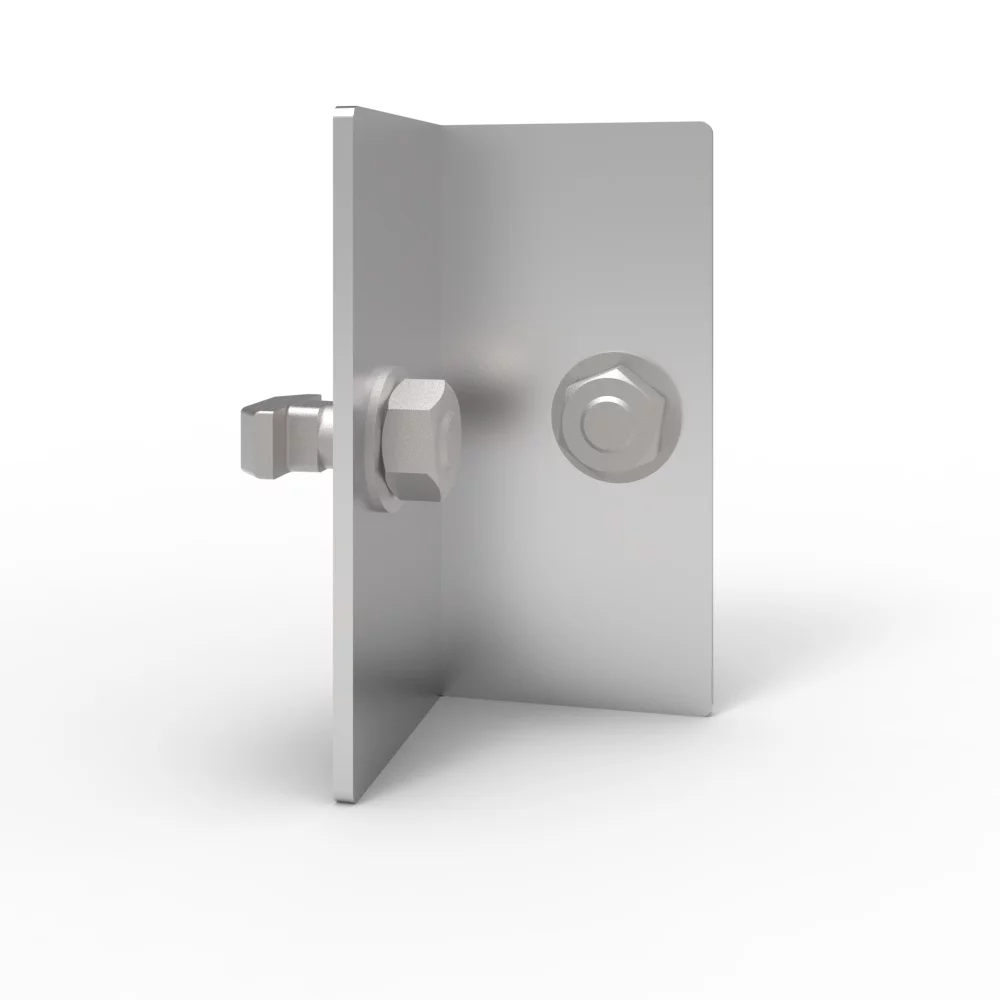

| TBVC |  |
Toe Board Variable Angle Connector – Galvanised |

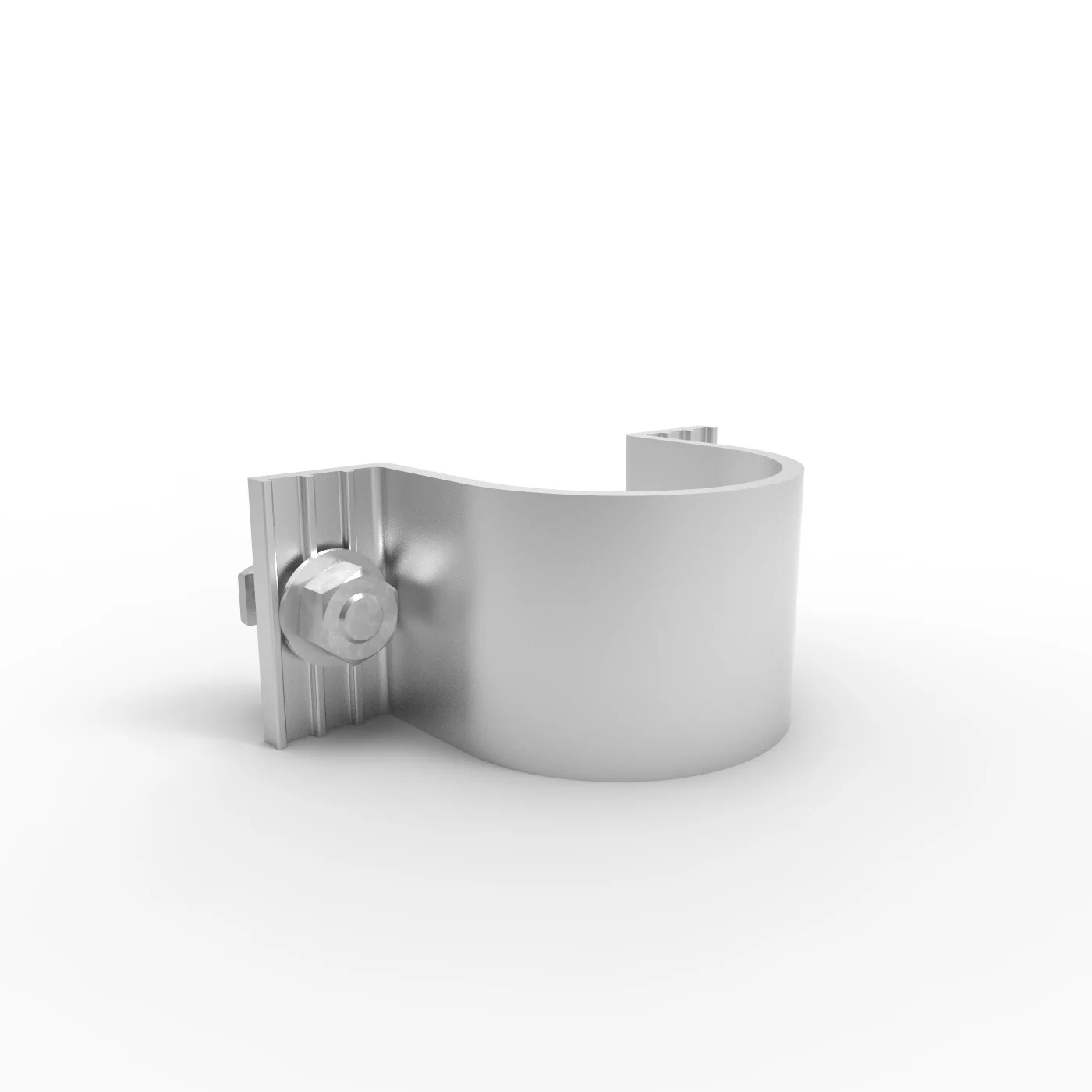

| TBC48-A |  |
Toe-Board Clamp to suit 48mm Post |
| TBC63-A | |
Toe-Board Clamp to suit 63mm Post |
| TBC90-A | |
Toe-Board Clamp to suit 90mm Post |
| TBCC |  |
Toe-board Corner Connector – Galvanised |

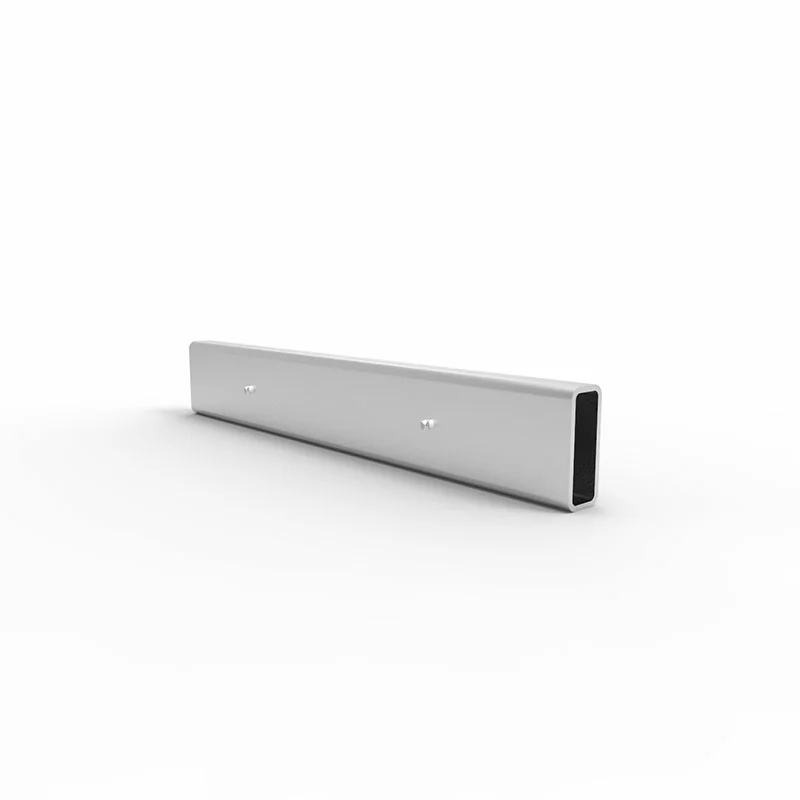

| TBJ200 |  |
Toe-Board Joiner |
Toe Board Compatibility Chart
| Clamp | ER Railing | PR Railing | Image | Material |
| TBC48-A | – | – | Yes | Yes |
| TBC63-A | Yes | Yes | Yes | – |
| TBC90-A | Yes | Yes | – | – |
** If using the aluminium toe board range.
