Nitro Blast Handling 20 Bar (300 psi) – Alfagomma 612AA

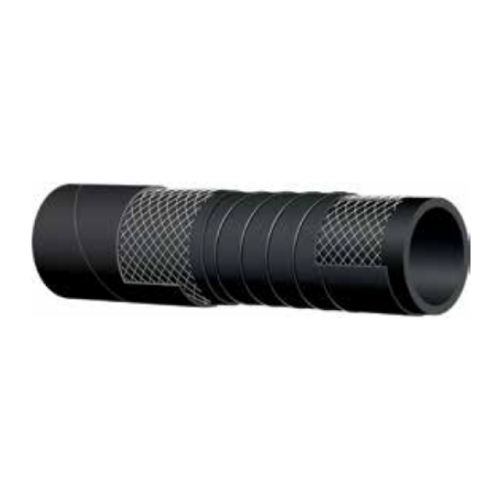

612AA Cross Section

Tube: Black conductive NR – abrasion resistant.
Reinforcement: High tensile textile cords with embedded steel wire
Cover: Black conductive CR – abrasion, ozone, hydrocarbon and fire resistant.
Application: Explosive handling in mobile delivery units.
Specially designed for heavy duty reeling applications.
Working Pressure: 20 bar / 300 psi
Burst Pressure: 60 bar / 900 psi
Constant Operation: -30°C +80°C (-22°F +176°F)

Internal Diameter Outer Diameter Bend Radius Vacuum Weight
ID mm ID inch OD mm OD Inch  mm in  % kg/m lb/ft
51 2″ 71 2.80 255 10.04 70 2.10 1.42
63 2 1/2″ 83 3.27 315 12.40 70 3.30 2.22
