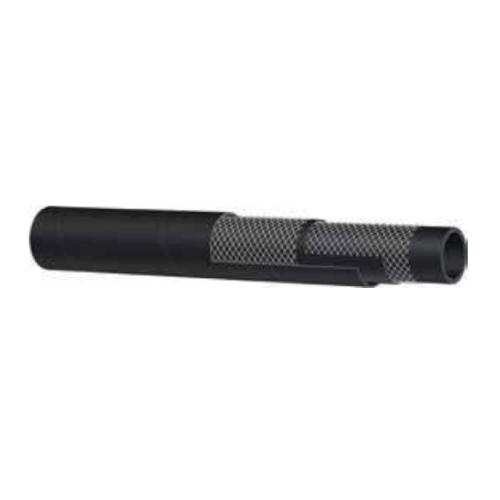

Multi-fuel 20 Bar (300 psi) SAE J30R7 – Alfagomma 654AA
Tube: Black conductive NBR.
Reinforcement: High tensile textile cords.
Cover: Black conductive CR – abrasion, ozone, hydrocarbon and fire resistant.
Application: Fuel and oil delivery, meets and exceeds SAE J30R7 Also suitable for automotive and marine fuel transfer.
Working Pressure: 20 bar / 300 psi
Burst Pressure: 60 bar / 900 psi
Constant Operation: -40°C +125°C (-40°F +257°F)
| Internal Diameter | Outer Diameter | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | kg/m | lb/ft |
| 6 | 1/4″ | 12 | 0.47 | 0.11 | 0.08 |
| 8 | 5/16″ | 14 | 0.55 | 0.13 | 0.09 |
| 10 | 3/8″ | 16 | 0.63 | 0.16 | 0.11 |
| 13 | 1/2″ | 20 | 0.79 | 0.22 | 0.15 |
| 16 | 5/8″ | 24 | 0.94 | 0.30 | 0.21 |
| 19 | 3/4″ | 27 | 1.06 | 0.33 | 0.23 |
| 25 | 1″ | 34 | 1.34 | ||
