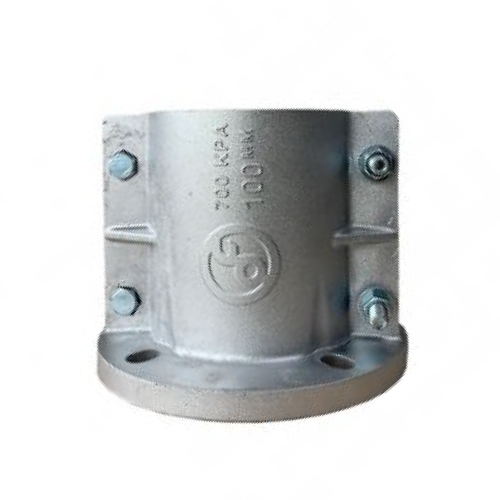

Muff Couplings
Application: Designed to be used with Muff Coupling Hose
Materials: Available in Aluminium AC601 and Grey Cast Iron
Design: Flange available in Table D, Table E and ANSI configurations
| Size (mm) | Hose OD (mm) | Working Pressure (PSI) | Working Pressure (MPa) | Total Length (mm) |
| 50 | 69-71 | 150 | 1.03 | 96 |
| 75 | 102-104 | 150 | 1.03 | 112 |
| 100 | 125-129 | 150 | 1.03 | 160 |
| 125 | 152-157 | 150 | 1.03 | 174 |
| 150 | 180-184 | 150 | 1.03 | 190 |
| 200 | 234-238 | 150 | 1.03 | 245 |
| 250 | 284-290 | 150 | 1.03 | 295 |
| 300 | 343-349 | 150 | 1.03 | 342 |
