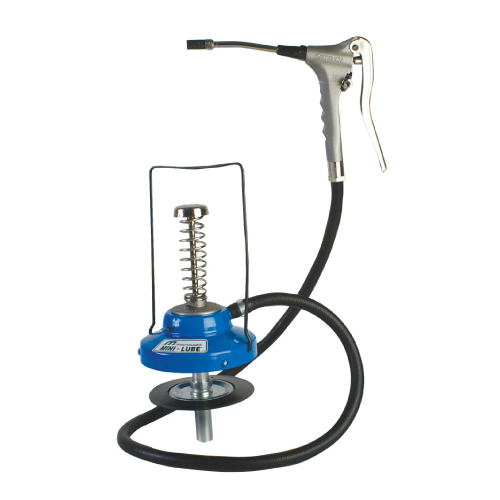

The K7 MINILUBE® Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. It consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the “high volume” position the gun will deliver up to 5,000 psi and when set on the “high pressure” setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7 is an economical alternative to the more expensive air-operated greasing systems.
Features and Benefits
- Manual Greasing System – Light weight and portable go anywhere design that holds 6x the grease capacity of a standard cartridge
- KY SUPERGRIP™ Coupler – Positive no leak connection ensures grease reaches the bearing
- Foot Operated Pump – Provides 30 shots per prime
- Rubber-edged Follower Plate – Wipes container clean & prevents air pockets & contamination
- Fully Repairable – Provides a much longer service life
- KR Pressurite Gun – Choose between high pressure or high volume setting
- High Pressure Setting – Produces up to 10000 psi (68900 kPa) of pressure
- High Volume Setting – Delivers up to 1.25g grease per shot
- 360° Ball Swivel – Prevents hose from kinking
- Fully Sealed System – With inbuilt grease strainer prevents grease contamination
- 1.5m Delivery Hose – Easy to reach difficult applications
Technical Specifications
