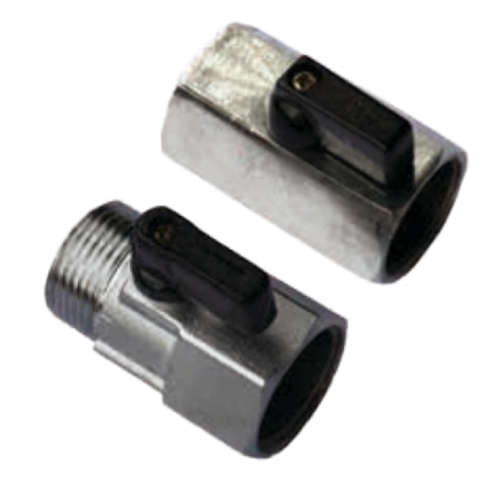

Mini Brass Ball Valve
Available in F/F or M/F configurations

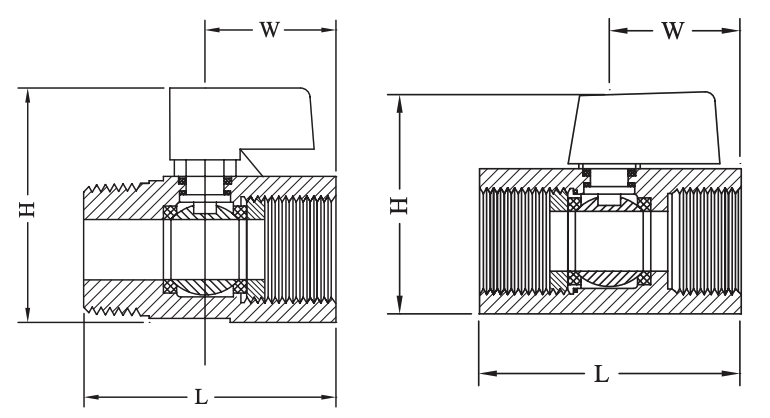

| Imperial Size | L (mm) | H (mm) | W (mm) | Approx. kg/pc |
| 1/8 | 42 | 35 | 21 | 0.08 |
| 1/4 | 40 | 35 | 20 | 0.08 |
| 3/8 | 41 | 36 | 20 | 0.08 |
| 1/2 | 45 | 41 | 22 | 0.11 |
| 3/4 | 53 | 46 | 26 | 0.21 |
Available in F/F or M/F configurations
| Imperial Size | L (mm) | H (mm) | W (mm) | Approx. kg/pc |
| 1/8 | 42 | 35 | 21 | 0.08 |
| 1/4 | 40 | 35 | 20 | 0.08 |
| 3/8 | 41 | 36 | 20 | 0.08 |
| 1/2 | 45 | 41 | 22 | 0.11 |
| 3/4 | 53 | 46 | 26 | 0.21 |
