Mine Bolt – Barfell

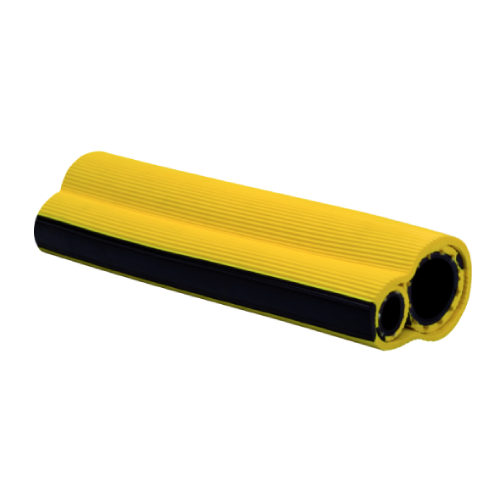

Fire resistant anti static twin hose with 12.5mm and 25 mm hoses permanently coupled together as one hose. Each hose has a unique 3 layer construction that offers optimum performance and handling characteristics.
Inner Wall: Black
Outer Wall: Ribbed Yellow with Black Stripe.
Application: Underground air and water mining hose and ideal for rock bolting.
Manufactured: to AS2660 Class A (1991) and AS/NZ2554 Class A.
| Diameter (mm) | Working Press. (at 20°C) | Burst Press. (at 20°C) | Weight | |||
| ID | OD | Mpa | P.S.I | Mpa | P.S.I | kg/m |
| 12.5/25 | 20.9/34.8 | 2.1 | 305 | 8.4 | 1220 | 1.51 |
