Mezzanine Double-Boom Gate
- Safe loading/unloading on elevated areas
- Compliant with Australian workplace safety standards
- When one gate is open, the other is closed
- Modular design that can be tailored to specific requirements
- Manual lift with gas strut assistance
Mezzanine Pallet Safety Gates designed to promote safe delivery procedures on and off mezzanine levels, elevated floors and loading docks.
Mezzanine Gates protect workers while loading and unloading pallets, particularly when working at elevated heights where a fall could be extremely hazardous. The gate not only separates workers from the forklift loading operation onto the mezzanine level, but it also secures the ledges of loading bays to safeguard against accidental falls.
The standard 1.5 metre opening of the gate suits most pallet sizes allowing enough room for packing or unpacking pallets with ease. A larger 2-metre-wide opening version is also available. The gates are a right hand open, however should a left-hand operation be required it can be ‘built to order’ by request. To assist with the counterbalance opening of one gate while the other closes, gas struts have been included in this well thought out design. Barrier Group Mezzanine Gates are easily operated by one person, with a simple manual lift and gas strut assistance, regardless of their personal strength or reach.
The Mezzanine Gates are available in kits that include posts, booms with hi-vis reflective tape, kick rail as per AS 1657:2018 requirements and applicable hardware. (Ground fixings are not included.) Our Barrier Group installation team offer a full installation service which can be quoted upon request.
It is highly recommended to also include U-Bars or safety railing either side of the Mezzanine gate should it be installed into an area that leaves the sides of the gate exposed.
| Code | Dimensions | Standard Rail Length | MAX Recommended Rail Length | MIN Recommended Rail Length | Clear Opening INCLUDES Base Plates | Clear Opening EXCLUDES Base Plates | Max Pallet Depth | Floor to Top of Rail |
| MZ1500-A | 2088 x 1890 x 2715 mm | 1735 mm | 2675 mm | 1500 mm | 1518 mm | 1568 mm | 1570 mm | 990 mm (3 Rails Side) |
| MZ2000-A | 2088 x 1890 x 3215 mm | 3215 mm | 2675 mm | 1500 mm | 2018 mm | 2068 mm | 1570 mm | 990 mm (3 Rails Side) |
| Code | Image | Description |
|
KIT2
|
 |

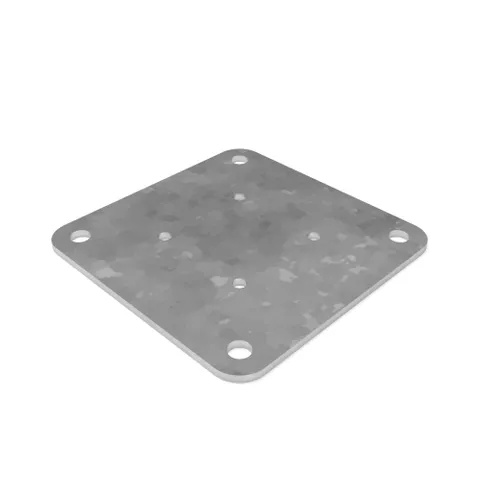

Fixing Kit for Mezzanine Gate – Galvanised Reinforcement Plates x 4
|
|

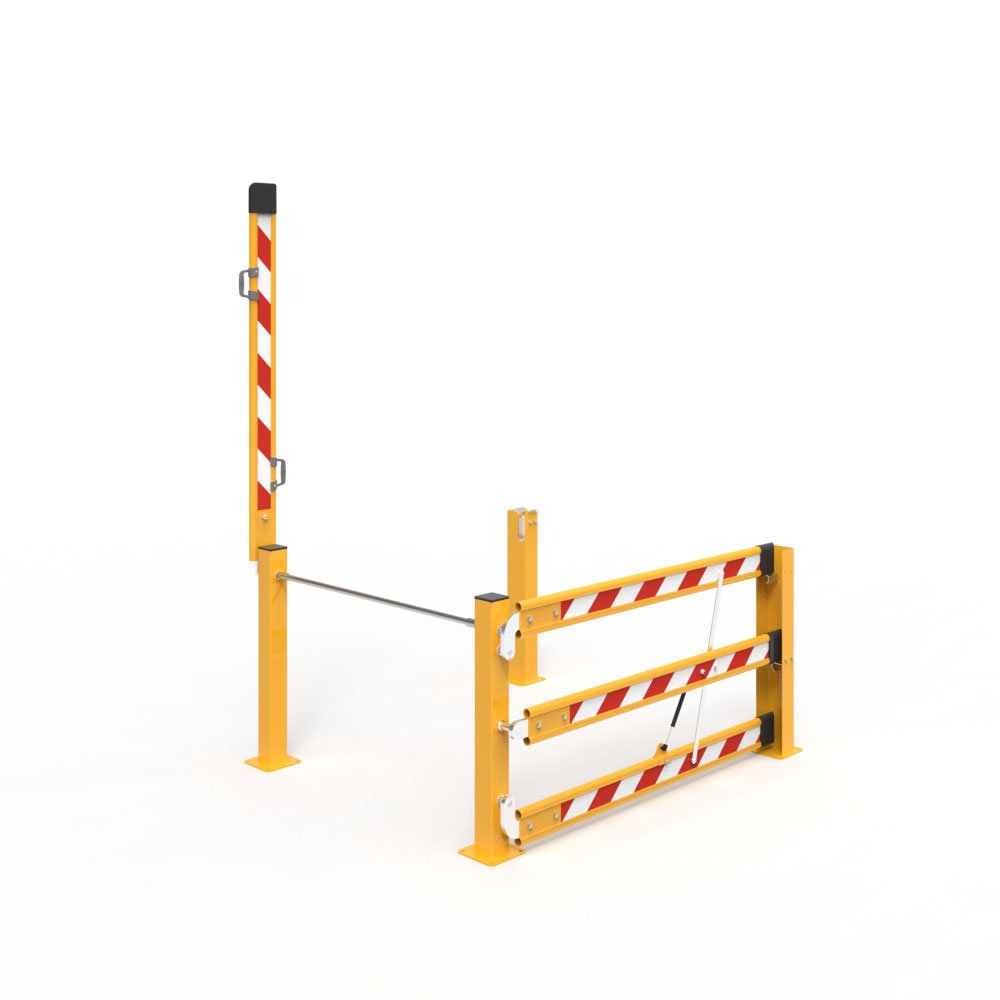

MZ1500-A
|
 |
Mezzanine Double Boom Gate Assembly 1500 x 1500mm
|
|
MZ2000-A
|
|
Mezzanine Double Boom Gate Assembly 2000 x 1500mm
|
