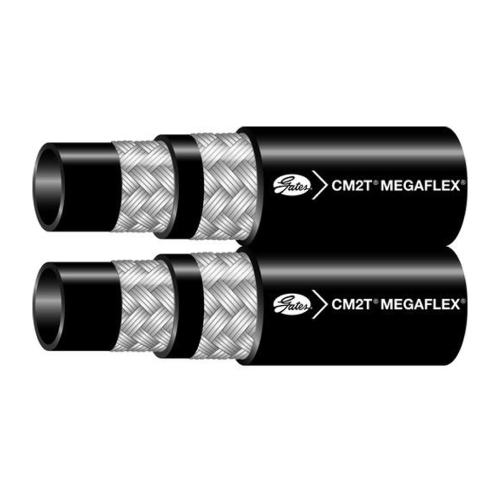

Megaflex® Connected Dual-Line – Gates CM2TDL
Tube: Black, oil resistant, synthetic rubber (Nitrile).
Reinforcement: Two braids of high-tensile steel wire.
Cover: Black, oil, abrasion and weather resistant, synthetic rubber (Nitrile), with colour coded layline.
Application: High abrasive high-pressure hydraulic oil lines joined together for easier plumbing and routing. Meets SAE 100R16 requirements. CM2T hose has smaller exterior dimensions and significantly tighter bend radius. Exceeds performance standards of EN 857 2SC and ISO/DIS 1436c. Meets flame resistance acceptance designation”WSHA 2G”
Temperature: -40°C +100°C (-40°F to +212°F)
*Not for steam service
| Internal Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bend Radius | |||||
| In. | mm | In. | mm | psi | Mpa | psi | Mpa | In. | mm |
| 3/8 | 9.5 | 0.70 | 17.78 | 4800 | 33.09 | 19200 | 132.38 | 3.5 | 88.9 |
| 1/2 | 12.7 | 0.82 | 20.83 | 4000 | 27.58 | 16000 | 110.32 | 5.0 | 127 |
