Mechanical Oil Meter – Lubemate L-MOM30-01

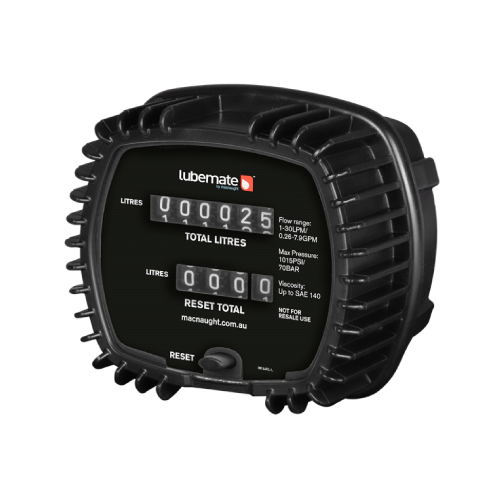

Mechanical Oil Meter - Lubemate L-MOM30-01

This reliable oval gear mechanical meter provides reliable, accurate fluid measurements for most oil applications. The mechanical display provides both a cumulative total and push-button reset batch total.

Features & Benefits

  • Small versatile design, ideal for mobile use
  • Requires no batteries
  • Shock absorbing housing protection
  • Oval gear mechanical meter, gears are made of acetal resin
  • Mechanical 6 digit totaliser with resettable 999.9 litre batch total
  • Ready to use

Technical Specifications

  • Flow Range: 1-30 L/min
  • Maximum Pressure: 1000 psi / 6895 kPa / 69 bar
  • Minimum Temperature: -10oC
  • Maximum Temperature: 60oC
  • Meter / Register: Oval gear / Mechanical
  • Accuracy (Flow Rate): +/- 1% (lube oils)
  • Inlet Port: 1/2″BSPT (F)
  • Outlet Port: 1/2″BSPT (F)
  • Compatible Fluids: Oils up to SAE140
  • Accumulative Totaliser: 6 Digit
  • Resettable Totaliser: 999.9 litre
