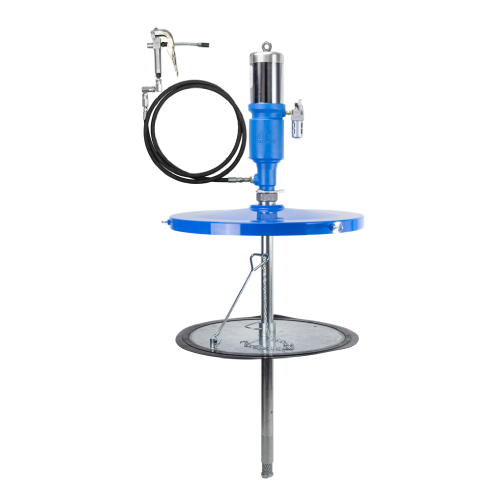

P58 Maxilube® Heavy Duty Air Operated Grease Pump Kit with Booster Gun, Lid and Follower – Macnaught

The P58 MAXILUBE is the latest and most powerful air-operated heavy duty grease pump from Macnaught. Designed, engineered and manufactured in Australia, the P58 is a high-performance pump providing high volume and high pressure for 180kg grease systems.

• 58:1 Ratio Grease Pump
• Heavy-duty construction – Reliable long service life in the harshest of conditions
• High-flow up to 6 kg/min (free flow) – Fast high pressure greasing
• High quality components – To ensure reliable operation in the harshest environments
• Large silencer – Designed to prevent icing and reduce noise
• Fast grease line pressure recovery – Instant greasing
• Large capacity suitable for long grease line delivery – Ideal for large workshops with long greasing distances
• Fully Repairable – Spare parts availability

Model	P58PGLF-01
Pressure Ratio	58:1
Air Pressure Operating Range	60 to 150 psi
Air Consumption	23.5 SCFM (120 psi pressure, 20°C)
Max Fluid Outlet Pressure	8700 psi (59900 kPa)
Air Motor Diameter	4.1″ (104.7mm)
Max Free Flow Delivery Rate	6 kg/min (13lb/min) (@120 psi pressure, 20°C)
Air Inlet Size	1/4″ BSPT
Fluid Outlet Size	3/8″ BSPT
Wetted and Seal Materials	NBR
Noise Level	85 dB(A) (@120 psi)
Air Lubricator Included	Yes
Hose	2.5 m x 6 mm ID Delivery Hose
Control Gun	B2 Booster Gun with Z Swivel
Lid and Follower (180 kgs)	Lid and Follower – 180 Kgs (P58LF-01)
Grease Up to	NLGI no 2
Pump Tube Diameter	41.3 mm OD
Pump Tube Height	960 mm
Total Height	1396 mm
Weight	25.5 kg
