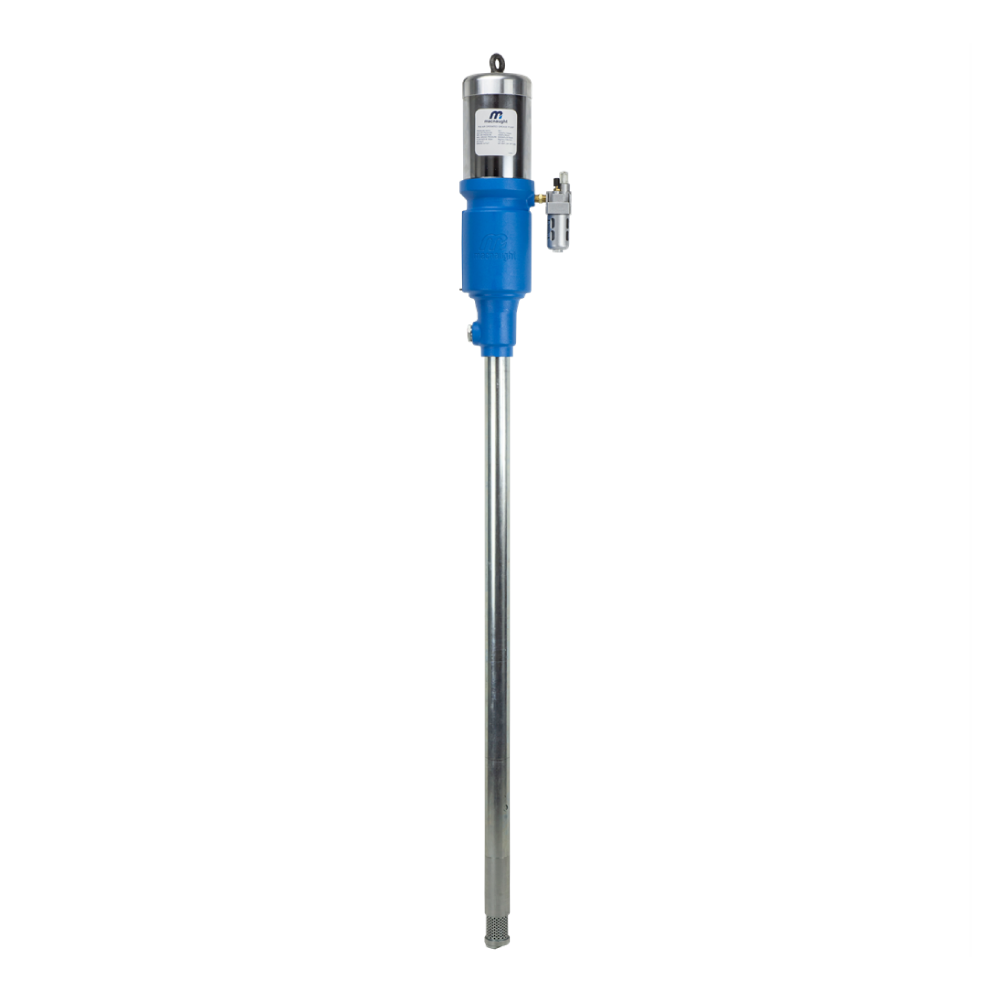

P58 Maxilube® Heavy Duty Air Operated Grease Pump – Macnaught

P58 Maxilube® Heavy Duty Air Operated Grease Pump - Macnaught

The P58 Maxilube is the latest high-performing heavy duty air operated grease pump manufactured by Macnaught. Designed, engineered and manufactured by Macnaught in Australia, the P58 now provides you with a high-performing, high-pressure grease pump along with the Macnaught performance reliability and service.

Features

  • 58:1 Ratio Grease Pump
  • Heavy-duty construction – Reliable long service life in the harshest of conditions
  • High-flow up to 6 kg/min (free flow) – Fast high pressure greasing
  • High quality components – To ensure reliable operation in the harshest environments
  • Large silencer – Designed to prevent icing and reduce noise
  • Fast grease line pressure recovery – Instant greasing
  • Large capacity suitable for long grease line delivery – Ideal for large workshops with long greasing distances
  • Fully Repairable – Spare parts availability
Model P58-01
Pressure Ratio 58:1
Air Pressure Operating Range 60 to 150 psi
Air Consumption 23.5 SCFM (120 psi pressure, 20°C)
Max Fluid Outlet Pressure 8700 psi (59900 kPa)
Air Motor Diameter 4.1″ (104.7mm)
Max Free Flow Delivery Rate 6 kg/min (13lb/min) (@120 psi pressure, 20°C)
Air Inlet Size 1/4″ BSPT
Fluid Outlet Size 3/8″ BSPT
Wetted and Seal Materials NBR
Noise Level 85 dB(A) (@120 psi)
Air Lubricator Included Yes
Grease Up to NLGI no 2
Pump Tube Diameter 41.3 mm OD
Pump Tube Height 960 mm
Total Height 1396 mm
Weight 13 kg
