Manual Strut Assisted Dock-Safe Boom Gate Kit
- Prevents elevated loading dock accidents and complements the PR-Industrial Handrail System
- Easy operation with weightless gas struts and a small base plate for adaptability
- Vertical lift design minimises footprint; gate bollards protect roller door tracks
- High-visibility safety yellow aluminium boom (standard 5m, customisable length)
- Complete kit with installation service available
A Manual Strut-Assisted Dock Boom Gate designed for elevated loading docks to prevent falling accidents
The Manual Strut Assisted Dock-Safe Boom Gate Kit is a strong safety barrier. The design accommodates elevated loading docks and high areas. This kit helps prevent fall accidents and improves workplace safety. This manual boom gate also protects roller door tracks.

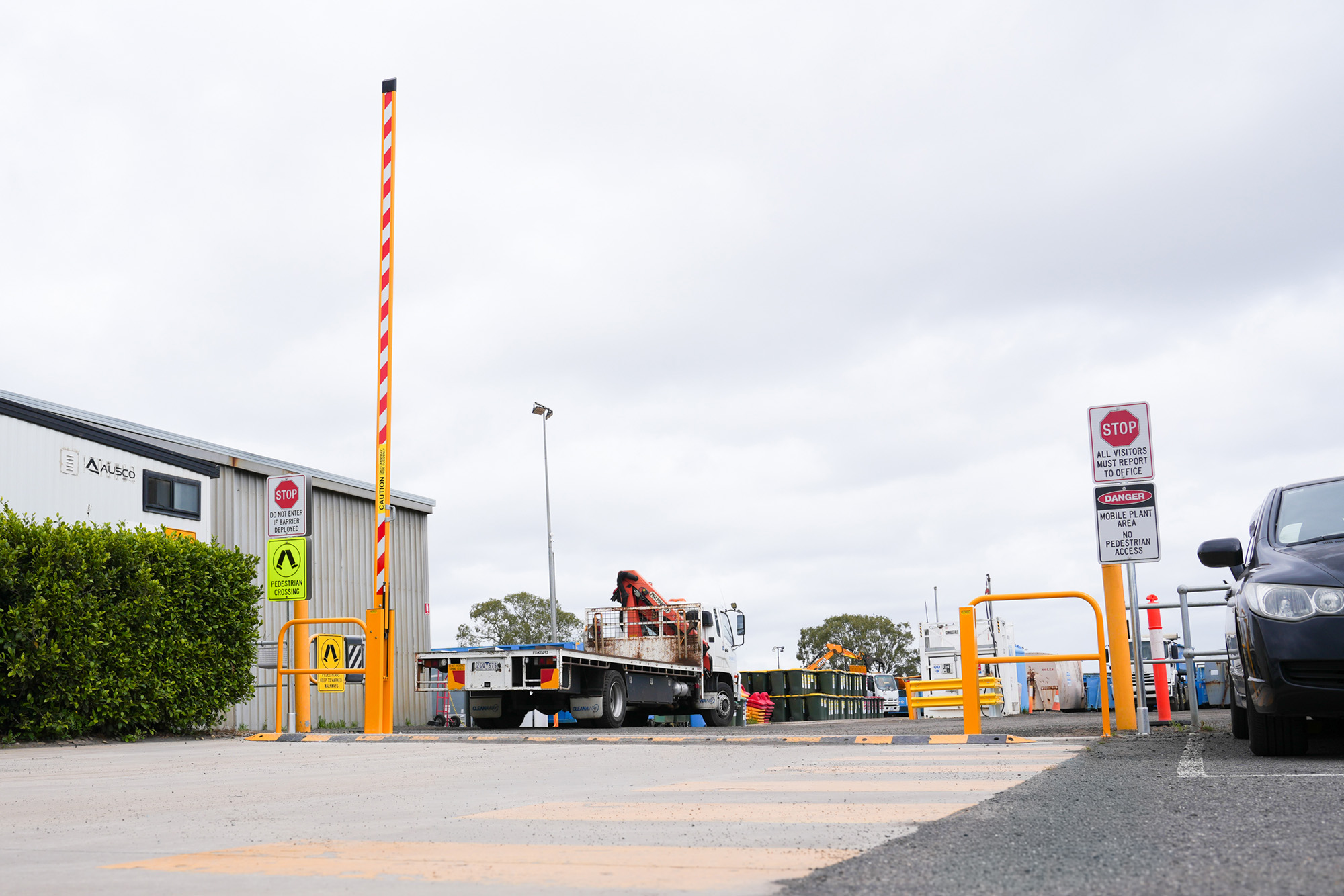

It is recommended that the boom be locked in the down position while the loading area is vacant and not in use. When the area is in use, one person can easily release and lift the boom. This is possible with the help of the lock and the easy-release strut-assisted lifting system.

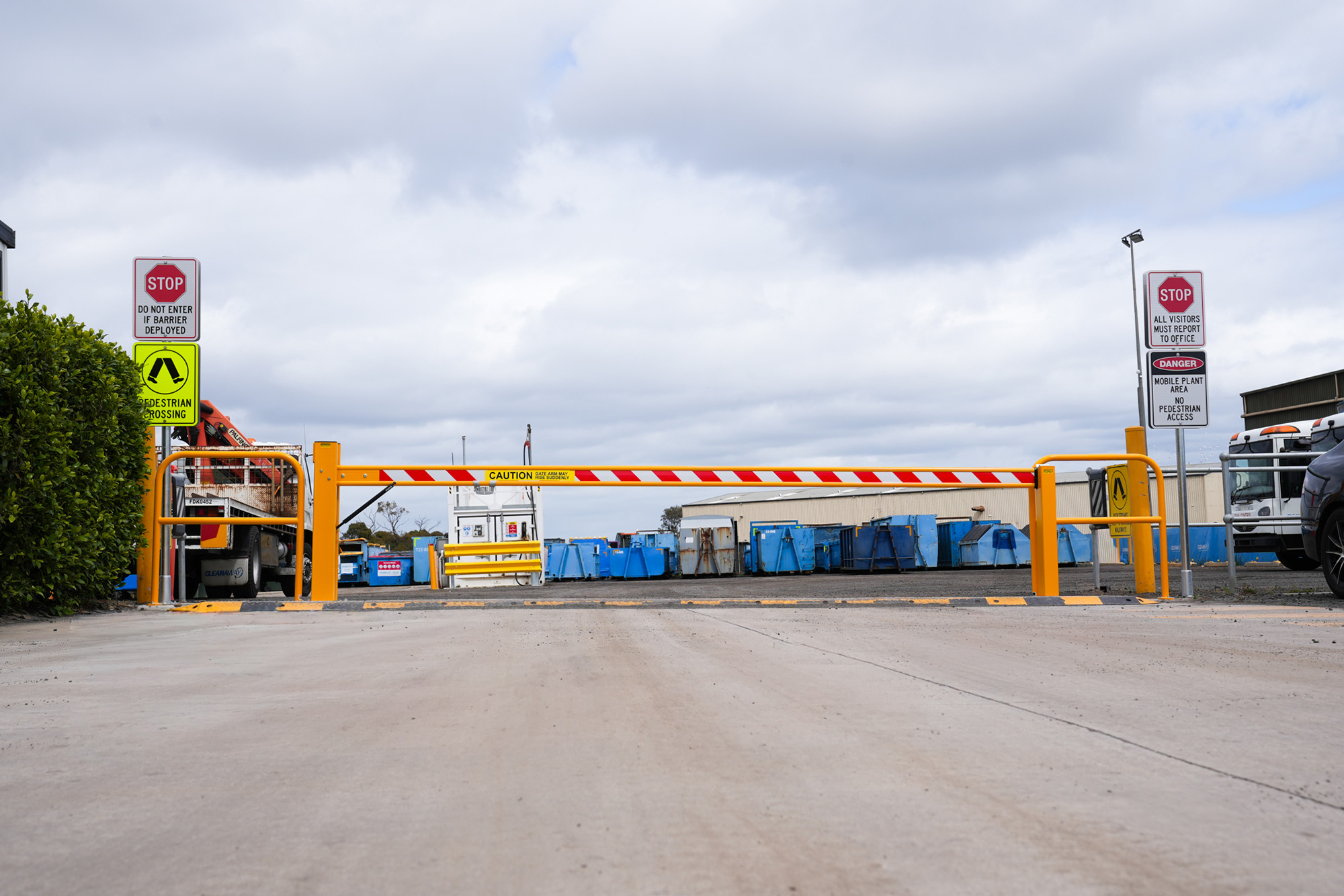

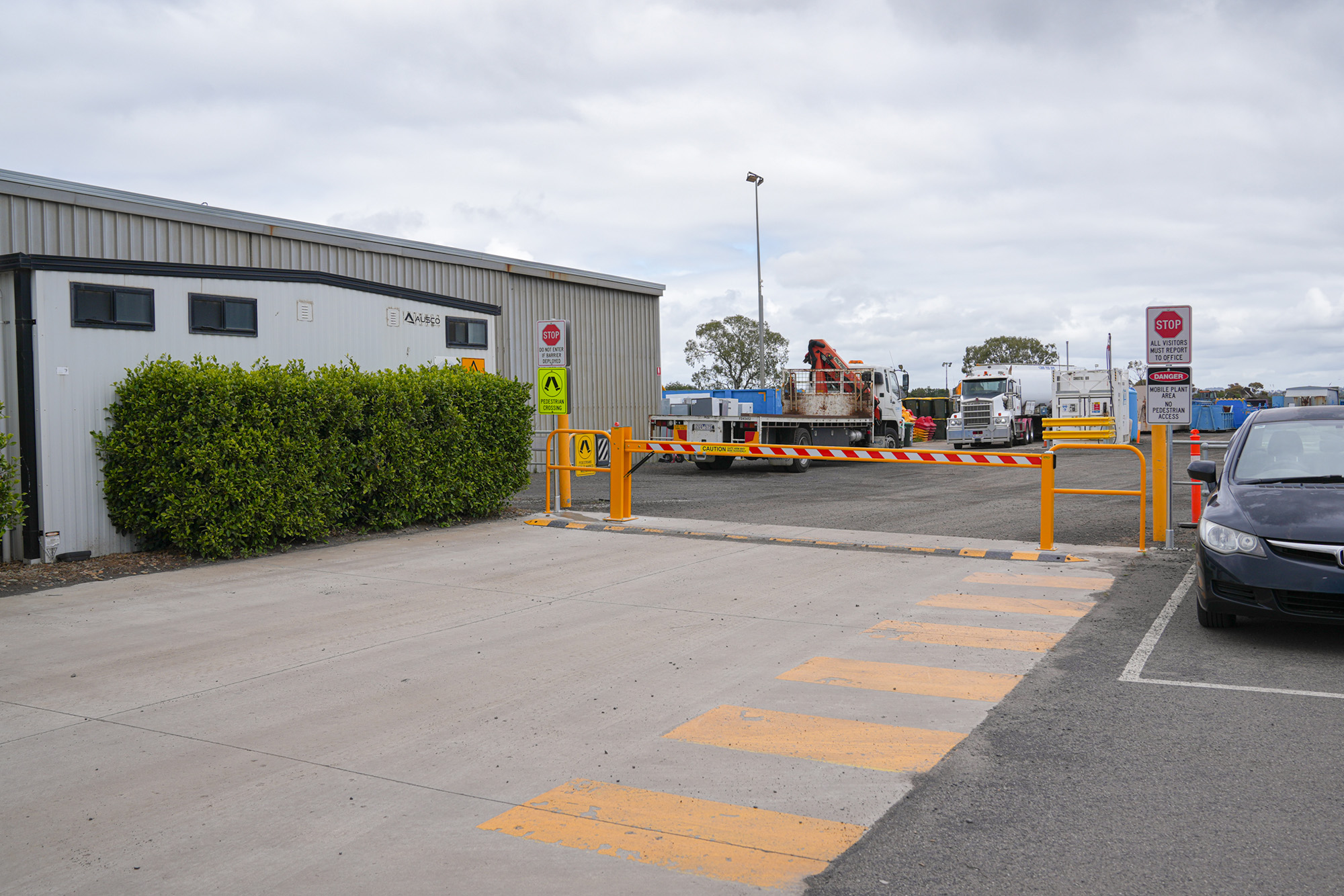

Once work on the dock is complete, the boom can return to its locked position. This creates a safety barrier. This manual boom gate is ideal for industrial applications like warehouses, factories and distribution centres. Our Manual Dock-Safe Boom Gates are available in kits that include a gate post, two gas struts, a boom and a receiver post.
| Weight | 57 kg |
| Dimensions | 5265 × 350 × 1103 mm |
| Colour | Safety Yellow |
| Finish | Galvanised & Powder Coated |
| Operation | Manual lift with gas strut assistance |
| Standard Rail Length | 5000 mm |
| MAX Recommended Rail Length | 6000 mm |
| MIN Recommended Rail Length | 3000 mm |
| Clear Opening Includes Base Plates | 4764 mm |
| Clear Opening Excludes Base Plates | 4890 mm |
| Max Opening (Clear Opening Excludes Base Plates) | 5890 mm |
| Min Opening (Clear Opening Excludes Base Plates) | 2890 mm |
| Rail Height | 950 mm |
| O/H Clearance | 5974 mm |
| Oversize | Yes |
| Fixings Included | Yes |
| Installer Recommendation | Professional |
| Gate Travel | 90 Degrees Vertical |
| Gate Stop | Built-in |
| Gate Latch | Yes |
| Hold Open | No |
| Receiver Post | Included (Optional wall mount receiver) |
| Mounting Type | Surface mounted posts |
| Rail Type | Aluminium 145 x 40 mm |
| Code | Image | Description |

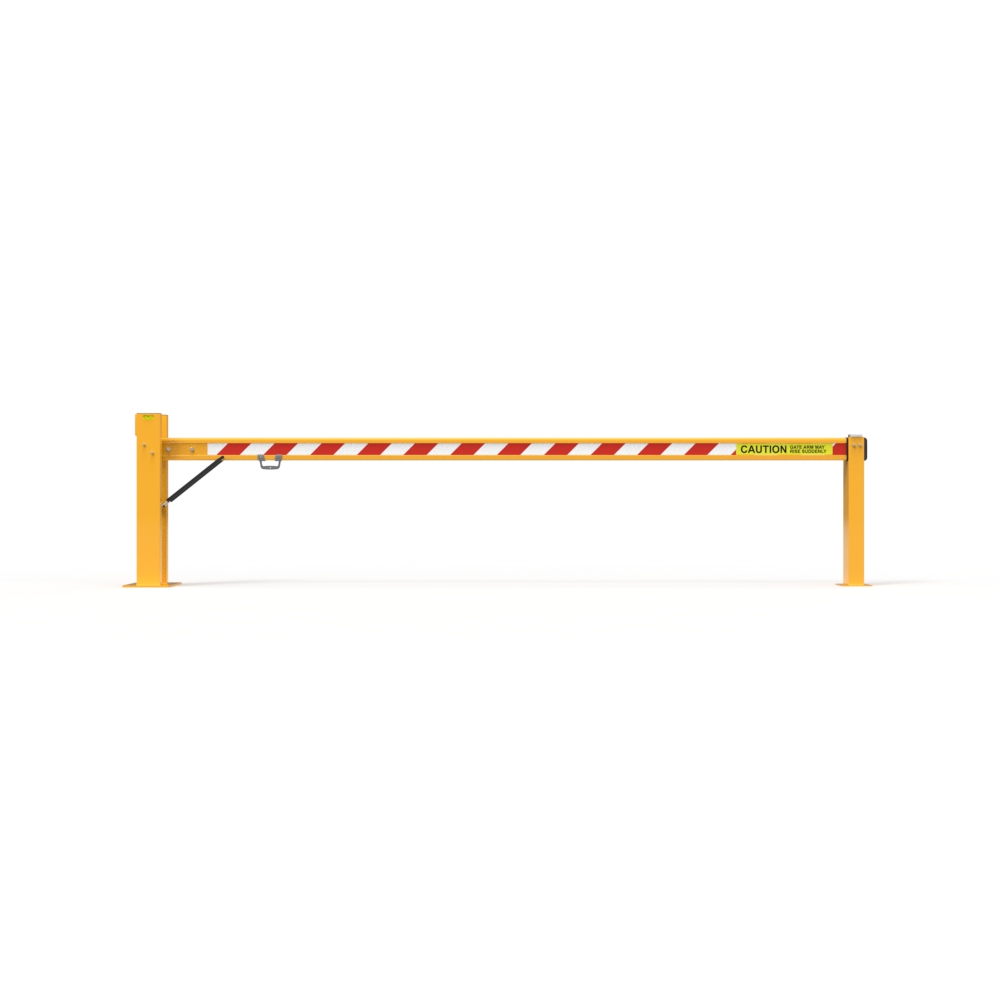

| MSBG5000 |  |
Manual Strut Assisted Dock-Safe Boom Gate Kit |
