Male Adaptor – Poly Compression Fitting

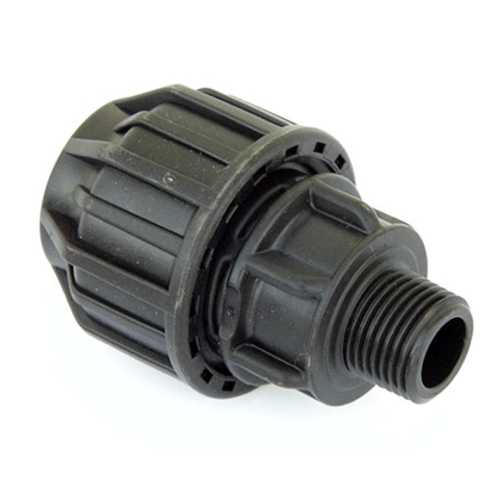

Male Adaptor - Poly Compression Fitting

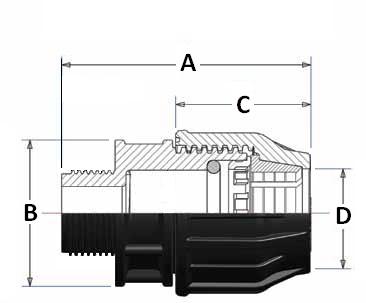

Male Adaptor - Poly Compression Fitting - Image 2

Code	Pipe x Thread	A	B	C	D	Weight (g)
MA020015	20 x 1/2	88.35	41.5	39.5	22.2	55.7
MA020020	20 x 3/4	88.35	41	39.5	22.2	56.8
MA020025	20 x 1	91.85	42.5	39.5	22.2	62
MA025015	25 x 1/2	92.38	46	41.25	26.75	66.5
MA025020	25 x 3/4	82.63	46	41.25	26.75	68
MA025025	25 x 1	84.13	46	41.25	26.75	71.5
MA032015	32 x 1/2	100.25	56.25	51.75	34	105
MA032020	32 x 3/4	95.25	55.5	51.75	34	103
MA032025	32 x 1	96.25	55.5	51.75	34	107
MA032032	32 x 1 1/4	98.75	55.5	51.75	34	113
MA032040	32 x 1 1/2	99.25	55.5	51.75	34	117
MA040025	40 x 1	110.13	69.5	60.75	41.5	176
MA040032	40 x 1 1/4	108.88	68.5	60.75	41.5	179
MA040040	40 x 1 1/2	109.38	69.75	60.75	41.5	199
MA040050	40 x 2	112.63	69	60.75	41.5	194
MA050025	50 x 1	129.58	81.25	60.75	41.5	265
MA050032	50 x 1 1/4	132.33	80.5	60.75	41.5	269
MA050040	50 x 1 1/2	124.08	79.5	60.75	41.5	268
MA050050	50 x 2	127.08	79.5	60.75	41.5	274
MA063040	63 x 1 1/2	166	98.5	82.75	64.5	402
MA063050	63 x 2	164.75	97.5	82.75	64.5	409
MA063065	63 x 2 1/2	164.25	99	82.75	64.5	407
MA075050	75 x 2	171.95	117.5	107.5	76	677
MA075065	75 x 2 1/2	172.95	117.5	107.5	76	687
MA075080	75 x 3	176.7	116.5	107.5	76	693
MA090050	90 x 2	199.83	136.5	131.25	94	996
MA090065	90 x 2 1/2	201.33	137.5	131.25	94	1030
MA090080	90 x 3	207.33	138	131.25	94	1048
MA090100	90 x 4	213.58	137	131.25	94	1070
MA110050	110 x 2	241.8	164	166.5	112.5	1142
MA110080	110 x 3	250.55	164.25	166.5	112.5	1123
MA110100	110 x 4	257.05	164.25	166.5	112.5	1168
