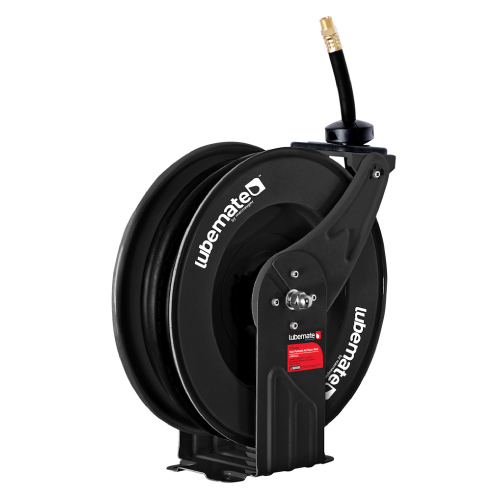

Lubemate Twin Pedestal Hose Reel – Air / Water / Oil / Grease

The Lubemate L-T Series Twin Pedestal hose reel has a robust, all-steel construction, reinforced with stamped ribs to provide exceptional strength and stability. The powder-coated, corrosionresistant finish combined with an enclosed spring design, increases longevity in the reel’s lifespan. The guide arm can be adjusted in different positions to accommodate various mounting structures and its narrow footprint allows for multiple reels to take up only minimal space. The Lubemate Twin Pedestal hose reel offers a reliable and cost-effective solution for your workshop.

  • Heavy duty steel frame – designed for robust application
  • Corrosion resistant – powder coated body
  • Long-lasting spring – fully enclosed and lubricated
  • Flexible positioning of guide arm for mounting on bench, ceiling or wall
Fluid Air / Water Air / Water Oil Grease Grease
Hose ID (inch) 3/8″ 1/2″ 1/2″ 1/4″ 3/8″
Length 15m 15m 15m 15m 15m
Hose Material NBR rubber NBR rubber S.A.E. R1 wire braid S.A.E. R2 wire braid S.A.E. R2 wire braid
Pressure 290 psi 290 psi 2300 psi 5800 psi 5800 psi
Temperature 80 80 100 100 100
Inlet 3/8″ BSPT (M) 1/2″ BSPT (M) 1/2″ BSPT (M) 1/4″ BSPT (M) 3/8″ BSPT (M)
Outlet 3/8″ BSPT (M) 1/2″ BSPT (M) 1/2″ BSPT (M) 1/4″ BSPT (M) 3/8″ BSPT (M)
