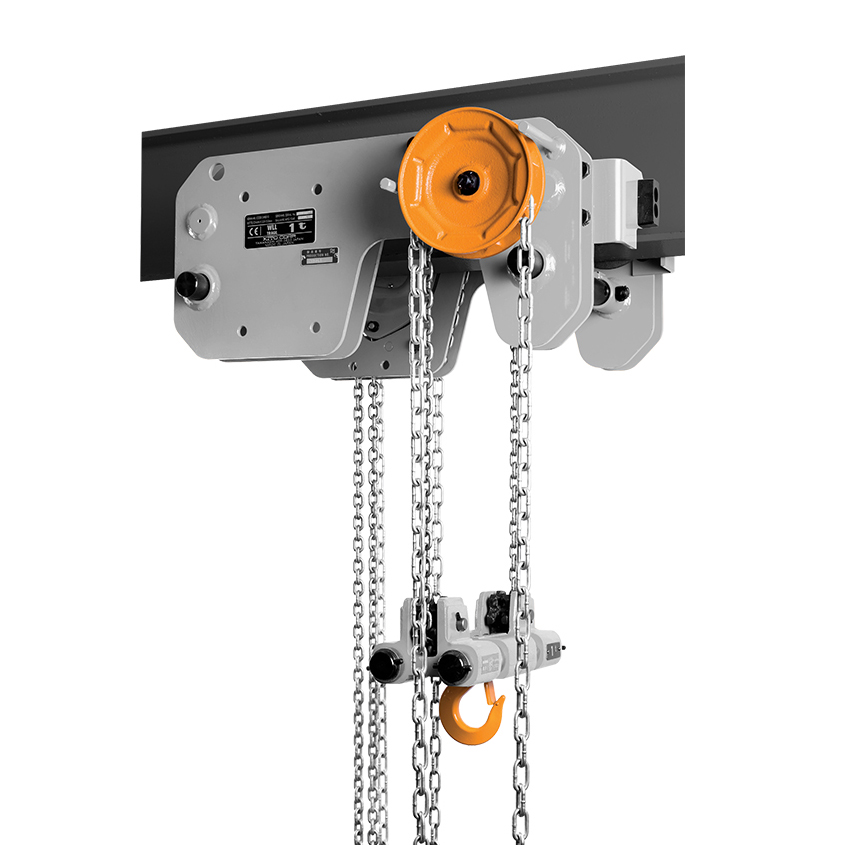

Low Headroom Chain Block – W6 Series

Built around the quality chain block hoist with headrooms as low as 4.5 inches, it is ideal for demanding industrial lifting applications where space is extra tight.

• Ultra low-profile lifting & maximum hook travel.
• Permanently attached hand geared trolley.
• Heavy-duty wheels & steel side plates.
• Maintenance-free sealed trolley bearings.
• Adjustable for tapered or flat flanged beams.

Operation

• Hand chain operated.
• Reduced operator fatigue through efficient drive train.

Operating Conditions

• Recommended for -20°C to +60°C

Hook

• Forged, heat-treated, opens gradually when overloaded.
• Self-closing heavy-duty hook latch.

Brake

• Double pawl springs for extremely reliable operation and instant brake activation enclosed to protect from dust, rain and dirt.

Gears

• Double reduction gearing requiring very low effort to operate.
• Induction heat-treated and case-hardened enclosed to protect from dust and water.

Standards

• Conforms to 1418.2 standards.
• At rated capacity, load-bearing parts are only stressed to 25% of their limit.

Bearings

• Maintenance-free sealed bearings increase reliability and reduce pull force required to lift loads

Body

• Durable all-steel construction.
• Rugged gear case and hand wheel cover.
• Compact design for low headroom and lightweight portability.

Capacity

• 1 to 10 metric tonnes

Hand Chain

• High-quality steel.

Low Headroom Features

• Headroom as low as 4.5″.
• Built-in trolley with cast wheels, sealed bearings and steel side plates for heavy-duty applications

Load Chain

• Heat-treated.
• Low-weight manganese alloy steel.
• High-impact steel chain guide.
• Standard Lift: 3M.

Options

• Chain bag to keep chain clean and out of the way
• Corrosion resistant chain for tough environments
• Custom lift chain lengths to suit your requirements
