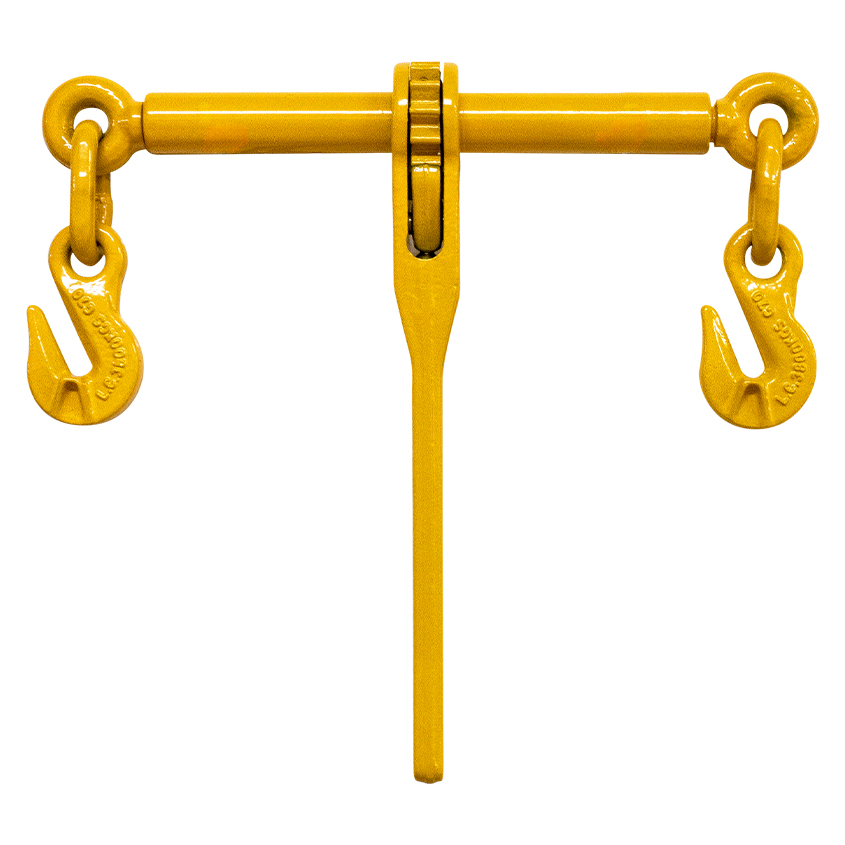

Load Binder Ratchet Lever Style
Ratchet style load binder with winged grab hooks combined with Grade 70 chain are an effective way to restraint heavy loads for transport operations, with the benefit of high pretension and the added safety of screw stops to ensure full thread contact while in use.
- Manufactured from drop-forged steel, quenched and tempered.
- Marked with chain size, lashing capacity, grade, batch numbered and branded Austlift for traceability.
- All load binders come with swivel winged claw hooks to achieve full lashing capacity.

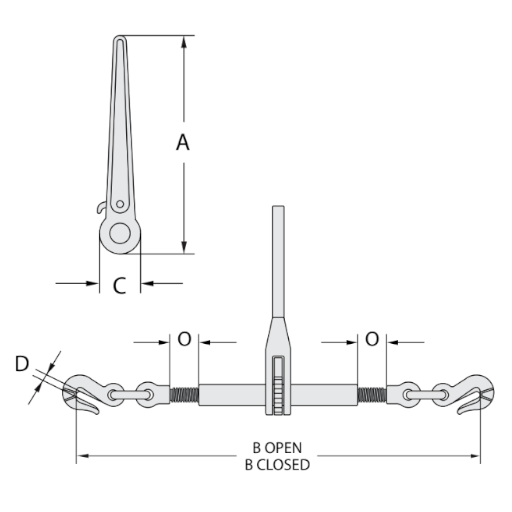

| CODE | CHAIN SIZE (mm) | LASHING CAPACITY (kg) | MBF | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| G70 CHAIN | G80 CHAIN | (kN) | (kg) | A | B OPEN | B CLOSED | C | D | ||
| 202206 | 6 | 2300 | 2300 | 46 | 1.69 | 226 | 515 | 415 | 42 | 10 |
| 202208 | 8 | 3800 | 4000 | 78 | 4.9 | 335 | 695 | 535 | 55 | 10.5 |
| 202210 | 10 | 6000 | 6400 | 126 | 5.4 | 355 | 775-783 | 610-623 | 59 | 12 |
| 202213 | 13 | 9000 | 9800 | 200 | 7.5 | 375 | 857-870 | 697-700 | 64 | 15 |
