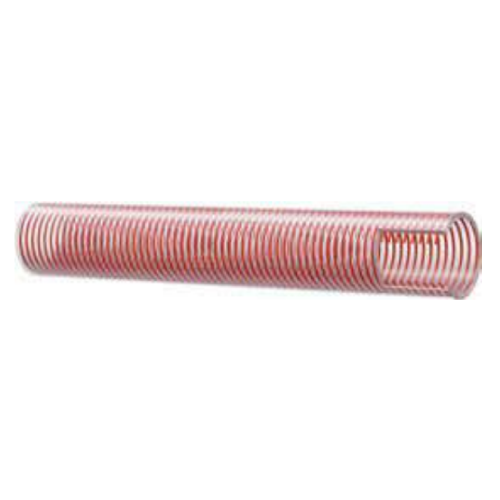

Liquid Food Suction & Delivery Heavy Duty – Alfagomma 468OH

468OH Cross Section

Construction: transparent PVC – abrasion and ozone resistant.
Reinforcement: red shock resistant rigid PVC
Application: liquid food and alcoholic beverages suction and delivery – max 20%.
Sterilise with 5% soda solution.
Constant Operation: -5°C +60°C (+23°F +140°F)

Internal Diameter Working Pressure Burst Pressure Bend Radius Vacuum Weight
ID mm ID inch bar psi bar psi mm in % kg/m lb/ft
25 1″ 7 100 21 300 125 4.92 90 0.405 0.28
32 1 1/4″ 7 100 21 300 160 6.3 90 0.53 0.36
38 1 1/2″ 7 100 21 300 190 7.48 90 0.745 0.51
40 1 9/16″ 7 100 21 300 200 7.87 90 0.765 0.52
51 2″ 7 100 21 300 255 10.04 90 1.015 0.69
60 2 3/8″ 7 100 21 300 300 11.81 90 1.475 1.00
63 2 1/2″ 6 90 18 270 315 12.40 90 1.525 1.03
76 3″ 5 75 15 225 380 14.96 90 1.93 1.30
80 3 1/8″ 5 75 15 225 400 15.75 90 2.135 1.44
102 4″ 4 60 12 180 510 20.08 90 3.355 2.26
120 4 3/4″ 3 45 9 135 600 23.62 80 3.645 2.45
