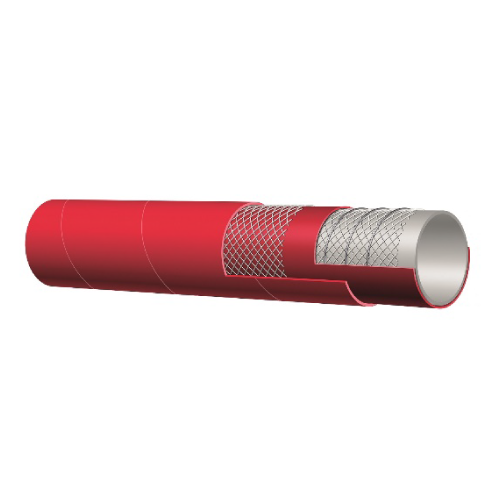

Liquid Food Suction & Delivery CIP 10 Bar (150 psi) FDA – Alfagomma 404LH
Tube: White food grade EPDM.
Reinforcement: High tensile textile cords with embedded steel helix wire.
Cover: Red EPDM – abrasion and ozone resistant.
Application: Liquid food and alcoholic beverages CIP applications max 50% ABV. Sterilise with 110°C steam (+230°F) for 10 minutes or with 5% soda solution.
Working Pressure: 10 bar / 150 psi
Safety Factor: 3:1
Coil Length: 30.5m
Constant Operation: -30°C +110°C (-22°F +230 °F)
Approvals: FDA approval and IANESCO type approval for liquid food transfer
| Internal Diameter | Outer Diameter | Bend Radius | Vacuum | Weight | ||||
| ID mm | ID inch | OD mm | OD inch | mm | inch | % | kg/m | lb/ft |
| 25 | 1″ | 36 | 1.42 | 75 | 2.95 | 100 | 0.69 | 0.46 |
| 38 | 1 1/2″ | 49 | 1.93 | 114 | 4.49 | 100 | 0.98 | 0.66 |
| 51 | 2″ | 63 | 2.48 | 153 | 6.02 | 100 | 1.62 | 1.09 |
| 76 | 3″ | 89 | 3.50 | 228 | 8.98 | 90 | 2.55 | 1.71 |
| 102 | 4″ | 116 | 4.57 | 306 | 12.05 | 90 | 3.54 | 2.38 |
