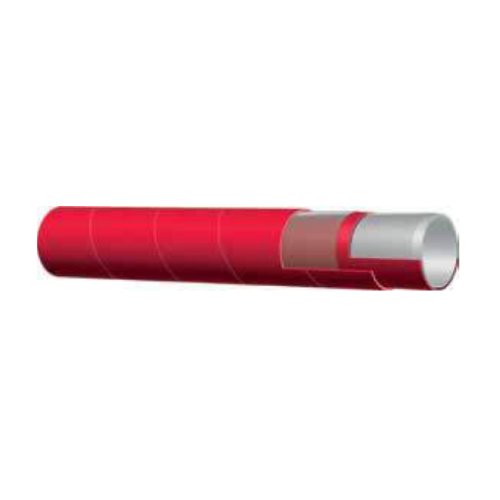

Liquid Food Delivery 10 Bar (150 psi) – Alfagomma 452LH
Tube: White NR
Reinforcement: High tensile textile cords.
Cover: Red NBR/PVC – abrasion and ozone resistant.
Application: Liquid food and alcoholic beverages delivery max 50% ABV.
Sterilise with 110°C steam for 10 minutes or with 5% soda solution.
Working Pressure: 10 bar / 150 psi
Constant Operation: -30°C +80°C (-22°F +176°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | mm | kg/m | lb/ft |
| 13 | 1/2″ | 23 | 0.91 | 5 | 0.38 | 0.26 |
| 19 | 3/4″ | 31 | 1.22 | 6 | 0.61 | 0.41 |
| 25 | 1″ | 37 | 1.46 | 6 | 0.76 | 0.52 |
| 32 | 1 1/4″ | 44 | 1.73 | 6 | 0.93 | 0.63 |
| 38 | 1 1/2″ | 50 | 1.97 | 6 | 1.08 | 0.73 |
| 51 | 2″ | 65 | 2.56 | 7 | 1.69 | 1.14 |
| 63 | 2 1/2″ | 77 | 3.03 | 7 | 2.03 | 1.37 |
| 76 | 3″ | 92 | 3.62 | 8 | 2.81 | 1.89 |
