Laser Cut / Quik Tip – High Pressure Nozzles – Aussie Pumps

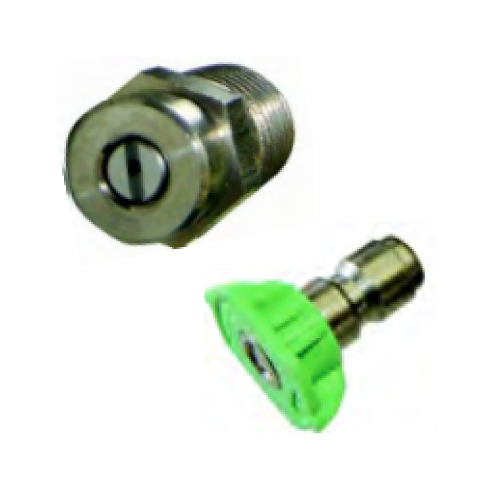

Look up size & angle of required nozzle in selection table then add a ‘M’ for a Laser Cut nozzle or ‘Q’ for a Quik Tip nozzle.
Laser Cut (Inlet: 1/4″ NPT)
Add ‘M’ to code (eg C900080M)
(NOT AVAILABLE IN 40°)
Quik Tip
Add ‘Q’ to code (eg C915040Q)
| Size | 0° (pencil jet) | 15° (fan) | 25° (fan) | 40° (fan) |
| 020 | C900020 | C915020 | C925020 | C940020 |
| 025 | C900025 | C915025 | C925025 | C940025 |
| 030 | C900030 | C915030 | C925030 | C940030 |
| 035 | C900035 | C915035 | C925035 | C940035 |
| 040 | C900040 | C915040 | C925040 | C940040 |
| 045 | C900045 | C915045 | C925045 | C940045 |
| 050 | C900050 | C915050 | C925050 | C940050 |
| 055 | C900055 | C915055 | C925055 | C940055 |
| 060 | C900060 | C915060 | C925060 | C940060 |
| 065 | C900065 | C915065 | C925065 | C940065 |
| 070 | C900070 | C915070 | C925070 | C940070 |
| 075 | C900075 | C915075 | C925075 | C940075 |
| 080 | C900080 | C915080 | C925080 | C940080 |
| 085 | C900085 | C915085 | C925085 | C940085 |
| 090 | C900090 | C915090 | C925090 | C940090 |
| 095 | C900095 | C915095 | C925095 | C940095 |
| 100 | C900100 | C915100 | C925100 | C940100 |
| 105 | C900105 | C915105 | C925105 | C940105 |
| 110 | C900110 | C915110 | C925110 | C940110 |
| 115 | C900115 | C915115 | C925115 | C940115 |
| 120 | C900120 | C915120 | C925120 | C940120 |
| 125 | C900125 | C915125 | C925125 | C940125 |
