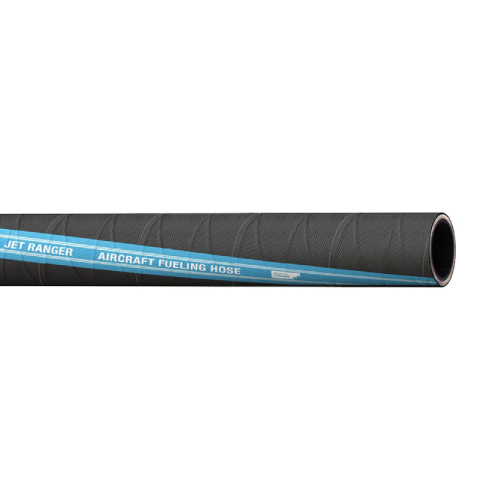

Jet Ranger™ Aircraft Refuelling – Continental
Tube: Black Nitrile synthetic rubber
Cover: Black Wingprene® (ORS) static dissipating/static conductive synthetic rubber (wrapped finish)
Reinforcement: Spiral-plied (4) synthetic fabric and one nylon br
Application: Used in the fueling and defueling of commercial and private aircraft. Resistant to jet fuel and higher aromatic aviation gasolines. Also for use on hydrant service. Hose meets El 1529-7th edition. 2014, ISO 1825:2010/C/OMEGA, and N.F.P.A Bulletin #407 (2017 revision).
Working Pressure: 300 psi / 2.07 Mpa
Temperature: -37°C to +93°C (-35°F to 200°F)
| Inner Diameter | Outer Diameter | Weight | |||
| Inch | mm | Inch | mm | lbs./ft. | kg/m |
| 1 1/2 | 38.1 | 2.06 | 52.3 | 0.86 | 1.28 |
| 1 31/32 | 50.0 | 2.57 | 65.3 | 1.14 | 1.70 |
| 2 1/2 | 63.5 | 3.16 | 80.3 | 1.53 | 2.28 |
| 3 | 76.2 | 3.64 | 92.5 | 1.79 | 2.66 |
| 4 | 101.6 | 5.00 | 127 | 3.70 | 5.51 |
