Indalex Aluminium Platform Ladder 150/180kg Rated – PROP-A
- Robust heavy duty ladders designed to incorporate the best methods of joining the industrial grade aluminium structural components to prevent joints loosening.
- The steps are fastened to the side rails with solid aluminium rivets.
- The rear section utilises a 3-piece rung joint system.
- Anodised for better corrosion resistance and lower retention of dirt and grime.
- Extra strong spreader bars and foot covers have been used to enhance the life of the ladder.
- Manufacturer’s Lifetime Warranty for faulty materials or workmanship is provided.
- Made to Australian Standard – AS/NZS 1892.1
- 660mm x 400mm Platform Size

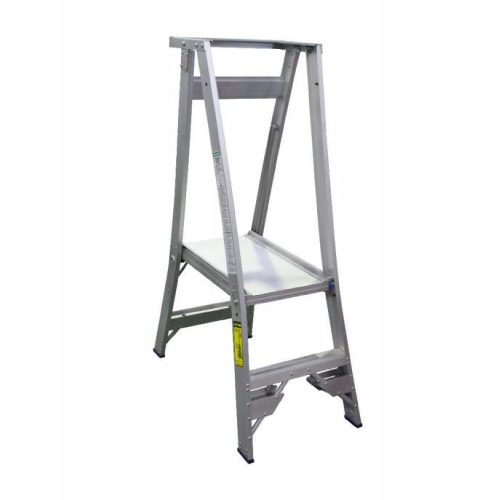

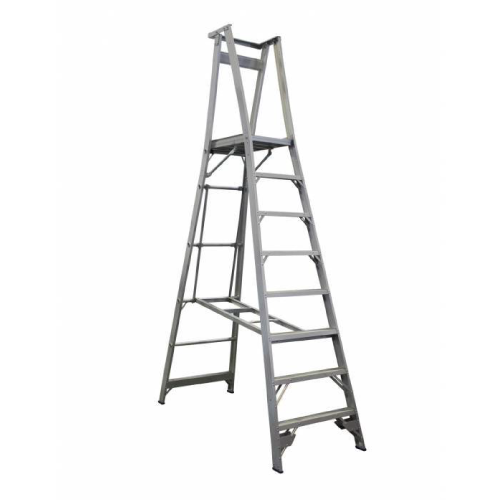

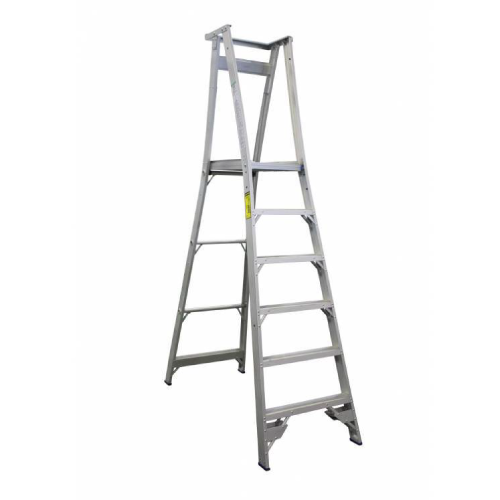

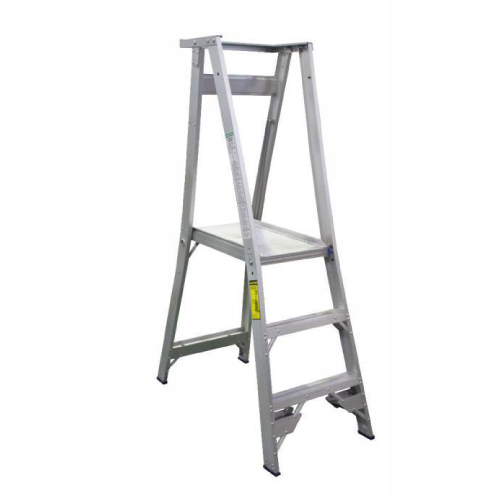

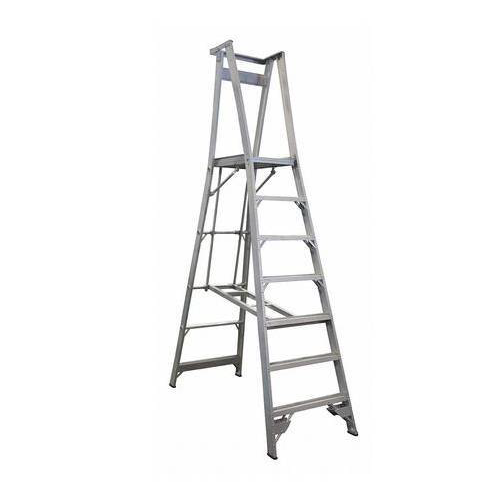

| Model | PROP5/2 | PROP6/3 | PROP8/5 | PROP9/6 | PROP10/7 | PROP11/8 | PROP7/4 | PROP12/9 | PROP13/10 | PROP15/12 |
| Ladder Height | 1.5 m | 1.8 m | 2.4 m | 2.7 m | 3.0 m | 3.4 m | 2.1 m | 3.7 m | 4.0 m | 4.6 m |
| Platform Height | 0.6 m | 0.9 m | 1.5 m | 1.8 m | 2.1 m | 2.4 m | 1.2 m | 2.7 m | 3.0 m | 3.6 m |
| Approx. Weight | 11 kg | 12 kg | 14 kg | 16 kg | 20 kg | 22 kg | 13 kg | 24 kg | 25 kg | 30 kg |
| Max. Reach | 2.6 m | 2.9 m | 3.5 m | 3.8 m | 4.1 m | 4.4 m | 3.2 m | 4.7 m | 5.0 m | 5.6 m |
| Load Rating | 180 kg | 180 kg | 180 kg | 180 kg | 180 kg | 180 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Platform Work Area | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm | 660 x 400 mm |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Footprint | 580 x 990 mm | 620 x 1140 mm | 720 x 1450 mm | 760 x 1590 mm | 800 x 1730 mm | 850 x 1890 mm | 670 x 1290 mm | 890 x 2030 mm | 940 x 2190 mm | 1030 x 2490 mm |
| Warranty | Lifetime | Lifetime | Lifetime | Lifetime | Lifetime | Lifetime | Lifetime | Lifetime | Lifetime | Lifetime |
| No. of Steps | 2 | 3 | 5 | 6 | 7 | 8 | 4 | 9 | 10 | 12 |
