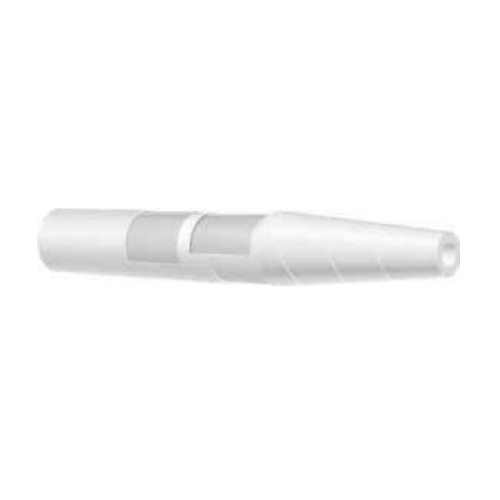

Hot Water Wash Down 10 Bar (150 psi) – Alfagomma 351LL
Tube: white EPDM.
Reinforcement: high tensile textile cords.
Cover: white EPDM – heat, abrasion and ozone resistant.
Application: hot and cold water wash down in paper mills and the food industry where a built in rubber nozzle is required to avoid floor and equipment damage.
Working Pressure: 10 bar / 150 psi
Burst Pressure: 40 bar / 600 psi
Constant Operation: -40 °C +120 °C (-40 °F +248 °F)
| Internal Diameter | Outer Diameter | Wall Thickness | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | mm | kg/m | lb/ft |
| 19 | 3/4″ | 31 | 1.22 | 6 | 0.63 | 0.43 |
| 25 | 1″ | 37 | 1.46 | 6 | 0.78 | 0.53 |
| 32 | 1 1/4″ | 46 | 1.81 | 7 | 1.14 | 0.77 |
| 38 | 1 1/2″ | 52 | 2.05 | 7 | 1.34 | 0.91 |
