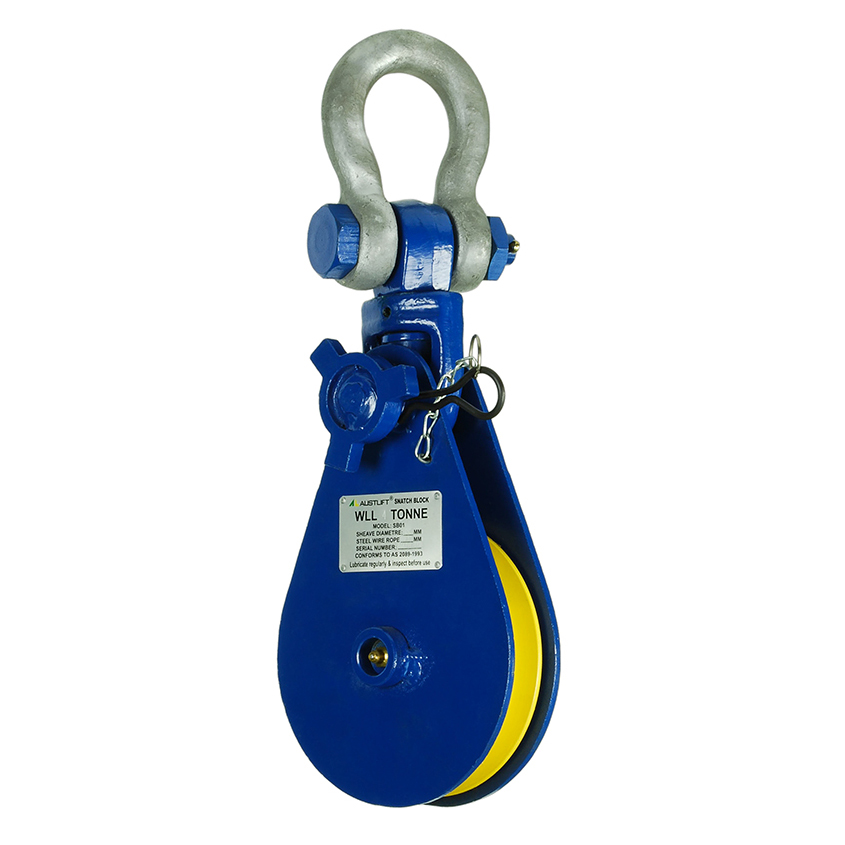

Heavy Duty Snatch Block – Swivel Shackle Type
Austlift manually operated snatch blocks are popular in the mining, construction, off shore rigging and heavy duty lifting applications.
- Made from hi-tensile steel body and cast steel sheave

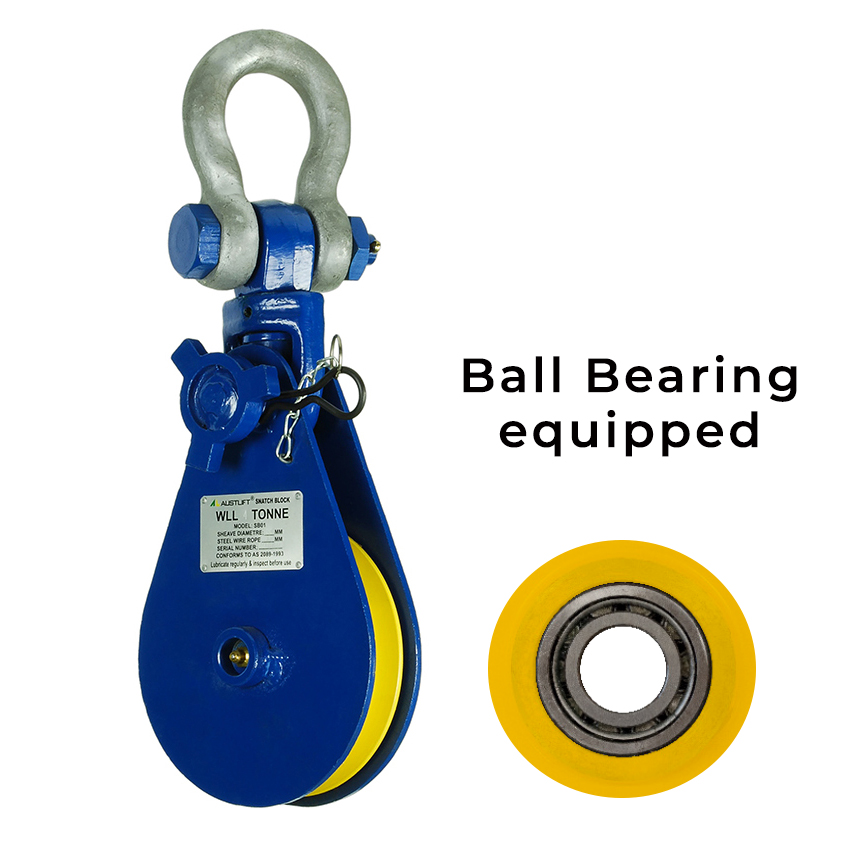

- Grease nipples fitted with roller bearings (2-50T)
- Blocks come with swivel bow shackle
- Drop forged, heat treated swivel shackle

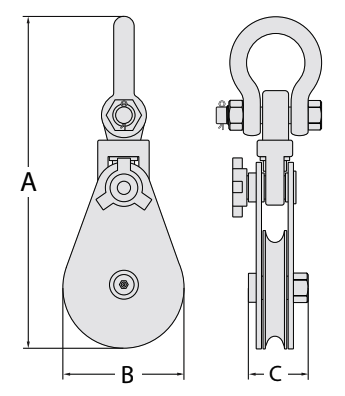

| Code | WLL | SHEAVE DIA. | WIRE ROPE DIA. | UNIT WEIGHT | DIMENSIONS (mm) | ||
|---|---|---|---|---|---|---|---|
| T | mm | mm | kg | A | B | C | |
| 140102 | 2 | 75 | 8-9 | 4 | 286 | 82 | 70 |
| 140103 | 4 | 115 | 10-13 | 6.1 | 345 | 120 | 70 |
| 140104 | 4 | 152 | 10-13 | 13.8 | 400 | 160 | 70 |
| 140106 | 6 | 152 | 13-16 | 15 | 480 | 160 | 94 |
| 140108 | 8 | 203 | 16-18 | 16 | 530 | 210 | 93 |
| 140110 | 10 | 254 | 18-20 | 37.5 | 680 | 260 | 115 |
| 140112 | 12 | 305 | 20-22 | 56 | 767 | 310 | 133 |
| 140115 | 15 | 305 | 24-26 | 65 | 788 | 310 | 133 |
| 140122 | 22 | 355 | 28-32 | 90 | 952 | 365 | 140 |
| 140130 | 30 | 510 | 32-36 | 210 | 1256 | 514 | 162 |
| 140150 | 50 | 610 | 44-50 | 418 | 1525 | 625 | 240 |
