Group 2 Height Bars – Hanger Beam

Group 2 Height Bars - Hanger Beam
Group 2 Height Bars - Hanger Beam - Image 2
  • Maximum post height 8 metres
  • Max. height bar clearance 7.2 metres
  • Max. post span 12 metres
  • Max. height bar length 11.5 metres
  • Two-piece extruded aluminium height bar
  • Hanger kits included 2 x KIT22
  • Engineered to wind Region A, Terrain Category 2
  • Engineered to wind Region B, Terrain Category 2 available upon request
  • Site specific certification available. Fees apply
  • with AS/NZS 2890.1:2004

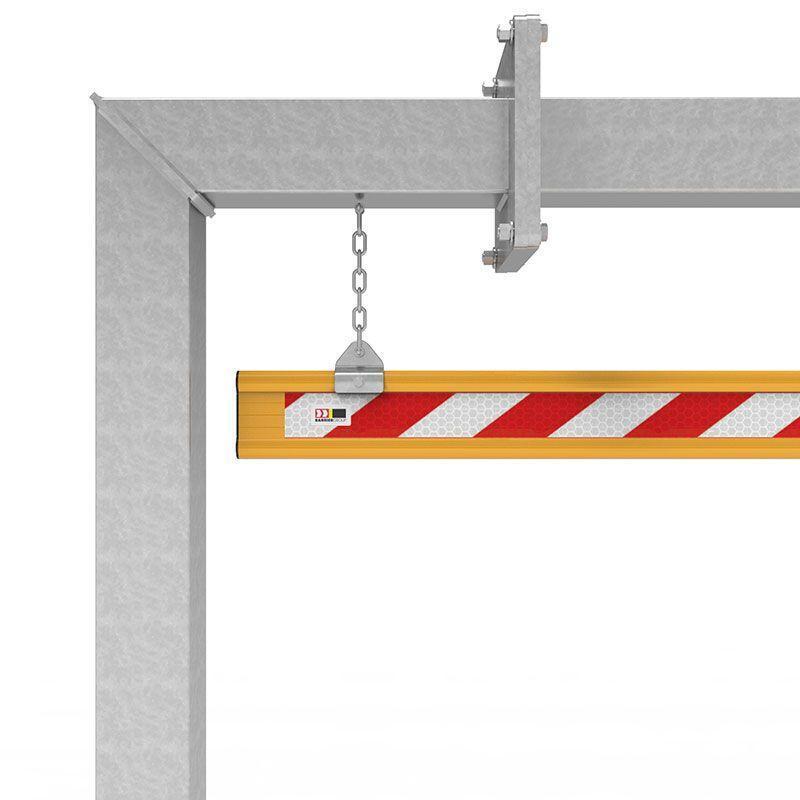

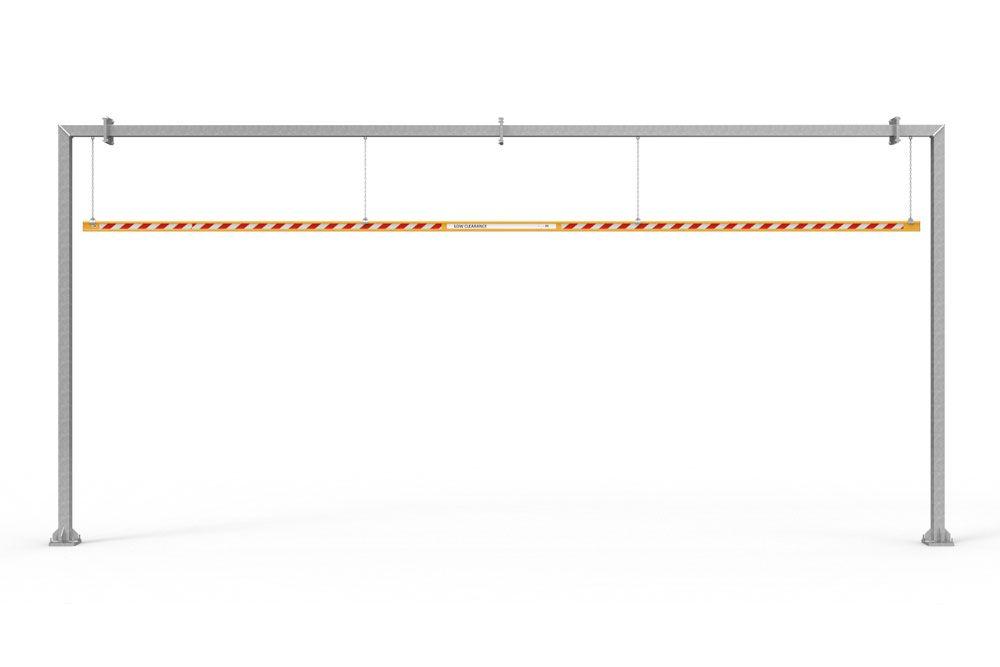

Suspended height restriction bar with hanger assemblies and chains

Group 2 height bars include those that exceed the height or width dimensions of our Group 1 design. Group 2 height bar structures are engineered ‘up to’ a maximum height of 8 metres or a width of 11.5 metres, they tend to be site specific and as such are made to order from stock components. They utilise an extruded aluminium height bar rail while the supporting structure is hot dip galvanised mild steel SHS.

Height Bars

Code Description Material Finish Length Weight
HBHR Group 2 Hanger Beam – 12m MAX Height bar – 145 x 40 extruded aluminium. Post and hanger beam– Hot Dip galvanised Post Yellow powder coat rail. Galvanised steel chain. Cast Aluminium hanger – –
HB9-PA Height Bar 9m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit Height bar – 145 x 40 extruded aluminium. Post and hanger beam– Hot Dip galvanised Post Yellow powder coat rail. Galvanised steel chain. Cast Aluminium hanger 9 m 43.6 kg
HB10-PA Height Bar 10m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit Height bar – 145 x 40 extruded aluminium. Post and hanger beam– Hot Dip galvanised Post Yellow powder coat rail. Galvanised steel chain. Cast Aluminium hanger 10 m 46.34 kg
HB11-PA Height Bar 11m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit Height bar – 145 x 40 extruded aluminium. Post and hanger beam– Hot Dip galvanised Post Yellow powder coat rail. Galvanised steel chain. Cast Aluminium hanger 11 m 53.9 kg
HB12-PA Height Bar 11.5m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit Height bar – 145 x 40 extruded aluminium. Post and hanger beam– Hot Dip galvanised Post Yellow powder coat rail. Galvanised steel chain. Cast Aluminium hanger 11.5 m 55.4 kg
HBPSM2 Height Bar Post – Surface Mounted Group 2 Height bar – 145 x 40 extruded aluminium. Post and hanger beam– Hot Dip galvanised Post Yellow powder coat rail. Galvanised steel chain. Cast Aluminium hanger – –
RC350 In-Ground Reo Cage M20 x 350 x 1100mm Height bar – 145 x 40 extruded aluminium. Post and hanger beam– Hot Dip galvanised Post Yellow powder coat rail. Galvanised steel chain. Cast Aluminium hanger – –
