Group 1 Height Bars – Cantilever Hanger
- Maximum height clearance 2.6 metres
- Max. post span 9 metres
- Max. height bar length 8 metres
- Single piece extruded aluminium height bar
- Standard Hanger kit included 1x KIT22. HB7-PA and HB8-PA Hanger kit included 2x KIT22
- Site specific certification available. Fees apply
- Complies with AS/NZS 2890.1:2004

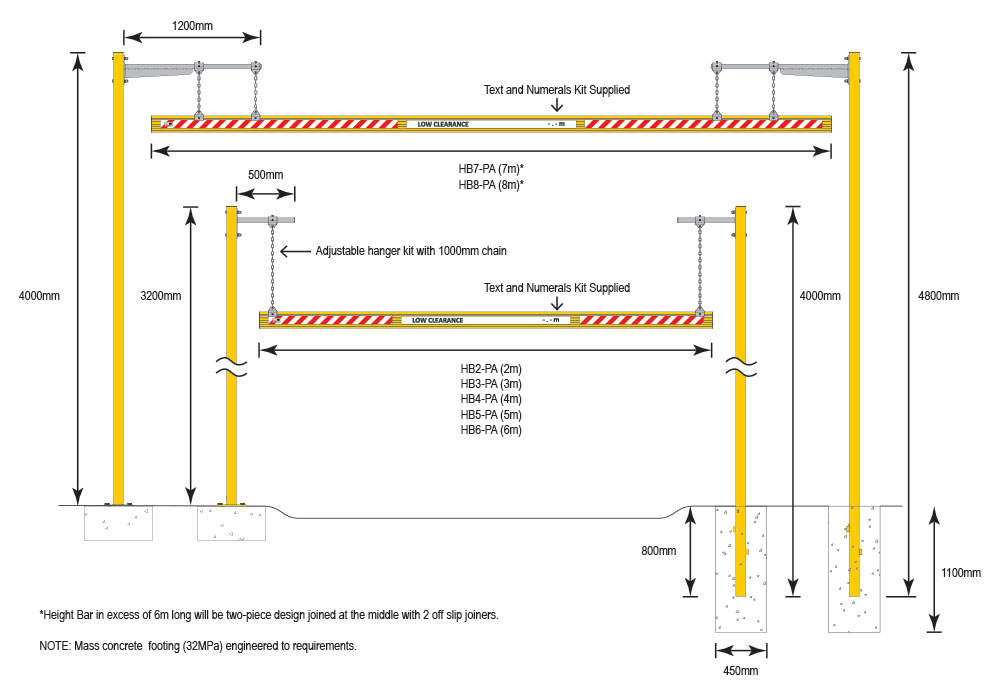

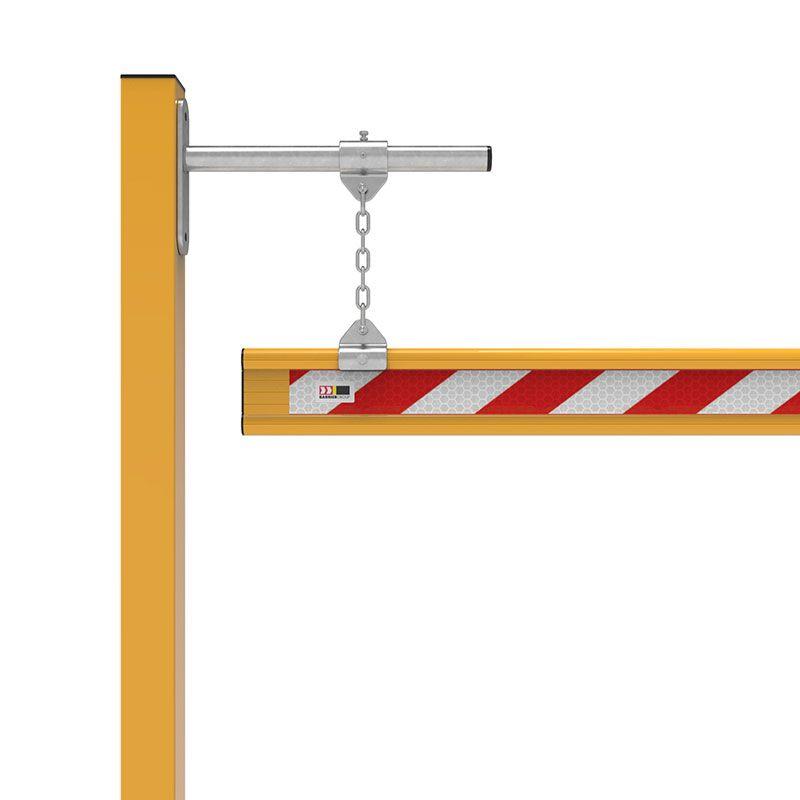

Suspended height restriction bar with hanger assemblies and chains
Our Group 1 height bars are available in a range of standard lengths from 2 metres all the way up to 8 metres. Each height bar is supplied with the necessary chain suspension kits and “LOW CLEARANCE” text and a number stickers kit.
Use height bars at locations where vehicles first enter an undercover area or encounter an overhead obstruction, where the clearance in either case is: (i) 3 metres or less if only cars or light vans are likely to use the facility or (ii) 4.6 metres or less in all other areas.
For Fixing HBS500 or HBS1200 onto:
- Group 1 Height Bar Post– Use M12 x 130mm Bolts (supplied)
- Brick or Concrete wall – Use M12 Dyna Bolts or M12 Concrete Screws
Engineered Height Bars available upon request.
HB7-PA & HB8-PA must use HBS1200.
Height Bars
| Code | Description | Material | Finish | Length | Weight |
| HB2-PA | Height Bar 2m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit | 145 x 40 extruded aluminium | Cast Aluminium | 2 m | 7.9 kg |
| HB3-PA | Height Bar 3m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit | 145 x 40 extruded aluminium | Cast Aluminium | 3 m | 10.7 kg |
| HB4-PA | Height Bar 4m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit | 145 x 40 extruded aluminium | Cast Aluminium | 4 m | 13.4 kg |
| HB5-PA | Height Bar 5m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit | 145 x 40 extruded aluminium | Cast Aluminium | 5 m | 16.7 kg |
| HB6-PA | Height Bar 6m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit | 145 x 40 extruded aluminium | Cast Aluminium | 6 m | 19.6 kg |
| HB7-PA | Height Bar 7m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit | 145 x 40 extruded aluminium | Cast Aluminium | 7 m | 33.4 kg |
| HB8-PA | Height Bar 8m – Powder Coated Aluminium with Text, Numerals, and Hanger Kit | 145 x 40 extruded aluminium | Cast Aluminium | 8 m | 36 kg |
| HBS500 | Height Bar Adjustable Standoff Bracket each – 500mm | – | – | – | – |
| HBS1200 | Height Bar Stand-off Bracket – 1200mm – Hot Dipped Galvanised | – | – | – | – |
| KIT22 | Height Bar Hanger Kit – Cast Aluminium | – | – | – | – |
| HBPBG | Height Bar Post Below Ground – Powder Coated Yellow | Hot Dip galvanised Post | Yellow powder coat | – | – |
| HBPBG-EH | Height Bar Post – Below Ground Group 1 – Extra Height | Hot Dip galvanised Post | Yellow powder coat | – | – |
| HBPSM1 | Height Bar Post – Surface Mounted Group 1 | Hot Dip galvanised Post | Yellow powder coat | – | – |
| HBPSM1-EH | Height Bar Post – Surface Mounted Group 1 – Extra Height | Hot Dip galvanised Post | Yellow powder coat | – | – |
