Grade S Shackle – Dee Type, Blue Screw Pin

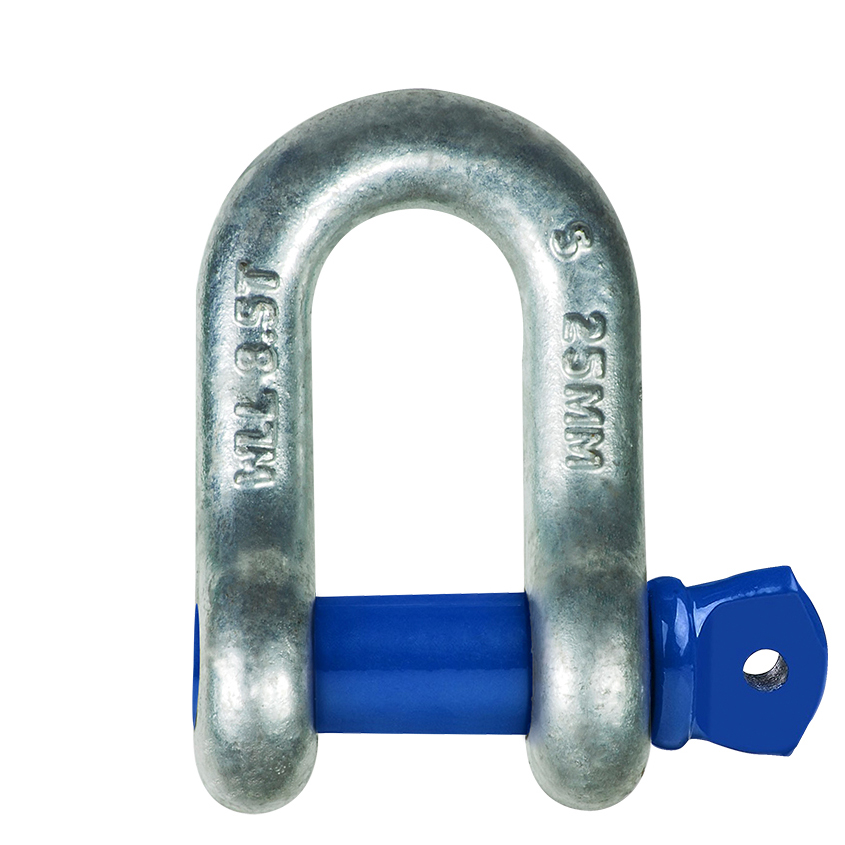

Austlift blue screw pin dee shackles are most commonly used for lifting applications, providing connections to chain, wire rope and other rated fittings within the marine, agricultural, mining and engineering industries.
- Conforms to AS2741 manufactured from Grade S material in dee configuration with screw pin hot dipped galvanised.
- Marked with working load limit in tonnes, quality grade, batch numbered, nominal size, in millimetre and supplier identification. Test certificates are available upon request. Also available in black colour in all sizes upon request.
- Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
- Suitable for lifting applications.

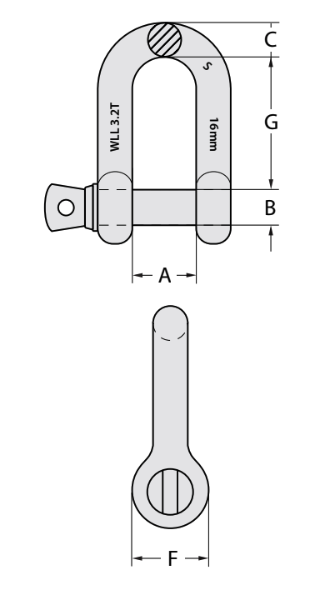

| CODE | SIZE (mm) | WLL (T) | Wt. (kg) | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | F | G | ||||
| 504006 | 6 | 0.5 | 0.05 | 12 | 8 | 6 | 17 | 22 |
| 504008 | 8 | 0.75 | 0.09 | 13 | 10 | 8 | 21 | 26 |
| 504010 | 10 | 1 | 0.14 | 17 | 11 | 10 | 25 | 32 |
| 504011 | 11 | 1.5 | 0.17 | 18 | 13 | 11 | 27 | 37 |
| 504013 | 13 | 2 | 0.29 | 21 | 16 | 13 | 33 | 41 |
| 504016 | 16 | 3.2 | 0.63 | 27 | 19 | 16 | 40 | 51 |
| 504019 | 19 | 4.7 | 1.02 | 32 | 22 | 19 | 48 | 60 |
| 504022 | 22 | 6.5 | 1.53 | 37 | 25 | 22 | 54 | 71 |
| 504025 | 25 | 8.5 | 2.41 | 43 | 29 | 25 | 60 | 81 |
| 504029 | 29 | 9.5 | 3.09 | 46 | 32 | 29 | 67 | 90 |
| 504032 | 32 | 12 | 4.31 | 52 | 35 | 32 | 76 | 100 |
| 504035 | 35 | 13.5 | 6.01 | 57 | 38 | 35 | 84 | 113 |
| 504038 | 38 | 17 | 8.03 | 60 | 44 | 38 | 92 | 124 |
| 504044 | 44 | 25 | 11.48 | 73 | 51 | 44 | 110 | 146 |
| 504051 | 51 | 35 | 20.42 | 83 | 57 | 51 | 127 | 171 |
| 504057 | 57 | 42.5 | 26.06 | 95 | 63 | 57 | 143 | 181 |
| 504063 | 63 | 55 | 38.8 | 105 | 70 | 63 | 152 | 203 |
