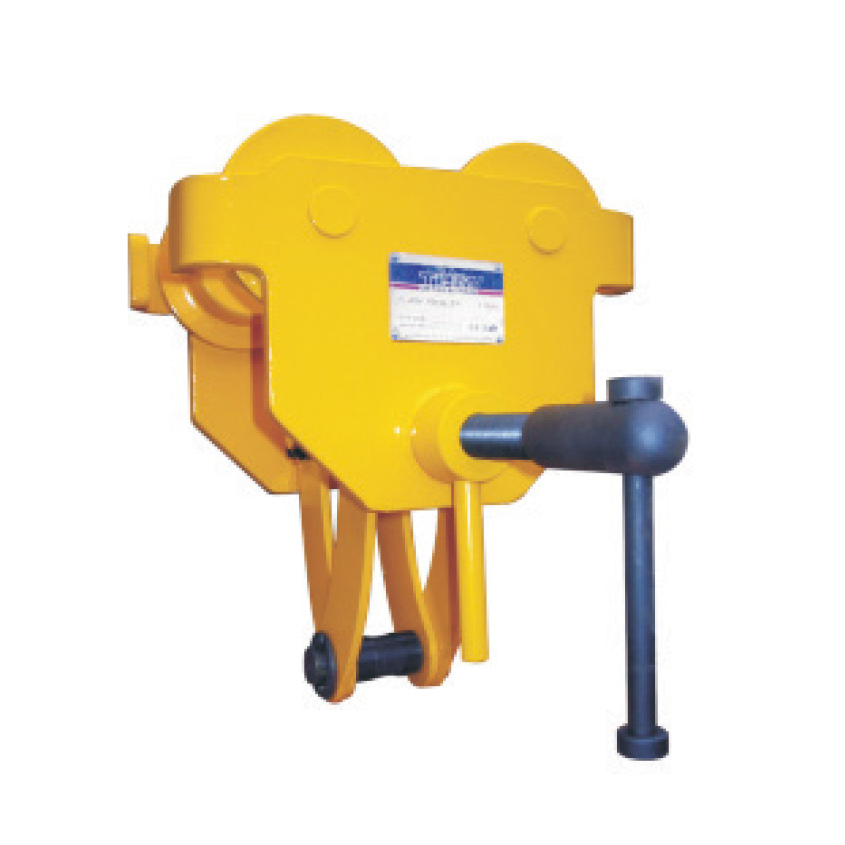

Girder Trolley with Clamp
The easy installation to any beam makes it suitable for fixing to any moving hoist, pulleys and loads. It can be adjusted quickly to the beam width by turning the main spindle.
- Identification tag with serial number

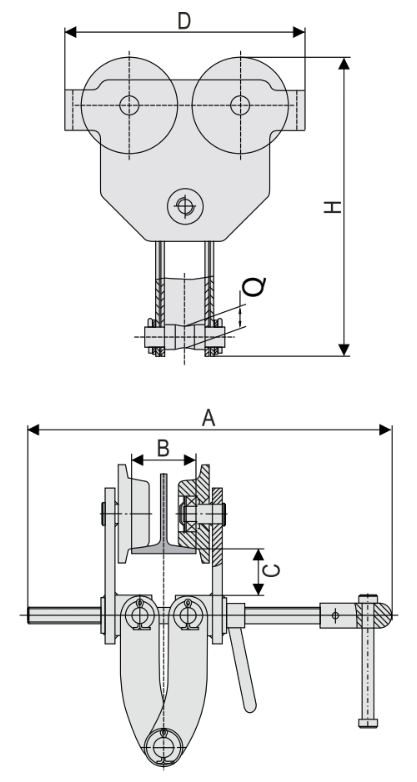

| CODE | WLL (T) | BEAM SIZE (mm) | Wt. (kg) | Min. RADIUS OF CURVE (m) | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | H | Q | |||||
| 131210 | 1 | 64-203 | 10 | 1.1 | 324 | 64-203 | 26 | 174 | 217 | 20 |
| 131215 | 2 | 76-203 | 18 | 1.3 | 340 | 76-203 | 27 | 280 | 274 | 20 |
| 131220 | 3 | 76-203 | 29 | 1.4 | 345 | 76-203 | 31 | 340 | 305 | 22 |
| 131225 | 5 | 100-305 | 49 | 1.5 | 465 | 100-305 | 50 | 385 | 399 | 30 |
| 131230 | 10 | 150-305 | 106 | 1.9 | 488 | 127-305 | 60 | 470 | 462 | 39 |
