General Purpose Tubing – PVC FDA – Alfagomma 490OO

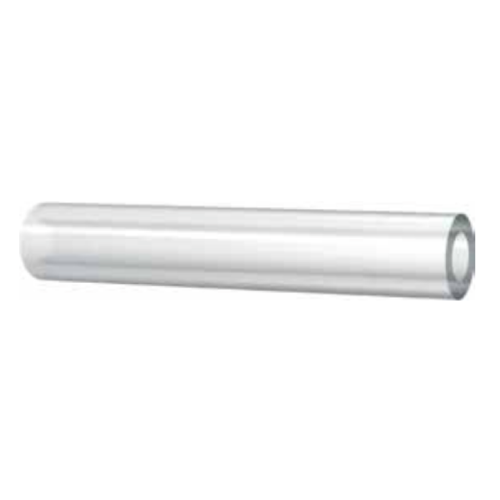

Tube: Transparent PVC.
Application: General purpose.
Sterilise with 5% soda solution.
Constant Operation: -5°C +60°C (+23°F +140°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | mm | kg/m | lb/ft |
| 3 | 1/8″ | 5 | 0.20 | 1 | 0.015 | 0.02 |
| 4 | 5/32″ | 6 | 0.24 | 1 | 0.020 | 0.02 |
| 5 | 3/16″ | 8 | 0.31 | 1.5 | 0.040 | 0.03 |
| 6 | 1/4″ | 9 | 0.35 | 1.5 | 0.045 | 0.04 |
| 7 | 9/32″ | 11 | 0.43 | 2 | 0.070 | 0.05 |
| 8 | 5/16″ | 12 | 0.47 | 2 | 0.080 | 0.06 |
| 10 | 3/8″ | 14 | 0.55 | 2 | 0.095 | 0.07 |
| 12 | 15/32″ | 16 | 0.63 | 2 | 0.110 | 0.08 |
| 14 | 9/16″ | 19 | 0.75 | 2.5 | 0.160 | 0.11 |
| 16 | 5/8″ | 22 | 0.87 | 3 | 0.220 | 0.15 |
| 18 | 23/32″ | 24 | 0.94 | 3 | 0.245 | 0.17 |
| 20 | 13/16″ | 26 | 1.02 | 3 | 0.265 | 0.18 |
| 22 | 7/8″ | 28 | 1.10 | 3 | 0.290 | 0.20 |
| 25 | 1″ | 32 | 1.26 | 3.5 | 0.415 | 0.28 |
