General Purpose Suction & Delivery 10 Bar (150psi) – Alfagomma 202AA

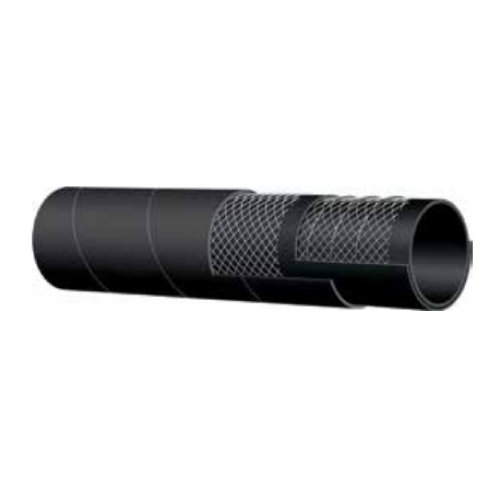

Tube: Black conductive EPDM
Reinforcement: high tensile textile cords with embedded steel helix wire
Cover: Black conductive EPDM – abrasion and ozone resistant
Application: Water suction and delivery. Also suitable for mild chemicals and fertilisers in general industrial and agricultural applications.
Working Pressure: 10 bar / 150 psi
Burst Pressure: 30 bar / 450 psi
Constant Operation: -40°C +100°C (-40°F +212°F) depending on conveyed chemical
| Internal Diameter | Outer Diameter | Wall Thickness | Bend Radius | Vacuum | Weight | ||||
| ID mm | ID inch | OD mm | OD Inch | mm | mm | in | % | kg/m | lb/ft |
| 25 | 1″ | 36 | 1.42 | 5.5 | 100 | 3.94 | 100 | 0.73 | 0.5 |
| 30 | 1 3/16″ | 41 | 1.61 | 5.5 | 120 | 4.72 | 100 | 0.82 | 0.56 |
| 32 | 1 1/4″ | 43 | 1.69 | 5.5 | 128 | 5.04 | 100 | 0.86 | 0.58 |
| 38 | 1 1/2″ | 49 | 1.93 | 5.5 | 152 | 5.98 | 100 | 1 | 0.68 |
| 40 | 1 9/16″ | 51 | 2.01 | 5.5 | 160 | 6.3 | 100 | 1.05 | 0.71 |
| 45 | 1 3/4″ | 56 | 2.20 | 5.5 | 180 | 7.09 | 100 | 1.17 | 0.79 |
| 51 | 2″ | 62 | 2.44 | 5.5 | 204 | 8.03 | 100 | 1.3 | 0.88 |
| 60 | 2 3/8″ | 73 | 2.87 | 6.5 | 240 | 9.45 | 100 | 2 | 1.35 |
| 63 | 2 1/2″ | 76 | 2.99 | 6.5 | 252 | 9.92 | 90 | 2.06 | 1.41 |
| 70 | 2 3/4″ | 83 | 3.27 | 6.5 | 280 | 1.02 | 90 | 2.33 | 1.57 |
| 76 | 3″ | 89 | 3.50 | 6.5 | 304 | 11.97 | 90 | 2.5 | 1.69 |
| 80 | 3 1/8″ | 93 | 3.66 | 6.5 | 320 | 12.60 | 90 | 2.68 | 1.81 |
| 90 | 3 1/2″ | 104 | 4.09 | 7 | 360 | 14.17 | 90 | 3.12 | 2.1 |
| 102 | 4″ | 116 | 4.57 | 7 | 408 | 16.06 | 90 | 3.48 | 2.34 |
| 110 | 4 5/16″ | 124 | 4.88 | 7 | 440 | 17.32 | 80 | 3.71 | 2.5 |
| 115 | 4 1/2″ | 129 | 5.08 | 7 | 460 | 18.11 | 80 | 3.86 | 2.6 |
| 120 | 4 3/4″ | 136 | 5.35 | 8 | 600 | 23.62 | 80 | 5.07 | 3.41 |
| 127 | 5″ | 143 | 5.63 | 8 | 635 | 25 | 80 | 5.33 | 3.59 |
| 152 | 6″ | 168 | 6.61 | 8 | 760 | 29.92 | 80 | 6.66 | 4.48 |
| 203 | 8″ | 221 | 8.70 | 9 | 812 | 31.97 | 70 | 9.88 | 6.64 |
| 254 | 10″ | 272 | 10.71 | 9 | 1270 | 50 | 60 | 13.52 | 9.09 |
