General Purpose Suction & Delivery 10 bar (150 psi) FRAS – Alfagomma 225AA

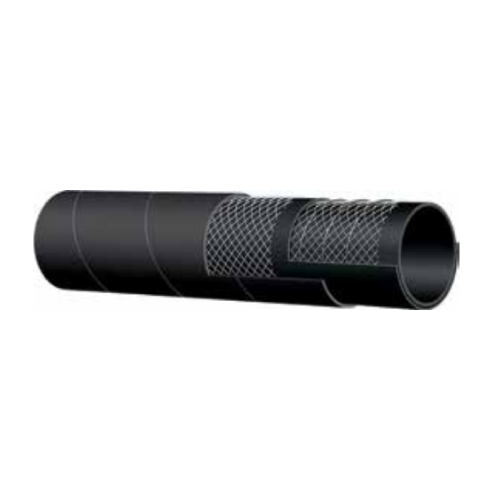

225AA Cross Section

Exceeds AS 2660/C

Tube: Black conductive SBR/NR.
Reinforcement: High tensile textile cords with embedded steel helix wire.
Cover: Black conductive SBR – abrasion, ozone and fire resistant.
Application: Water and stone dust suction and delivery. Also suitable for methane drainage/extraction in underground coal mines.
Constant Operation: -30°C +80°C (-22°F +176°F)

Internal Diameter Outer Diameter Working Pressure Burst Pressure Bend Radius Vacuum Weight
ID mm ID inch OD mm OD Inch bar psi bar psi  mm in  % kg/m lb/ft
51 2″ 62 2.44 10 150 40 600 204 8.03 100 1.31 0.89
76 3″ 89 3.50 10 150 40 600 304 11.97 90 2.69 1.81
102 4″ 116 4.57 10 150 40 600 408 16.06 90 4.08 2.75
152 6″ 170 6.69 10 150 40 600 760 29.92 80 7.35 4.94
