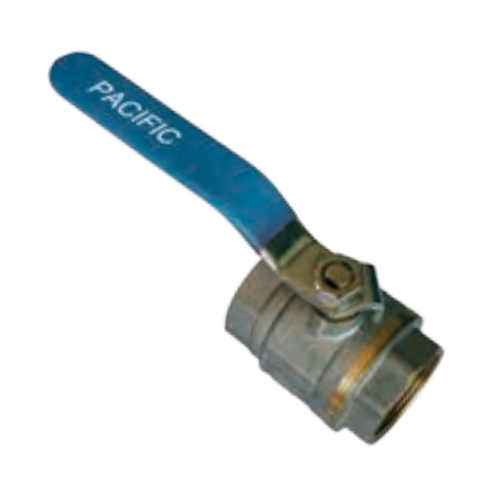

General Purpose Brass Ball Valve – Pacific
Thread: AS1722.2
Max Working Temperature: 150°C
Cold Working Pressure: 2500kPa
Applications – Ideal for hot and cold water (Non-Potable), various oils, chemicals and compressed air.

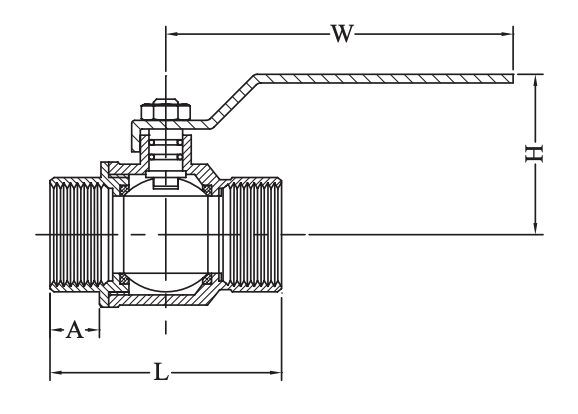

| Imperial Size | L (mm) | H (mm) | W (mm) | A (mm) | Approx. kg/pc |
| 1/2 | 47 | 40.5 | 86 | 11.5 | 0.16 |
| 3/4 | 52.5 | 48.5 | 94 | 12 | 0.22 |
| 1 | 62.5 | 49.5 | 104 | 13.5 | 0.36 |
| 1 1/4 | 73 | 58.5 | 122 | 15 | 0.47 |
| 1 1/2 | 83 | 68 | 152 | 15.5 | 0.83 |
| 2 | 93 | 83.5 | 152 | 16.5 | 1.21 |
| Part | Material |
| Body | Brass (Nickel Plated) |
| Seat Retainer | Brass (Nickel Plated) |
| Seat | P.T.F.E |
| Ball | Brass (Chromium Plated) |
| Stem | Brass |
| Gland | Brass |
| Packing | Viton (Double O-Ring) |
| Lever | Stainless Steel (Plastic Coated) |
| Lever Retaining Nut | Brass (Nickel Plated) |
