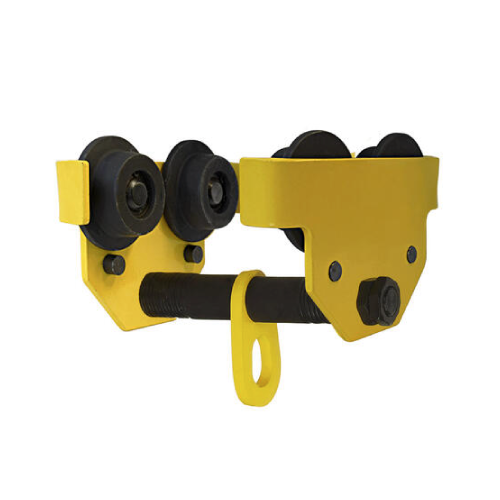

Push Trolley – PT01
Austlift girder trolley is moved by pushing the load lifted by the trolley, running along the flange of a monorail. A main shaft with spacers you can adjust the width of UC beam. They are widely used in factories, mines, wharves, docks, warehouses and engineering workshops for installation of equipment in places where no power supply is available.
- High quality sealed ball bearings.
- Identification tag with serial number.
- Fitted with anti drop plates for safety. Low headroom by design.
- Suitable for I beam (UC Beam)

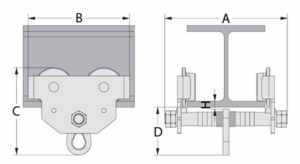

| Code | WLL | Beam Size | Min Radius of Curve | Weight | Dimensions | ||||
| t | mm | m | kg | A | B | C | D | H | |
| 131005 | 0.5 | 64-140 | 0.8 | 5.5 | 228 | 196 | 192 | 117 | 25 |
| 131010 | 1 | 64-203 | 0.9 | 8.9 | 306 | 236 | 211 | 120 | 19 |
| 131015 | 2 | 76-210 | 1.0 | 10.7 | 318 | 273 | 236 | 160 | 22 |
| 131020 | 3 | 100-305 | 1.2 | 24.3 | 436 | 320 | 295 | 166 | 32 |
| 131025 | 5 | 100-305 | 1.3 | 36.3 | 454 | 366 | 333 | 186 | 38 |
| 131030 | 10 | 125-305 | 2.0 | 83.3 | 486 | 456 | 421 | 250 | 35 |
