Galvanised U-Bars Heavy Duty Steel
- Heavy duty 5mm thick wall.
- Three standard lengths.
- Flexible modular design.
- All models are galvanised and powder coated or galvanised only.
- Surface mount and below ground models.
- Easy on site assembly with fixings supplied.

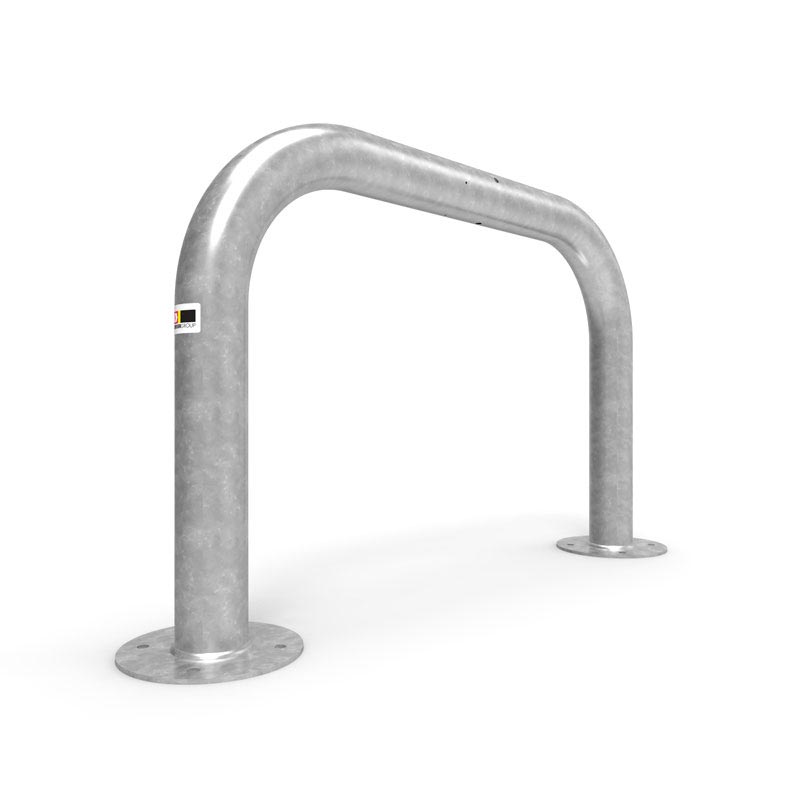

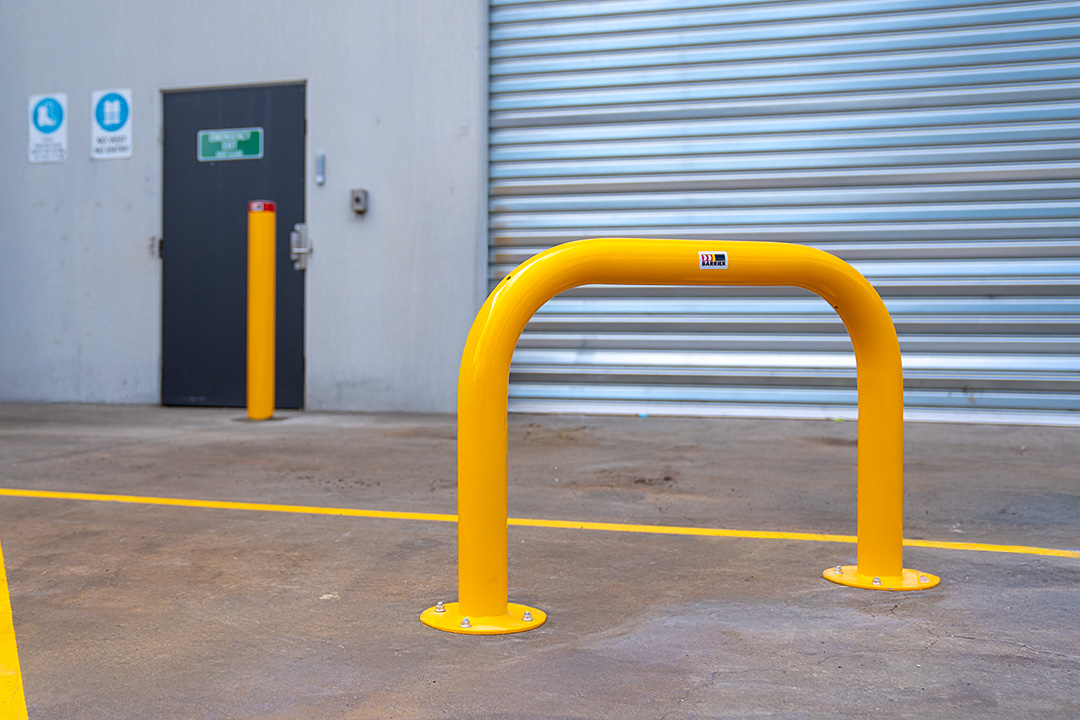

The heavy duty U-Bars are manufactured from heavy wall steel tube 90mm in diameter and hot dip galvanised. Powder coating in a colour of choice is optional. There are two styles, surface mount and below ground, with each style being available in three sizes for a total of six standard options. Surface mount models are fixed at 700mm above ground, while the height of below ground models can be regulated simply by embedding them more or less into their concrete footings.
| Code | Description | Post Diameter | Overall Width | Height Above Ground | Depth Below Ground | Wall Thickness | Base Plate Diameter | Base Plate Thickness | Weight | Finish |
| UB100SM | U-Bar Heavy Duty 1m Surface Mounted – Galvanised and Powder Coated | 90 mm | 1000 mm | 700 mm | – | 5 mm | 225 mm | 6 mm | 31 kg | HDG+PC |
| UB100BG | U-Bar Heavy Duty 1m Below Ground – Galvanised and Powder Coated | 90 mm | 1000 mm | 700 mm | 500 mm | 5 mm | – | – | 31 kg | HDG+PC |
| UB100SM-G | U-Bar Heavy Duty 1m Surface Mounted – Galvanised | 90 mm | 1000 mm | 700 mm | – | 5 mm | 225 mm | 6 mm | 31 kg | HDG |
| UB100BG-G | U-Bar Heavy Duty 1m Below Ground – Galvanised | 90 mm | 1000 mm | 700 mm | 500 mm | 5 mm | – | – | 31 kg | HDG |
| UB150SM | U-Bar Heavy Duty 1.5m Surface Mounted – Galvanised and Powder Coated | 90 mm | 1500 mm | 700 mm | – | 5 mm | 225 mm | 6 mm | 36 kg | HDG+PC |
| UB150BG | U-Bar Heavy Duty 1.5m Below Ground – Galvanised and Powder Coated | 90 mm | 1500 mm | 700 mm | 500 mm | 5 mm | – | – | 36 kg | HDG+PC |
| UB150SM-G | U-Bar Heavy Duty 1.5m Surface Mounted – Galvanised | 90 mm | 1500 mm | 700 mm | – | 5 mm | 225 mm | 6 mm | 36 kg | HDG |
| UB150BG-G | U-Bar Heavy Duty 1.5m Below Ground – Galvanised | 90 mm | 1500 mm | 700 mm | 500 mm | 5 mm | – | – | 36 kg | HDG |
| UB200SM | U-Bar Heavy Duty 2m Surface Mounted – Galvanised and Powder Coated | 90 mm | 2000 mm | 700 mm | – | 5 mm | 225 mm | 6 mm | 41 kg | HDG+PC |
| UB200BG | U-Bar Heavy Duty 2m Below Ground – Galvanised and Powder Coated | 90 mm | 2000 mm | 700 mm | 500 mm | 5 mm | – | – | 41 kg | HDG+PC |
| UB200SM-G | U-Bar Heavy Duty 2m Surface Mounted – Galvanised | 90 mm | 2000 mm | 700 mm | – | 5 mm | 225 mm | 6 mm | 41 kg | HDG |
| UB200BG-G | U-Bar Heavy Duty 2m Below Ground – Galvanised | 90 mm | 2000 mm | 700 mm | 500 mm | 5 mm | – | – | 41 kg | HDG |
