Galvanised U-Bars Double Rail Steel
- Three sizes available in below ground or surface mount models.
- Heavy 3mm wall, 48.3mm diameter pipe.
- Fully welded one-piece construction.
- All models are galvanised and powder coated or galvanised only.
- Supplied ready for installation with no assembly required.

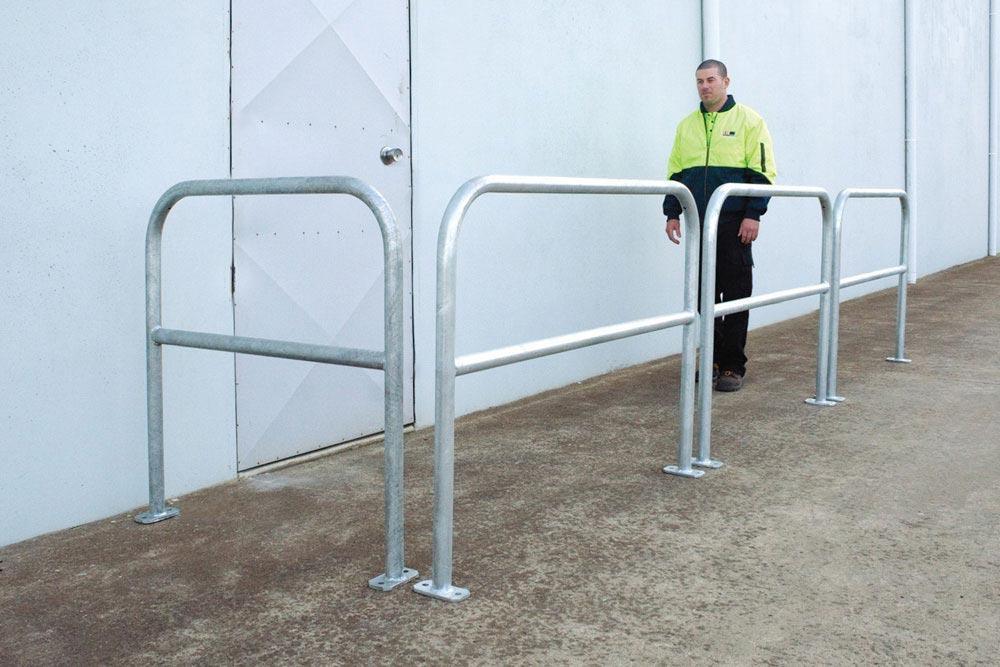

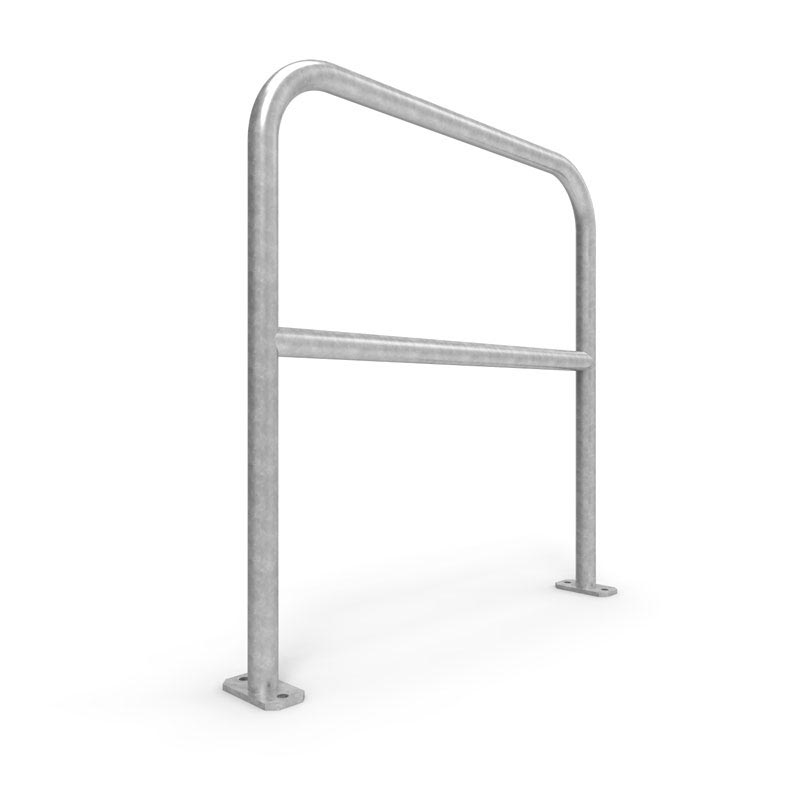

A modular one-piece design U-bar barrier with fully welded knee rail. Suitable for pedestrian barriers at crossing points or traffic management in and around factory/warehouse areas.
Manufactured from 3mm wall steel pipe 48mm in diameter and hot dip galvanised as standard. Available in either surface mount or below ground models. All models stand 1051mm high above ground with a fully welded knee rail at 570mm high.
Ideal for schools, shopping centres, walkways or warehouses. The fully welded and galvanised one-piece construction makes installation a quick and simple operation. No assembly required.
| Code | Description | Post Diameter | Overall Width | Height Above Ground | Depth Below Ground | Wall Thickness | Base Plate Diameter | Base Plate Thickness | Weight | Finish |
| UBD100BG-G | U-Bar Double Rail 1m Below Ground – Galvanised | 48.3 mm | 1000 mm | 1040 mm | – | 3 mm | 150 x 75 mm | 10 mm | 16 mm | HDG+PC |
| UBD100BG | U-Bar Double Rail 1m Below Ground – Galvanised and Powder Coated | 48.3 mm | 1000 mm | 1051 mm | 280 mm | 3 mm | – | – | 16 mm | HDG+PC |
| UBD100SM-G | U-Bar Double Rail 1m Surface Mounted – Galvanised | 48.3 mm | 1000 mm | 1040 mm | – | 3 mm | 150 x 75 mm | 10 mm | 16 mm | HDG |
| UBD100SM | U-Bar Double Rail 1m Surface Mounted – Galvanised and Powder Coated | 48.3 mm | 1000 mm | 1040 mm | 300 mm | 3 mm | – | – | 16 mm | HDG |
| UBD150BG-G | U-Bar Double Rail 1.5m Below Ground – Galvanised | 48.3 mm | 1500 mm | 1040 mm | – | 3 mm | 150 x 75 mm | 10 mm | 19.5 mm | HDG+PC |
| UBD150BG | U-Bar Double Rail 1.5m Below Ground – Galvanised and Powder Coated | 48.3 mm | 1500 mm | 1040 mm | 300 mm | 3 mm | – | – | 19.5 mm | HDG+PC |
| UBD150SM-G | U-Bar Double Rail 1.5m Surface Mounted – Galvanised | 48.3 mm | 1500 mm | 1040 mm | – | 3 mm | 150 x 75 mm | 10 mm | 19.5 mm | HDG |
| UBD150SM | U-Bar Double Rail 1.5m Surface Mounted – Galvanised and Powder Coated | 48.3 mm | 1500 mm | 1040 mm | 300 mm | 3 mm | – | – | 19.5mm | HDG |
| UBD200BG-G | U-Bar Double Rail 2m Below Ground – Galvanised | 48.3 mm | 2000 mm | 1040 mm | – | 3 mm | 150 x 75 mm | 10 mm | 23.5 mm | HDG+PC |
| UBD200BG | U-Bar Double Rail 2m Below Ground – Galvanised and Powder Coated | 48.3 mm | 2000 mm | 1040 mm | 300 mm | 3 mm | – | – | 23.5 mm | HDG+PC |
| UBD200SM-G | U-Bar Double Rail 2m Surface Mounted – Galvanised | 48.3 mm | 2000 mm | 1040 mm | – | 3 mm | 150 x 75 mm | 10 mm | 23.5 mm | HDG |
| UBD200SM | U-Bar Double Rail 2m Surface Mounted – Galvanised and Powder Coated | 48.3 mm | 2000 mm | 1040 mm | 300 mm | 3 mm | – | – | 23.5 mm | HDG |
