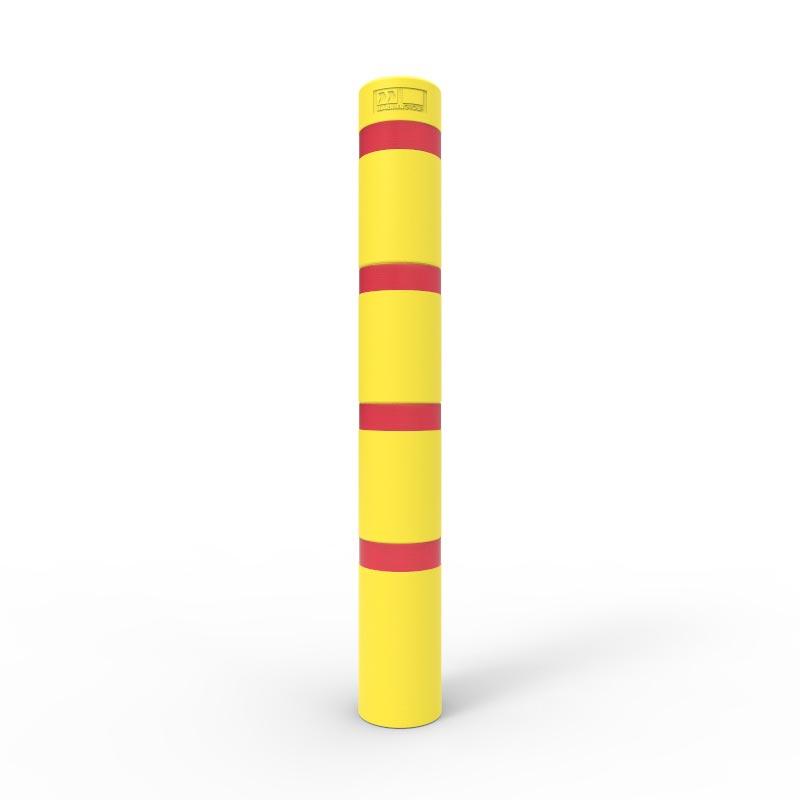

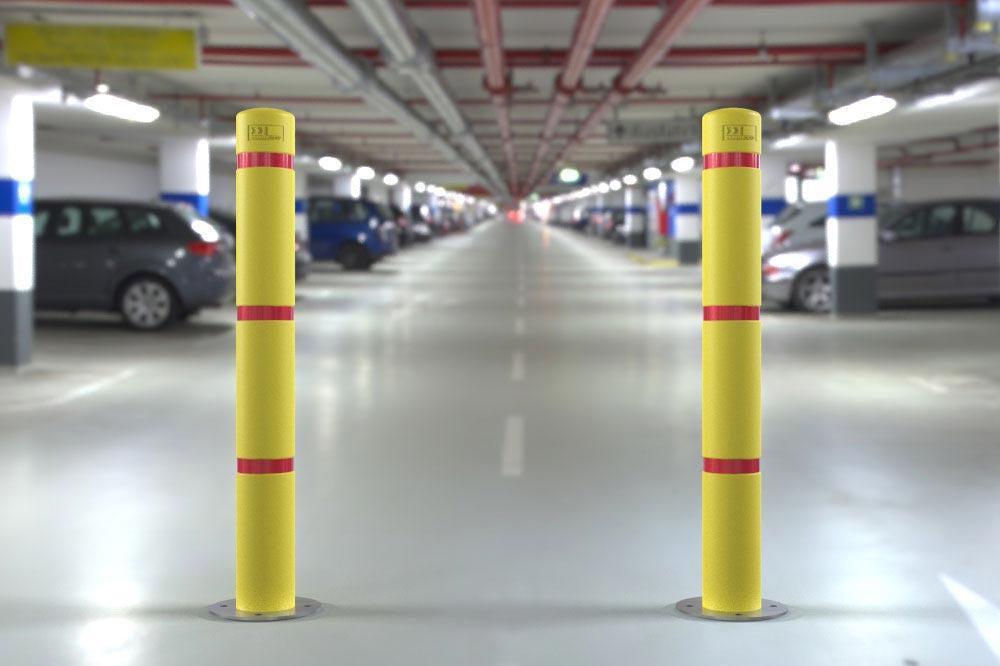

Gal-Plus Bollards Heavy Duty Steel with Skinz

Gal-Plus Bollards Heavy Duty Steel with Skinz
Gal-Plus Bollards Heavy Duty Steel with Skinz - Image 2
  • Soft protection for light vehicle impacts in shopping centre carparks that you don’t get with plain steel bollards
  • Cheaper to install than preparing and painting existing damaged bollards
  • Long term consistency in quality and appearance
  • 3mm wall thickness for ultimate impact protection
  • Can be retrofitted to any brand of bollard from 90 to 220mm diameter
  • Yellow Skinz supplied as standard, other colours available on request (minimum quantities apply)
  • Protects both vehicles and structures from expensive damage
  • Reflective tape kits can be purchased separately

For around the same price as powder coated models, you can install hot dip galvanised steel bollards fitted with Skinz bollard covers reducing the need for paint and future maintenance costs.

Bollards fitted with plastic sleeves are ideal for congested car parks as they can reduce the impact damage caused to vehicles and bollards when they come into contact with each other. Likewise in shopping centres, maintenance to damaged bollards caused by shopping trolleys can be virtually eliminated.

Skinz sleeves have three grooves designed into the bollard cover that allows reflective tape to lay flush against the sleeve, greatly reducing the chances of the tape peeling.

Code Description Bollard Diameter Height Above Ground Depth Below Ground Wall Thickness + 3 mm Skinz Base Plate Diameter Base Plate Thickness Weight Finish
C90BG-SKZY Bollard 90mm Below Ground with Skinz Bollard Sleeve – Safety Yellow 90 mm 1200 mm – 5 mm 225 mm 6 mm 11.3 kg HDG+PS
C90SM-SKZY Bollard 90mm Surface Mounted with Skinz Bollard Sleeve – Safety Yellow 90 mm 1200 mm 380 mm 5 mm – – 13.5 kg HDG+PS
C140BG-SKZY Bollard 140mm Below Ground with Skinz Bollard Sleeve – Safety Yellow 140 mm 1400 mm – 5 mm 300 mm 10 mm 25.4 kg HDG+PS
C140SM-SKZY Bollard 140mm Surface Mounted with Skinz Bollard Sleeve – Safety Yellow 140 mm 1400 mm 500 mm 5 mm – – 29.7 kg HDG+PS
C165BG-SKZY Bollard 165mm Below Ground with Skinz Bollard Sleeve – Safety Yellow 165 mm 1600 mm – 5 mm 350 mm 10 mm 34.7 kg HDG+PS
C165SM-SKZY Bollard 165mm Surface Mounted with Skinz Bollard Sleeve – Safety Yellow 165 mm 1600 mm 650 mm 5 mm – – 40.5 kg HDG+PS
C220BG-SKZY Bollard 220mm Below Ground with Skinz Bollard Sleeve – Safety Yellow 220 mm 1600 mm – 6.4 mm 400 mm 12 mm 49.2 kg HDG+PS
C220SM-SKZY Bollard 220mm Surface Mounted with Skinz Bollard Sleeve – Safety Yellow 220 mm 1600 mm 650 mm 6.4 mm – – 66.9 kg HDG+PS

Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) and Polyethylene Skinz (PS). *Refers to the diameter of the actual bollard. Skinz sleeve may add up to 20mm in dia.
