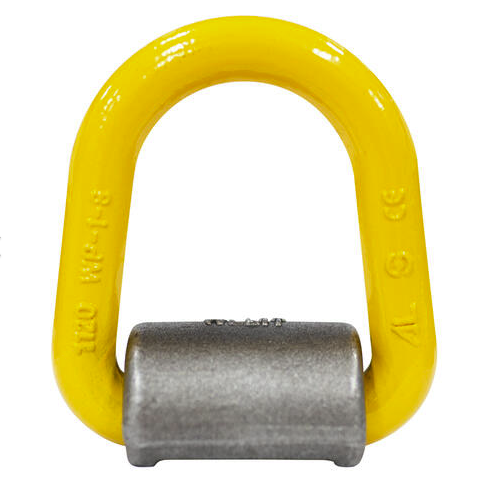

G80 Weld-On Lifting Point
Austlift WP Type Weld on Lifting Points can be welded on any carbon steel surface as a lifting point, or to be used as a fixed anchor point for spreader beam attachment.
Can also be used as an anchor point for load restraint applications.
- Marked with work load limit, product ID,grade with manufacture quality mark
- Manufactured from treated alloy steel with safety factor of 4:1
- Conforms to AS3776
- Welding instructions supplied with each unit

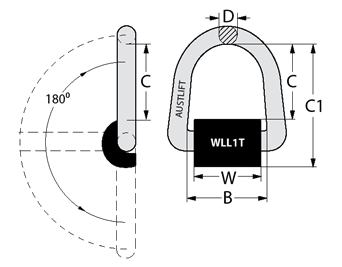

| CODE | WLL | Wt. | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|
| tonne | kg | B | D | C | C1 | W | |
| 104001 | 1 | 0.55 | 55 | 14 | 35 | 95.7 | 50 |
| 104003 | 3 | 0.9 | 64 | 17 | 50 | 99 | 58 |
| 104005 | 5 | 1.8 | 70 | 22 | 70 | 137 | 64 |
| 104008 | 8 | 2.5 | 69 | 26.5 | 86 | 144 | 66.5 |
