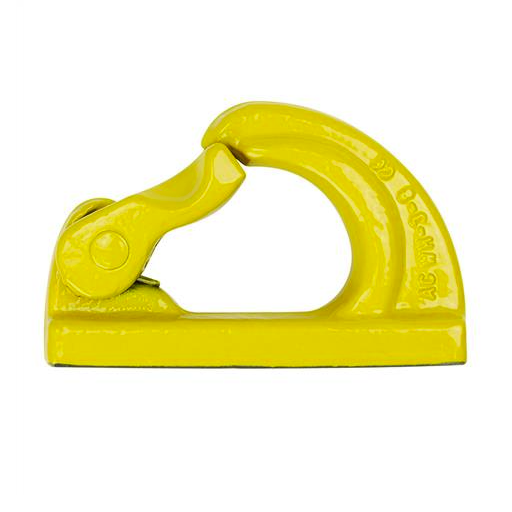

G80 Weld-On Hook
WH type Weld-on Hooks are a versatile hook for lifting and spreader beam attachment applications.
They can also be used for any fixed anchor point after welding the hook on.
- Marked with work load limit, grade with manufacture quality mark.
- Made from G80 alloy steel with safety factor of 4:1
- Conforms to AS3776, Test Certificates available upon request.
- Welding instructions supplied with each unit
| CODE | WLL | Wt. | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|
| tonne | kg | B | E | L | F | M | |
| 103801 | 1.1 | 0.32 | 53 | 18 | 80 | 18 | 10.5 |
| 103802 | 2 | 0.55 | 63.5 | 26 | 112 | 34 | 13.5 |
| 103803 | 3.2 | 0.87 | 75 | 30 | 127.5 | 36 | 17 |
| 103805 | 5.3 | 1.75 | 92.5 | 35 | 160 | 43.5 | 20 |
| 103808 | 8 | 3.2 | 106 | 40 | 180 | 51 | 25 |
| 103812 | 12.5 | 6.16 | 140 | 51 | 236 | 58 | 31 |
