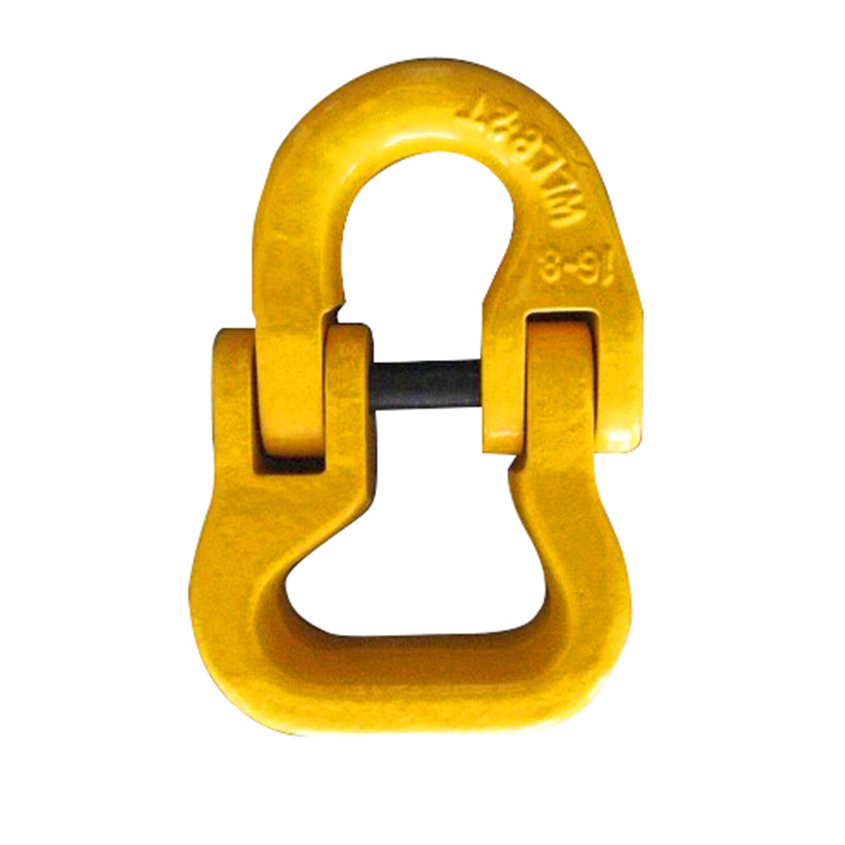

G80 Webbing Sling Connectors
Austlift webbing sling connectors are commonly used to connect webbing slings.
- Marked with chain sizes, batch number, grade and Austlift branded with manufacture quality mark
- Batch tested, test certificates available upon request
- Fatigue tested >20000 times

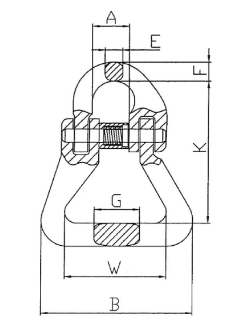

| CODE | CHAIN SIZE | WLL | Wt. | MBF | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | t | A | B | K | W | G | E | F | |
| 104208 | 7/8 | 2.0 | 0.3 | 8 | 20 | 61.5 | 64 | 38 | 24 | 8.5 | 9 |
| 104210 | 10 | 3.2 | 0.53 | 12.6 | 24 | 75 | 86 | 45 | 30.5 | 11 | 12 |
| 104213 | 13 | 5.3 | 1.03 | 21.2 | 28.5 | 88 | 94 | 51 | 36.8 | 16.5 | 16.5 |
| 104216 | 16 | 8 | 1.87 | 32 | 35 | 108 | 122 | 63 | 45.2 | 19.8 | 20 |
| 104220 | 20 | 12.5 | 2.97 | 50 | 41 | 129 | 138 | 77 | 51.8 | 23 | 23 |
| 104222 | 22 | 15 | 6.4 | 60 | 49.5 | 191 | 180 | 12.3 | 70 | 26 | 26 |
