G80 Sling Hook – Eye Type
SE Type Eye Sling Hooks are a general purpose hook suitable for most slinging applications. They come with heavy duty latch for added safety. Eye allows easy connection to coup links and can be attached to lifting apparatus.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
- Manufactured from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.

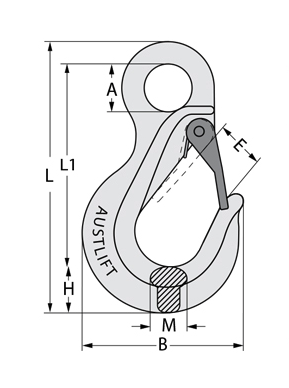

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | E | H | M | L | L1 | |
| 103006 | 6 | 1.12 | 0.3 | 20 | 74 | 22 | 20.5 | 18 | 122 | 92 |
| 103008 | 7/8 | 2 | 0.5 | 25.5 | 83 | 26 | 23.5 | 18 | 138.5 | 103 |
| 103010 | 10 | 3.2 | 0.8 | 32.5 | 107 | 34 | 30 | 20 | 176.5 | 133 |
| 103013 | 13 | 5.3 | 1.9 | 39.5 | 134.3 | 41 | 37.5 | 29.5 | 218 | 162 |
| 103016 | 16 | 8 | 3.4 | 50 | 157.5 | 44 | 42.5 | 34 | 260 | 192 |
| 103020 | 18/20 | 12.5 | 5.3 | 60 | 189 | 52 | 53 | 44 | 310 | 230 |
| 103022 | 22 | 15 | 8.9 | 68 | 239 | 60 | 74 | 50 | 375.5 | 269 |
| 103026 | 26 | 21.2 | 13.4 | 75 | 245 | 71 | 83 | 63 | 412 | 303 |
| 103032 | 32 | 31.5 | 17 | 88 | 250 | 102 | 95 | 76 | 446 | 340 |
