G80 Sling Hook – Clevis Type
SC Type Clevis Sling Hooks are a general purpose hook suitable for most slinging applications. They come with cast latch for added safety. Clevis allows easy connection to Chain.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
- Manufactured from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.

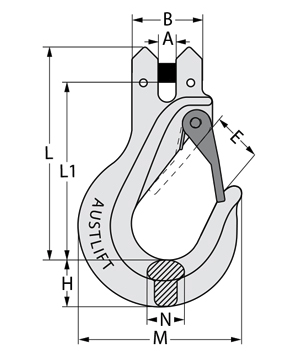

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | E | N | H | L | L1 | M | |
| 102906 | 6 | 1.12 | 0.32 | 7.5 | 32 | 22 | 18 | 20.5 | 121 | 85 | 74 |
| 102908 | 7/8 | 2 | 0.48 | 9 | 36 | 25.5 | 18 | 23.5 | 137 | 94 | 83 |
| 102910 | 10 | 3.2 | 0.95 | 12 | 46 | 34 | 20 | 30 | 175.5 | 120 | 107 |
| 102913 | 13 | 5.3 | 1.8 | 15 | 59 | 41.5 | 29.5 | 37.5 | 210.5 | 145 | 134 |
| 102916 | 16 | 8 | 3.4 | 17.5 | 70 | 46 | 34 | 42.5 | 248.6 | 170 | 157 |
| 102920 | 18/20 | 12.5 | 6 | 23 | 80 | 52 | 45 | 54 | 309 | 216 | 189 |
| 102922 | 22 | 15 | 10.1 | 25.5 | 98 | 60 | 48 | 76 | 375.5 | 252 | 238 |
