G80 Claw Hook with Safety Pin – Clevis Type

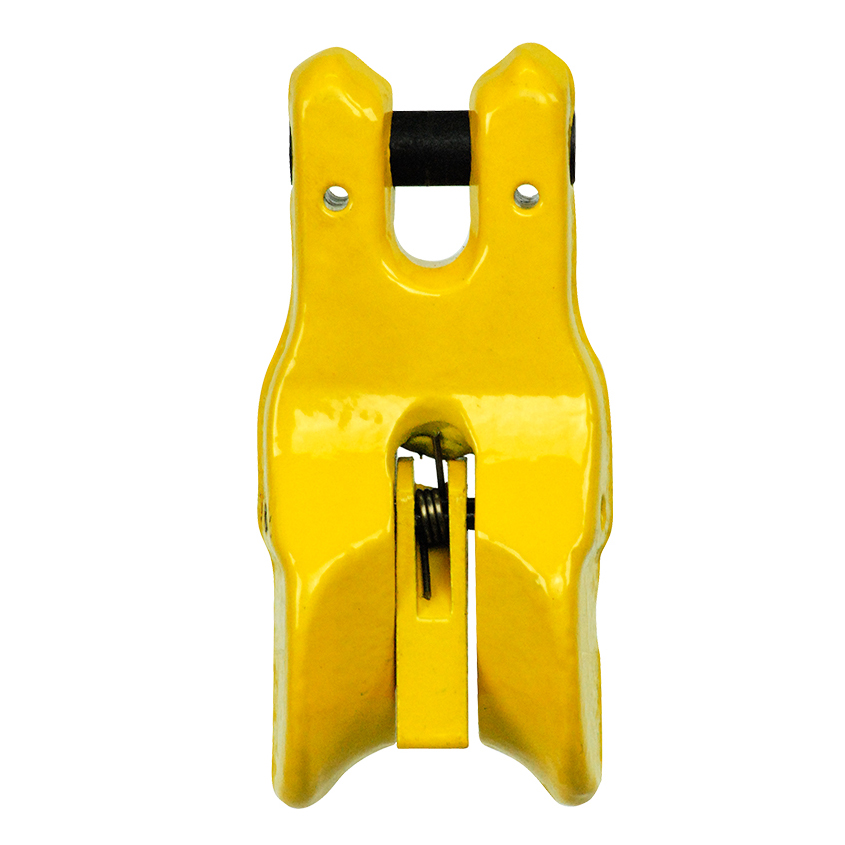

G80 Claw Hook with Safety Pin - Clevis Type

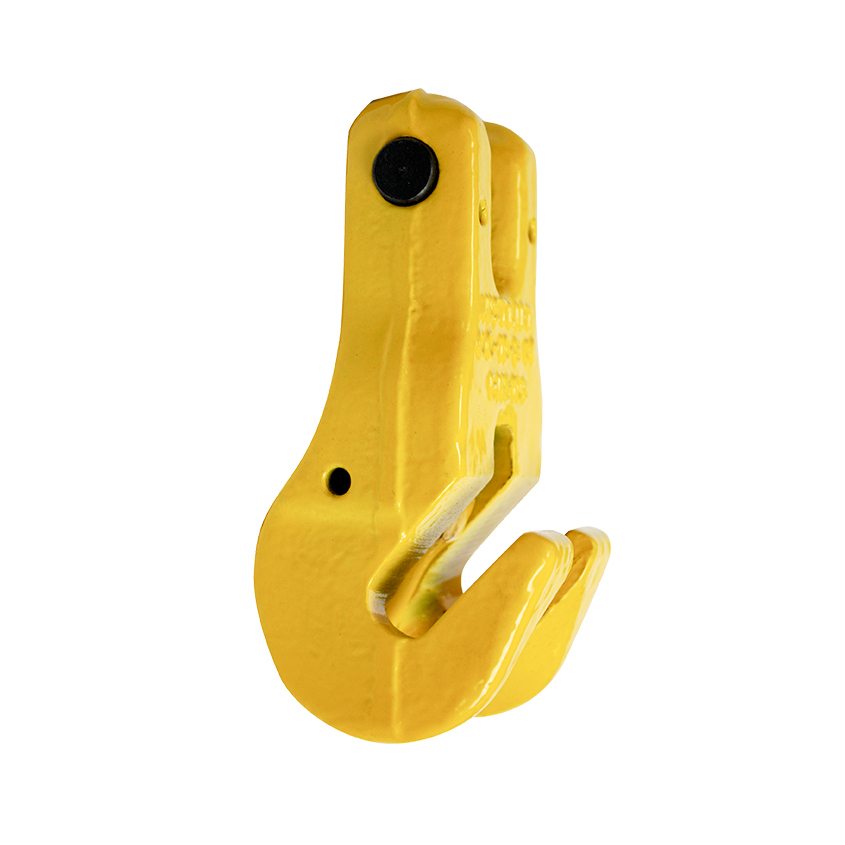

G80 Claw Hook with Safety Pin - Clevis Type - Image 2
G80 Claw Hook with Safety Pin - Clevis Type - Image 3

Austlift CCL type lockable clutches have the advantage of shortening a chain sling without the loss of the working load limit. The clevis allows easy connection to chain with the added safety of a chain locking device to prevent the chain to dislodge from the hook.

  • Marked with sizes, batch number, grade and Austlift branded with manufacture quality mark
  • Safety factor of 4 to 1. Batch tested, test certificates available upon request.
  • Fatigue tested >20000

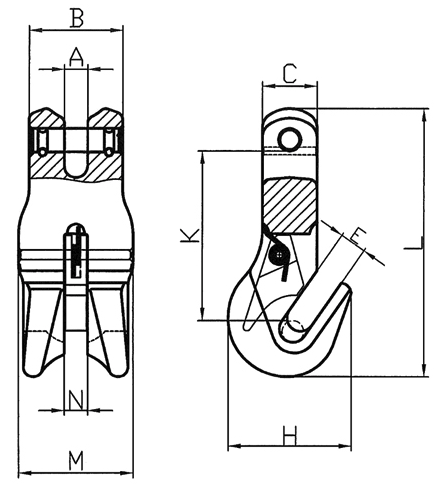

Code Size WLL Wt Dimensions (mm)
mm Tonne kg A
 M
 N B C E H L K Ø L’
102138 8 2 0.9 9.5 46.5 9.5 38 22.2 11 50 109 69 9.5 36
102140 10 3.2 0.99 12.5 56 12 44.5 25.5 14 58 121 73 11.8 44
