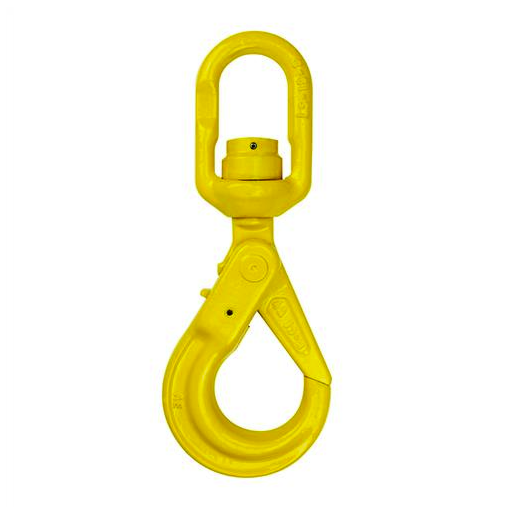

G80 Self Locking Hook – Swivel Type
LS Type Swivel Self-Locking hook have a ball bearing swivel to allow the hook to swivel under load thus reducing the twist of a sling. Designed with enlarged eye for passing larger Shackles without disassemble of the hook.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
- Ball bearing swivel allows the hook to rotate under full load.
- Manufactured from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.
- Spare Trigger Kits and Swivel Bow head are available.

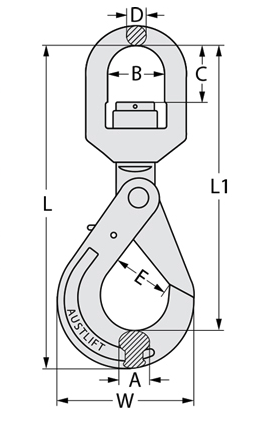

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | A | B | C | D | E | L1 | L | W | |
| 102406 | 6 | 1.12 | 0.74 | 15 | 32 | 38 | 11.5 | 27 | 161 | 196 | 69.7 |
| 102408 | 7/8 | 2 | 1.23 | 20 | 36 | 45 | 13 | 35 | 205 | 240 | 88 |
| 102410 | 10 | 3.15 | 2.04 | 26 | 42 | 54 | 15.5 | 45 | 241 | 284 | 107.7 |
| 102413 | 13 | 5.3 | 3.76 | 33 | 50 | 62 | 17 | 54 | 267 | 323 | 137 |
| 102416 | 16 | 8 | 7.3 | 38 | 61 | 67.5 | 21.5 | 59 | 347 | 420 | 165.5 |
| 102420 | 20 | 12.5 | 11.6 | 50 | 76 | 73 | 26.5 | 85 | 395 | 479 | 185 |
