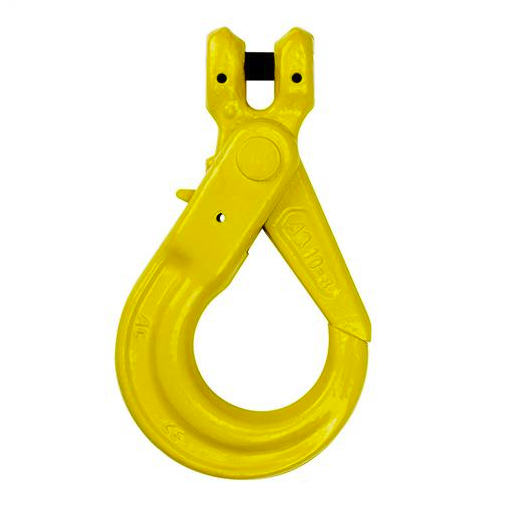

G80 Self Locking Hook – Clevis Type
LC Type Clevis Self-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the trigger at the back is pressed. The clevis style allows easy connection to the Chain.
- Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
- Manufactured from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request.
- Conforms to AS3776.
- Spare Trigger Kits and Load Pins are available

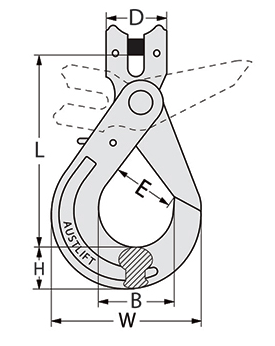

| CODE | CHAIN SIZE | WLL | Wt. | DIMENSIONS (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| mm | tonne | kg | B | D | E | L | H | W | |
| 102206 | 6 | 1.1 | 0.5 | 34 | 32 | 28 | 96 | 20 | 69 |
| 102208 | 7/8 | 2 | 0.8 | 46 | 36 | 36 | 118.5 | 24 | 88 |
| 102210 | 10 | 3.2 | 1.5 | 58 | 46 | 45 | 144 | 28 | 107 |
| 102213 | 13 | 5.3 | 2.8 | 69 | 59 | 50 | 181.5 | 39.5 | 138 |
| 102216 | 16 | 8 | 5.6 | 86 | 70 | 60 | 216 | 50.5 | 182 |
| 102220 | 18/20 | 12.5 | 7.5 | 92 | 81 | 72 | 238 | 62 | 204 |
| 102222 | 22 | 15 | 11.5 | 98 | 98 | 78 | 276 | 65 | 205 |
| 102226 | 26 | 21.2 | 18.5 | 110 | 118 | 106 | 311 | 74.5 | 240 |
