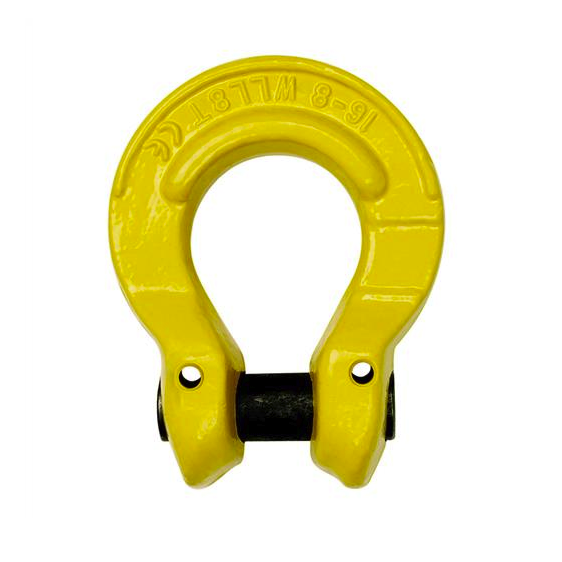

G80 Omega Link – OL Type
Austlift OL Type Omega Links are commonly used in conjunction with recessed Head Rings and Chain for Chain Slings.
They are also a popular fitting for variable type slings.
- Marked with Chain size, grade and Austlift branded with manufacture quality mark.
- Made from G80 alloy steel with a safety factor of 4 to 1.
- Test Certificates available upon request. Conforms to AS3776.
| Code | Size | WLL | Wt | Dimensions (mm) | ||||
| mm | Tonne | kg | A |
B |
C |
D |
W |
|
| 104106 | 6 | 1.12 | 0.12 | 8 | 20.5 | 25 | 12 | 41 |
| 104108 | 8 | 2 | 0.22 | 10 | 23.5 | 35 | 16 | 52 |
| 104110 | 10 | 3.15 | 0.36 | 12 | 31.5 | 40.5 | 17 | 62 |
| 104113 | 13 | 5.3 | 0.71 | 15 | 41 | 54 | 20 | 81 |
| 104116 | 16 | 8 | 1.3 | 19 | 49.5 | 64 | 26 | 99 |
