G80 Multi Master Link

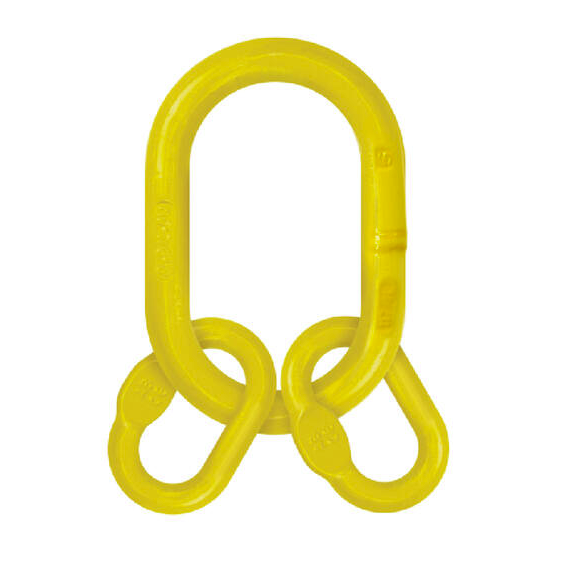

MD Type Multi Head Rings are designed as a large ring with two intermediate links to cater for two three and four leg Chain Sling or Wire Rope Sling applications.
- Marked with Chain size, product ID, grade with manufacture quality mark.
- Manufactured from G80 alloy steel, safety factor 4 to 1 for Chain Sling , 5 to 1 for Wire Rope Sling.
- Test Certificates available upon request.
- Conforms to AS3776.
| CODE | SIZE | WLL (T) | Wt. | DIMENSIONS (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | 0°-45° | 45°-60° | kg | A | B | D | a | b | d | |
| 101206 | 6 | 2.36 | 1.9 | 1.18 | 135 | 75 | 18 | 54 | 25 | 13 |
| 101208 | 7/8 | 4.25 | 3.5 | 2.2 | 160 | 90 | 22 | 70 | 34 | 16 |
| 101210 | 10 | 6.7 | 5.5 | 3.4 | 180 | 100 | 26 | 85 | 40 | 18 |
| 101213 | 13 | 11.2 | 9.2 | 6.1 | 200 | 110 | 32 | 115 | 50 | 22 |
| 101216 | 16 | 17 | 13.8 | 9.98 | 260 | 140 | 36 | 140 | 65 | 26 |
| 101220 | 20 | 26.5 | 21.6 | 22.5 | 350 | 190 | 50 | 180 | 100 | 32 |
| 101222 | 22 | 31.5 | 26 | 25.2 | 350 | 190 | 50 | 180 | 100 | 36 |
| 101226 | 26 | 45 | 36.9 | 36.3 | 406 | 203 | 57 | 180 | 100 | 40 |
| 101232 | 32 | 67 | 54.94 | 66.46 | 460 | 250 | 72 | 200 | 110 | 50 |
