G80 Lifting Chain
Grade 80 Chain is designed for Chain Slings for industrial lifting applications.
It is made from alloy steel, hardened and tempered.
It has a high resistance to impact and meets critical requirements of AS2321 “Short link Chain for lifting purposes”.
- Made in Kettenfabrik Chain manufacture in Germany with Admission (H34)
- Sizes available from 6mm to 32mm.
- Marked with Chain grade with traceability mark.
- Made from G80 alloy steel with safety factor of 4 to 1
- Test Certificates available upon request.
- Conforms to AS2321.

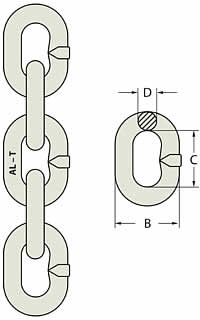

| Size | WLL | Drum | Cut Length (1m) | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|---|
| (mm) | (T) | Code | Wt. (kg) | Length (m) | Code | Wt. (kg/m) | A (mm) | B (mm) | C (mm) |
| 6.3 | 1.12 | 101506 | 500 | 600 | 101406 | 0.84 | 21 | 18 | 6 |
| 7.1 | 1.5 | 101507 | 500 | 500 | 101407 | 1.14 | 24 | 21 | 7 |
| 8 | 2 | 101508(Y) | 500 | 350 | 101408(Y) | 1.41 | 28 | 24 | 8 |
| 110 | 3.2 | 101510(Y) | 500 | 225 | 101410(Y) | 2.21 | 35 | 30 | 10 |
| 13 | 5.3 | 101513(Y) | 500 | 135 | 101413(Y) | 3.76 | 46 | 39 | 13 |
| 16 | 8 | 101516 | 500 | 89 | 101416 | 5.64 | 57 | 48 | 16 |
| 20 | 12.5 | 101520 | 500 | 60 | 101420 | 8.6 | 70 | 60 | 20 |
| 22 | 15 | 101522 | 500 | 50 | 101422 | 10.7 | 78 | 66 | 22 |
| 26 | 21.2 | 101526* | 760 | 40 | 101426 | 14.8 | 91 | 78 | 26 |
| 32 | 31.5 | 101532* | 559 | 30 | 101432 | 21.6 | 115 | 96 | 32 |

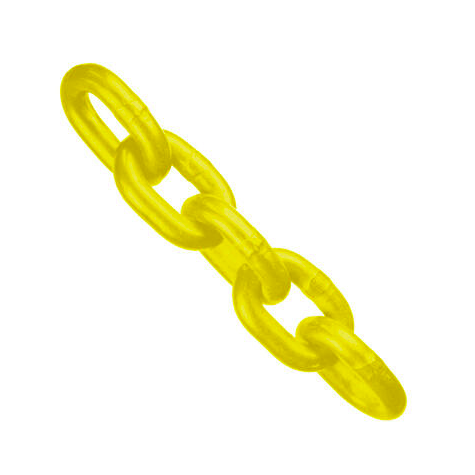

(Y) 8mm, 10mm, 13mm Yellow colour powder coated available.
* Package size changes as to our supplier.
